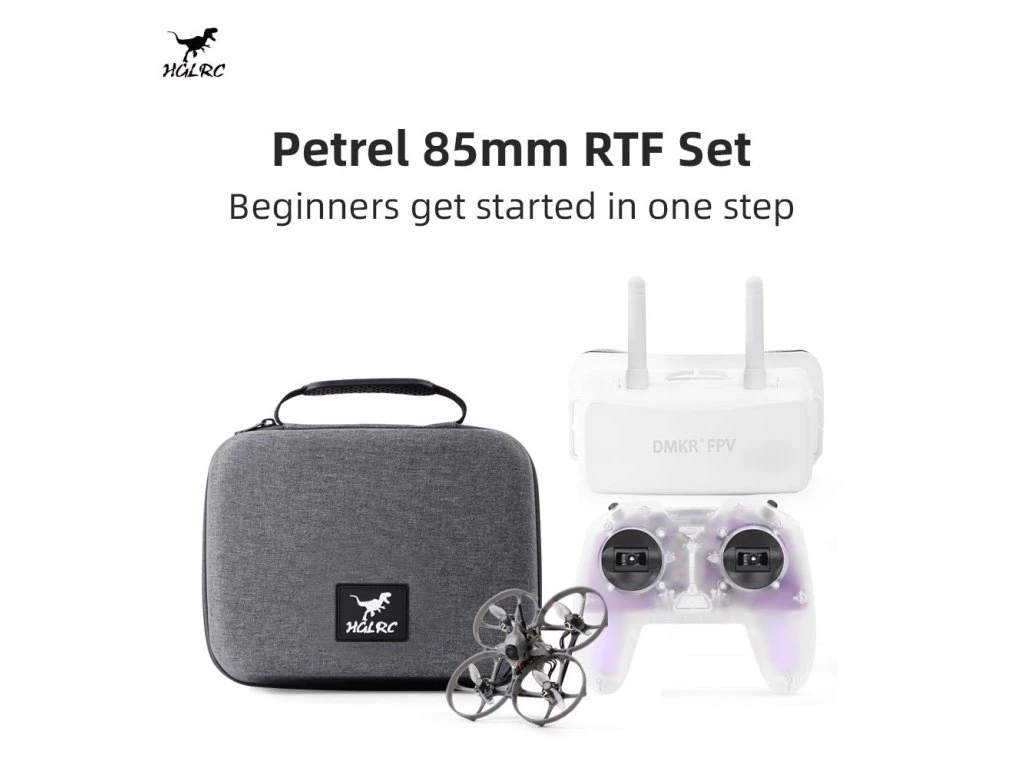

FPV Drone HGLRC Petrel 85Whoop Entry-level RTF Set
FPV Drone HGLRC Petrel 85Whoop Entry-level RTF Set
Frame: Petrel 85Whoop frame
Flight Control: SPECTER 10A AIO
MCU: STM32F411
GYRO: ICM42688
Built-in Video Transmission:
0-RCE-25-100-400mW (adjustable)
Onboard ESC:
Continuous Current: 10A
Peak Current: 13A (10s)
ESC Protocol: Dshot600, Oneshot, Multishot
ESC Firmware: Z_H_30/(Bluejay)
Flight Control Firmware:
HGLRCF411SX1280 V2
Flight Control Input Voltage:
3.7v-7.4v (Lipo)
Installation Hole Position: 25.5X25.5mm, M2
Motor: SPECTER 1202.5 11000kv
Propeller: Gemfan 2015 two-blade
ELRS Version Weight: 48+1g
Dongle Parameters:
Built-in ELRS:
Maximum Supported Frequency: 250Hz
Receiving Distance: More than 200m
Binding Method:
Quickly power on and off three times to enter binding mode
Interface: USB TYPE-C + USB TYPE-A double plug
Working Voltage: 5v
ELRS Firmware Upgrade Method:
WIFI or USB plug
ELRS Firmware Version: ELRS 3.0
ELRS Firmware Name: HGLRC 2.4 GHz, HGLRC Hermes 2.4GHz RX
External Receiver Support Protocol:
Only supports CRSF protocol
Weight: 9.5g
Size: 74mm x 21mm x 12.5mm

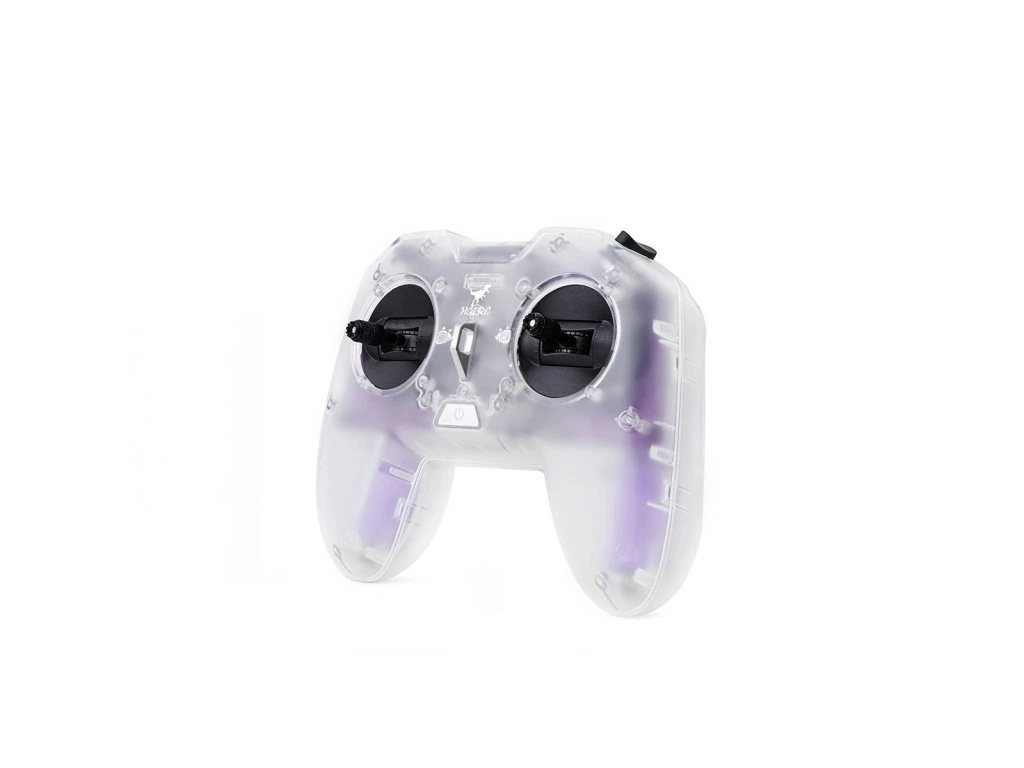

Remote Control Parameters:
Built-in ELRS: ELRS 2.4GHz
Built-in ELRS Refresh Rate: 250Hz
Remote Control Sensor Type: Potentiometer sensor
Antenna: Built-in IPEX1 generation copper tube antenna
Working Voltage: 6-8.4v DC
Remote Control Distance: Greater than 500m
Output Interface:
TX Module NANO bin (CRSF protocol)
TYPE-C (only for charging and firmware flashing)
3.5mm Analog Trainer Port
Battery: 18650 flat head battery x2 (to be installed by user)
Charging:
TYPE-C charging current 1.2A
Charging Time: About 3-4 hours
Remote Control Channels: 8 channels
Bluetooth: Bluetooth 4.2
ELRS Firmware Upgrade Method:
WIFI or TYPE-C wire brush
ELRS Firmware Version: ELRS 3.0
ELRS Firmware Name: DIY devices 2.4 GHz DIY ESP32 + E28 2.4GHz TX
Weight: 195g (excluding battery)
Size: 160mm x 130mm x 50mm (excluding remote control)

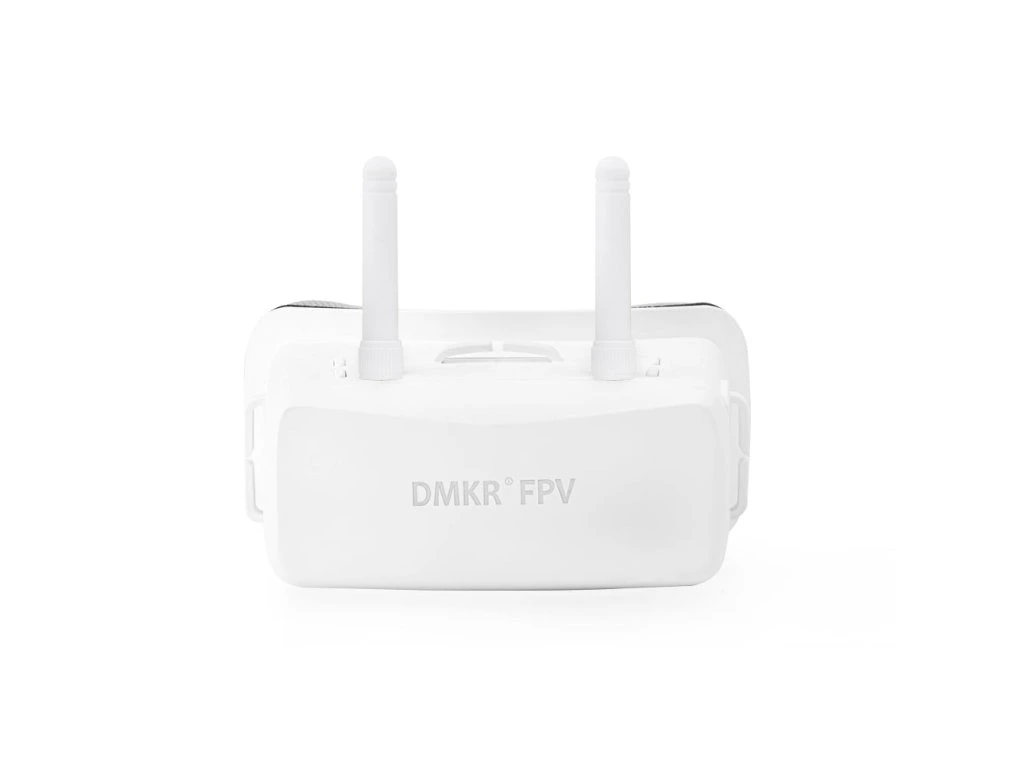

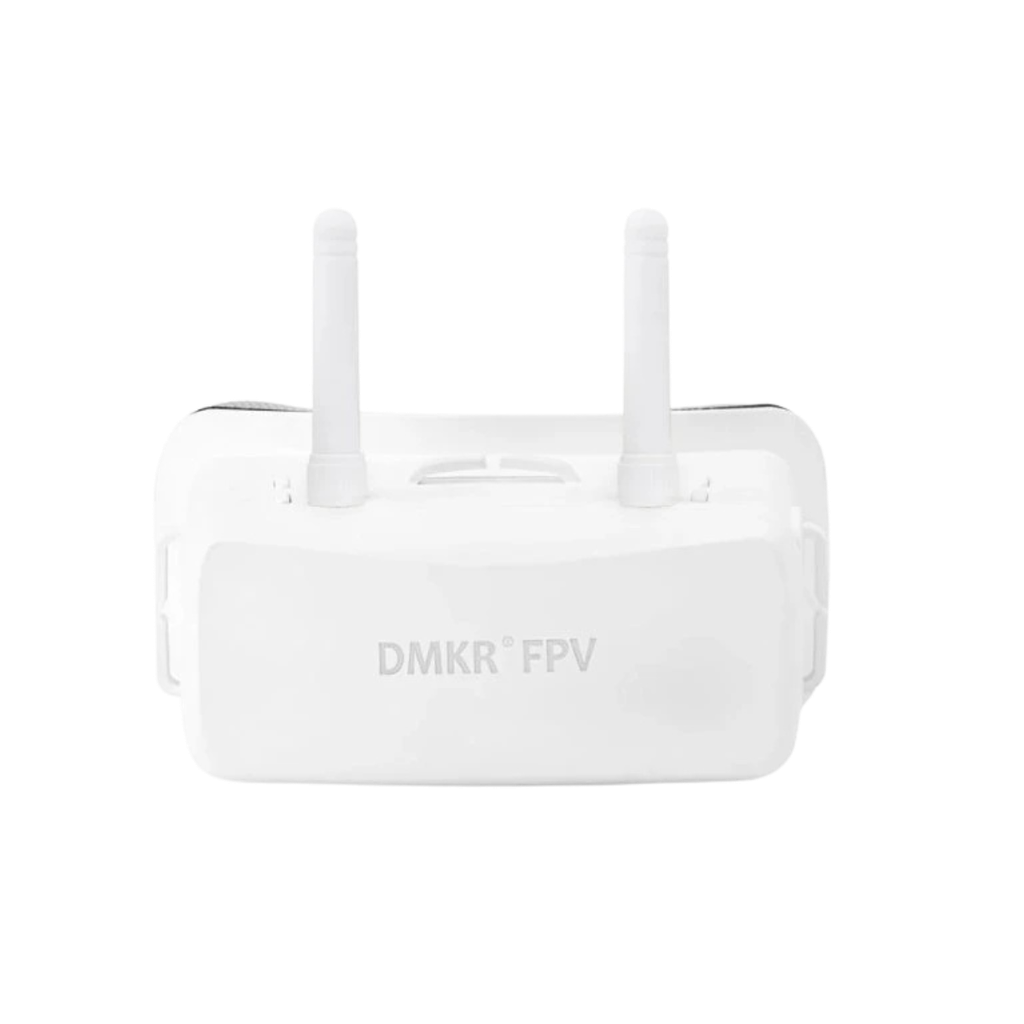

5.8G FPV Video Goggles
Model: 5.8G FPV video goggles
Screen Material: 3.0-inch IPS high-brightness screen
Display Resolution: 480 x 320
Display Specifications: 16:9
Field of View: 360-degree full viewing angle
Backlight Brightness: 500cd/m²
Video Delay: Less than 10 milliseconds
Antenna Head: Inner hole antenna head with RP-SMA inner needle antenna
Charging Port: Use TYPE-C to charge the built-in battery
Headphone Port: 3.5mm AV jack supports video input and audio/video output
Menu Language: Chinese and English
Battery:
Power Adapter: Recommended to use DC5V/1A or DC5V/2A charging head
Battery Specifications: Built-in 3.7V/1200mAh polymer battery
Power Consumption:
Operating Current: 350mA
Battery Charging Time: About 1 hour
Use Time: About 3 hours
Size: 107mm x 150mm x 75mm
Weight: 300g (excluding antenna)
| Brand | HGLRC |
| Protocol | ELRS 2.4GHz |
| Size | 2-inch |
