Controller HGLRC C1 Remote control

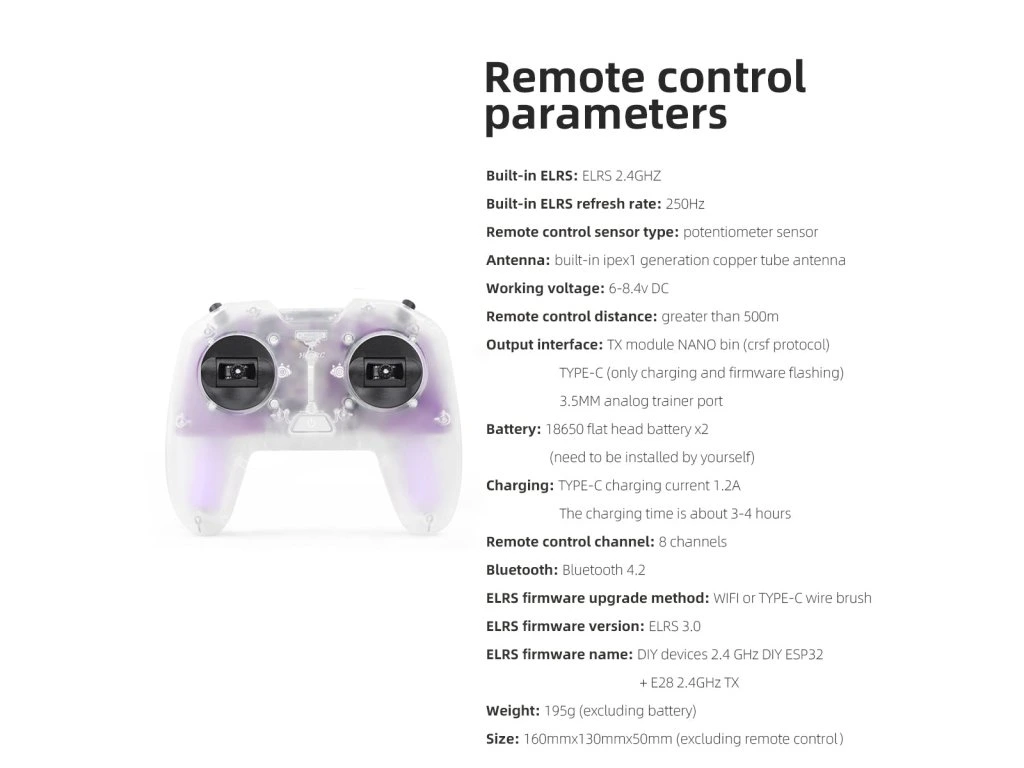

Specifications:
Built-in ELRS refresh rate: 250Hz
Remote control sensor type: Potentiometer sensor
Antenna: Built-in ipex1generation copper tube antenna
Remote control distance: 500m
Output interface:
-TX module NANO bin (crsf protocol)
-Type-C (only charging and firmware flashing)
-3.5mm analog trainer port
Battery: 18650 flat head battery (needs to be installed)
Charging: Type-C charging current 1.2A
Charging time: about 3-4 hours
Channel: 8 channels
Bluetooth: Bluetooth 4.2
ELRS firmware upgrade method: WIFI or Type-C
ELRS firmware version: ELRS 3.0
ELRS firmware name: DIY devices 2.4 GHz DIY ESP32 + E28 2.4GHz TX
Weight: 195g (excluding battery)

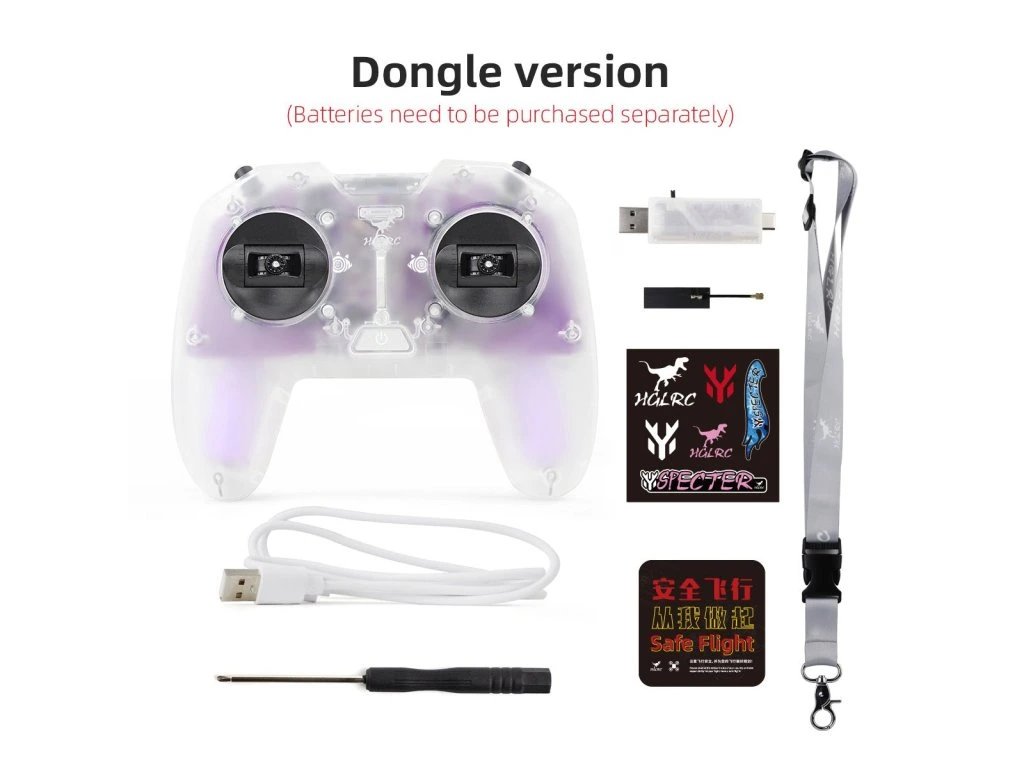

Package includes:
1x Remote control
1x Remote control hanging strap

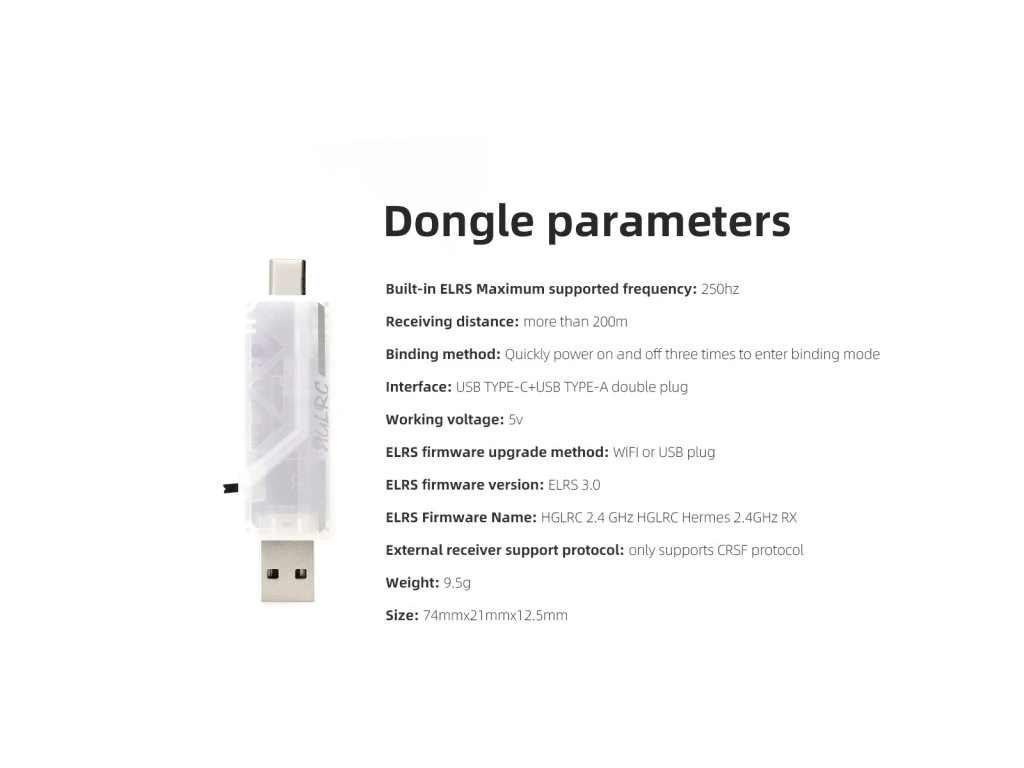

1x Wireless dongle
1x USB-C data cable
| Brand | HGLRC |
| USB port type | Type-C |
| Protocol | ELRS 2.4GHz |
| Voltage range | 6-8.4V DC |
