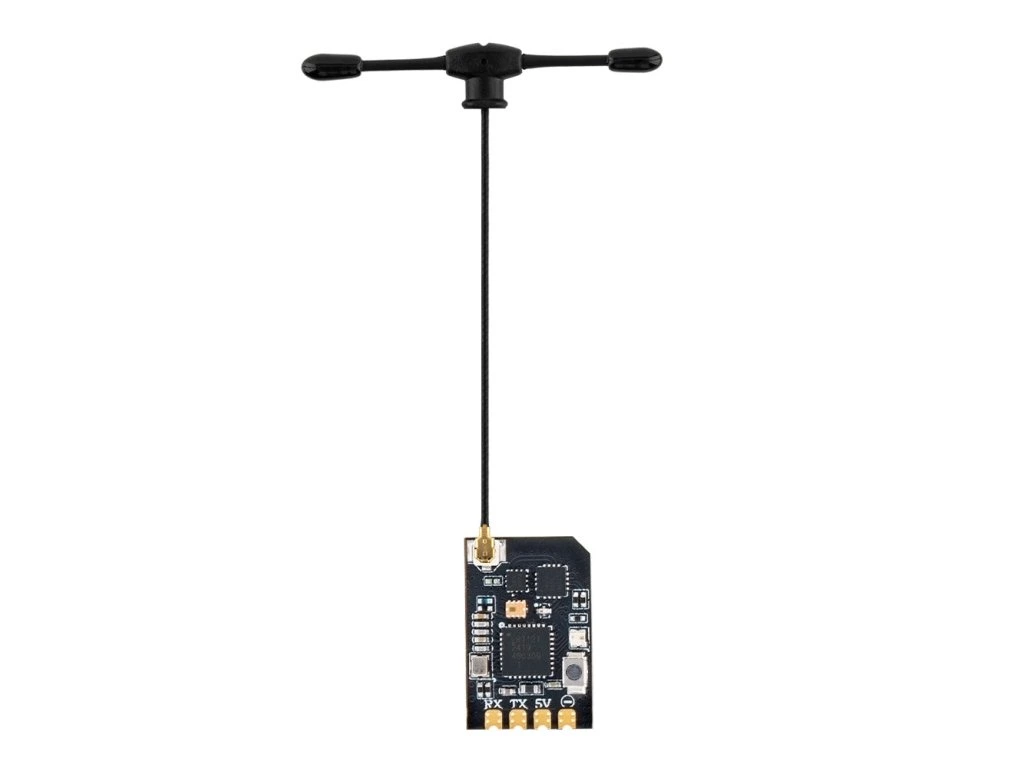

Receiver RadioMaster XR1 Nano Multi-Frequency ExpressLRS 2.4GHz
Specification:
Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
Type: ISM2.4
MCU: ESP32C3
RF chip: Semtech LR1121
RF connector: IPEX-1
Antenna: 1x T-Antenna 2.4GHz
Frequency Range: 2.4GHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz / K1000Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 1.0g (without antenna)

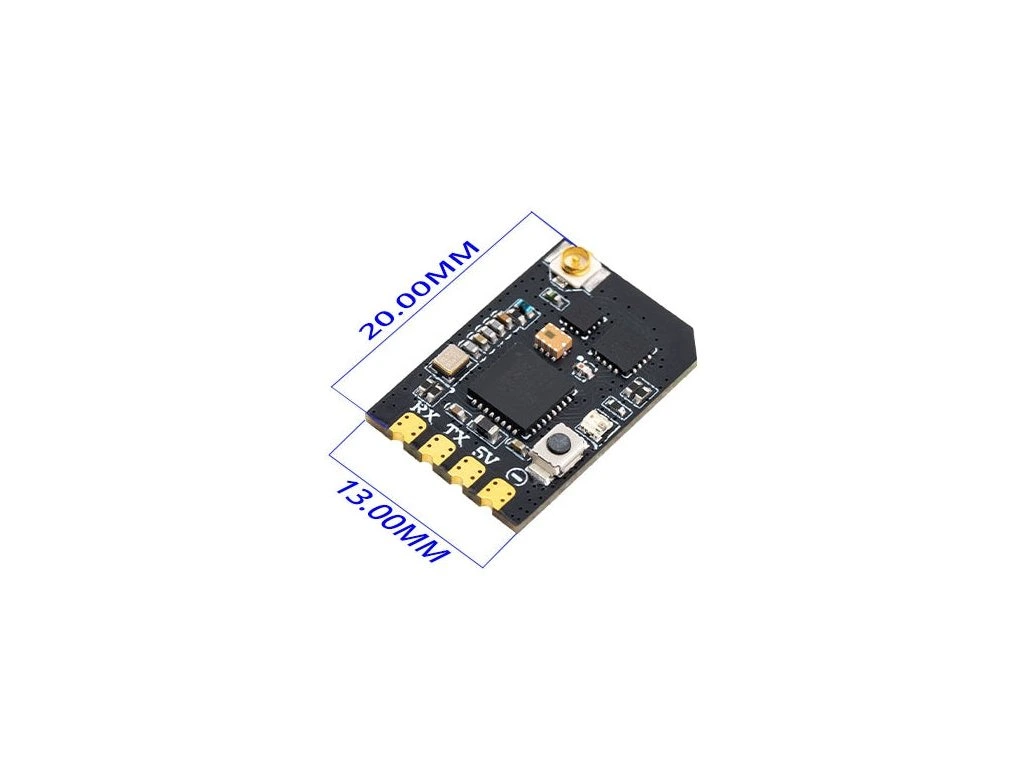

Dimension: 20x13x3mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target: RadioMaster XR1 2.4
Bus interface 1: CRSF
Bus interface 2: UART
Package Include:
1x XR1 Nano Multi-Frequency ExpressLRS Receiver
1x T Antenna 2.4GHz
1x CRSF wire
3x Heat-Shrinkable Tube
| Brand | RadioMaster |
| Protocol | ELRS 2.4GHz |
