TX Module RadioMaster Bandit RF ELRS 868/915MHz
Regulatory Domain: FCC915
MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Packet Rate: 25Hz - 200Hz
Output Power: 1000mW / 30dBm
Module Bay Adapters: Micro (5-pin) and Nano (8-pin) sockets

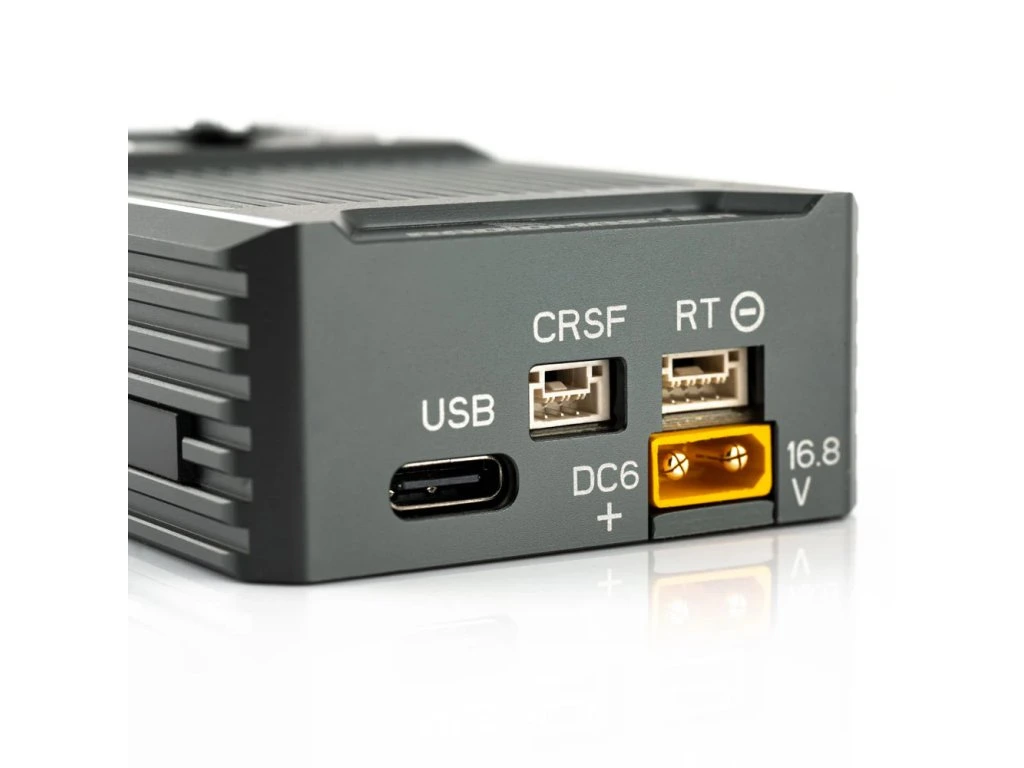

Power Supply: DC 6V - 16.8V (via XT30)

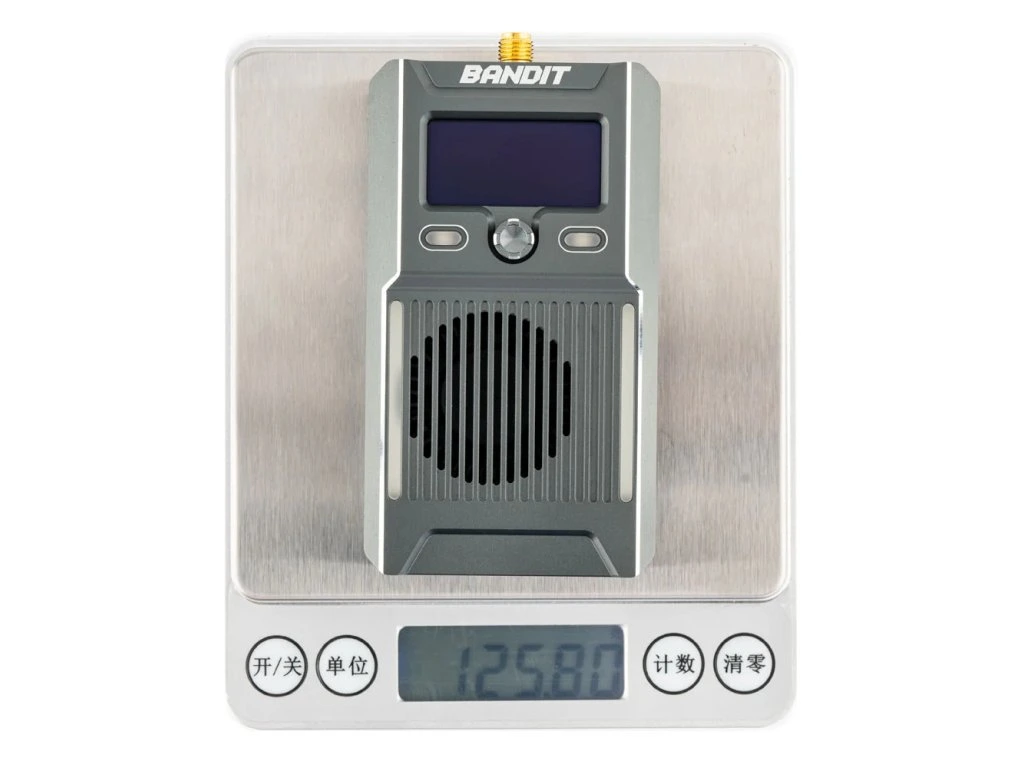

Weight: 155g (with antenna)

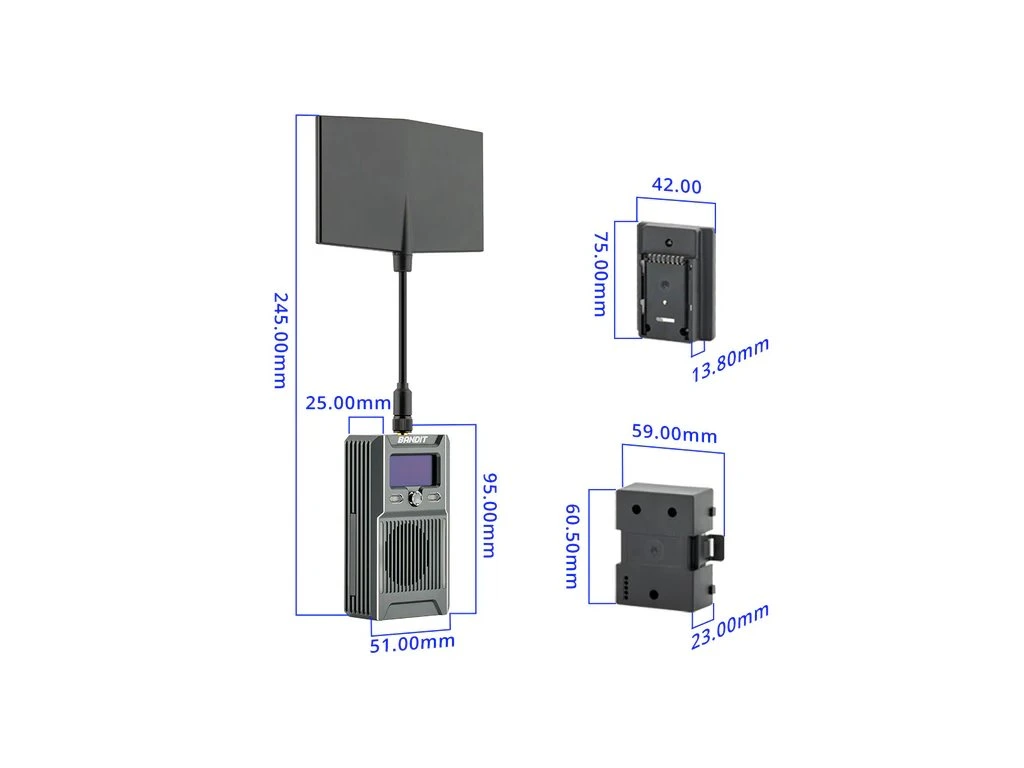

Dimensions: 90 × 51 × 24 mm

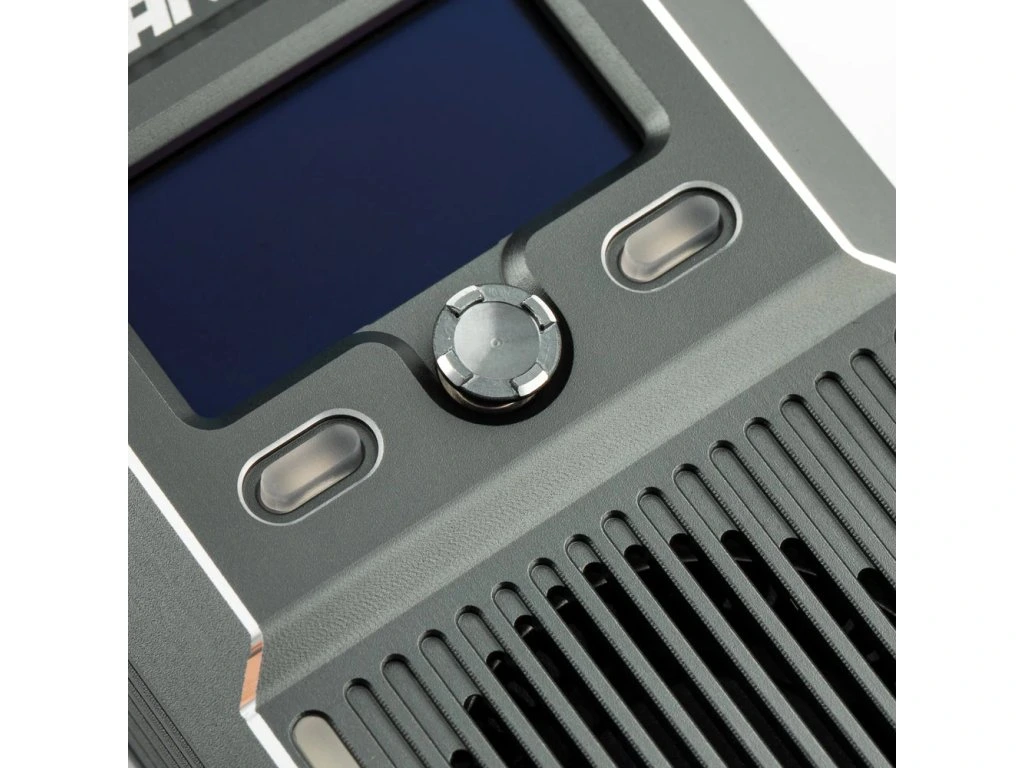

Built-in Features: RGB lighting, OLED display, and G-sensor
| Brand | RadioMaster |
| Protocol | ELRS 868/915MHz |
