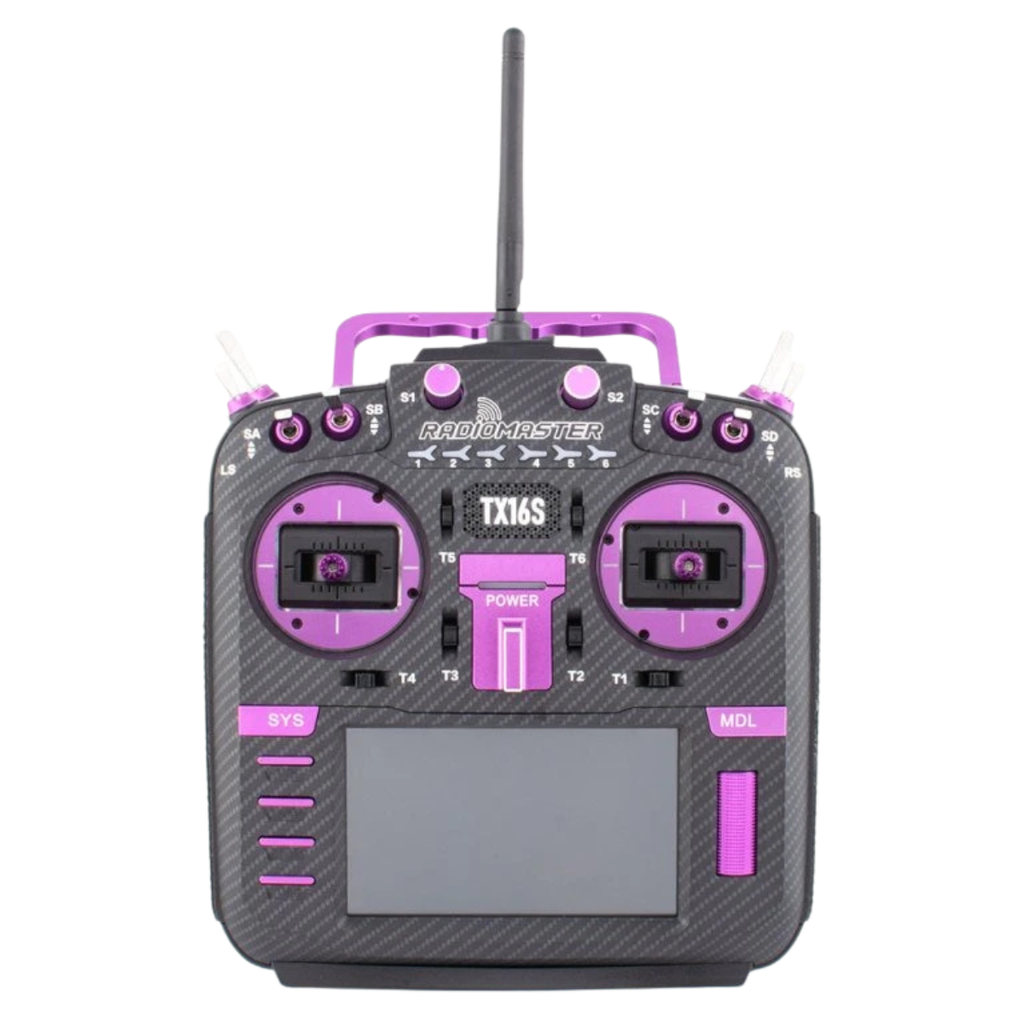

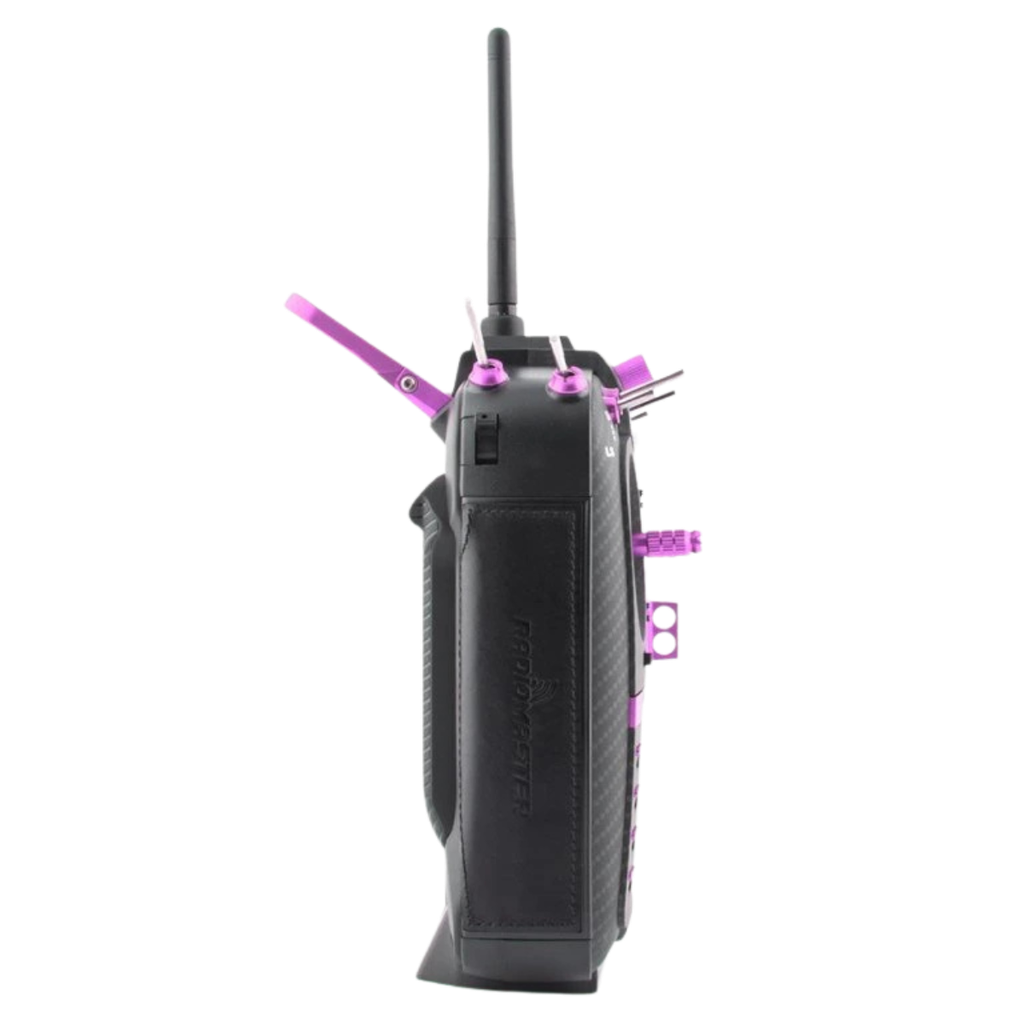

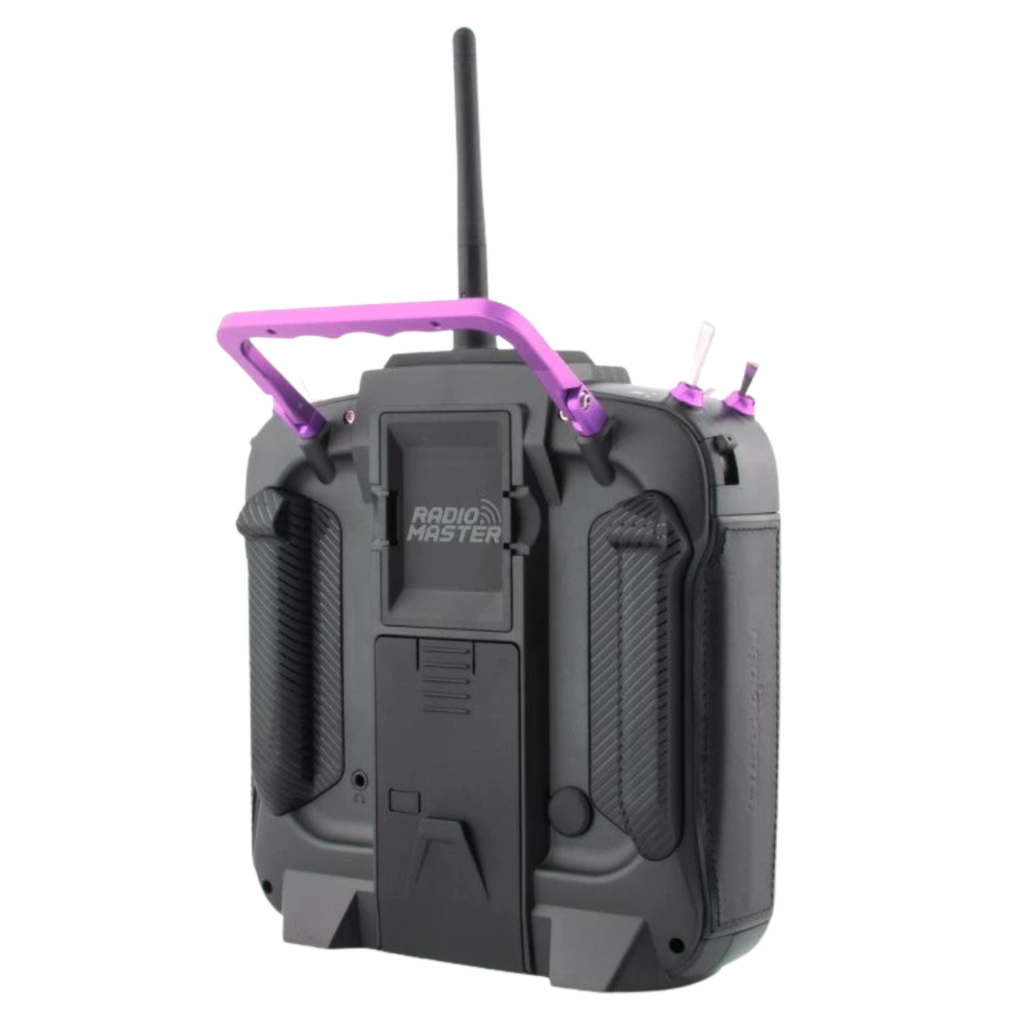

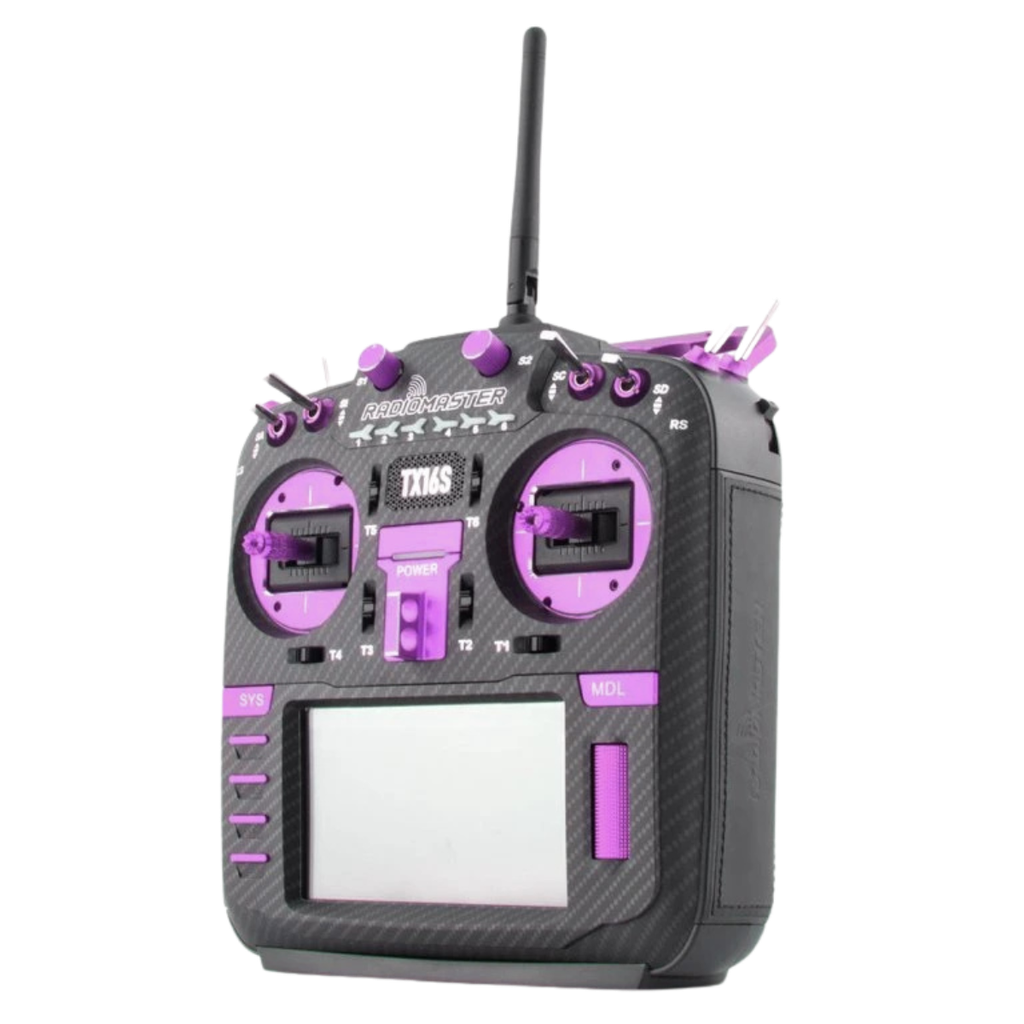

Controller RadioMaster TX16S MKII MAX Joshua Bardwell Edition LBT
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Internal ELRS (SX1280)
Transmitting power: Internal ELRS: Max 250mw (transmitting power is adjustable)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: V4.0 Hall sensor with Aluminium fascia
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
| Brand | RadioMaster |
| Monitor | Yes |
| External TX modules support | JR |
| Protocol | ELRS 2.4GHz |
