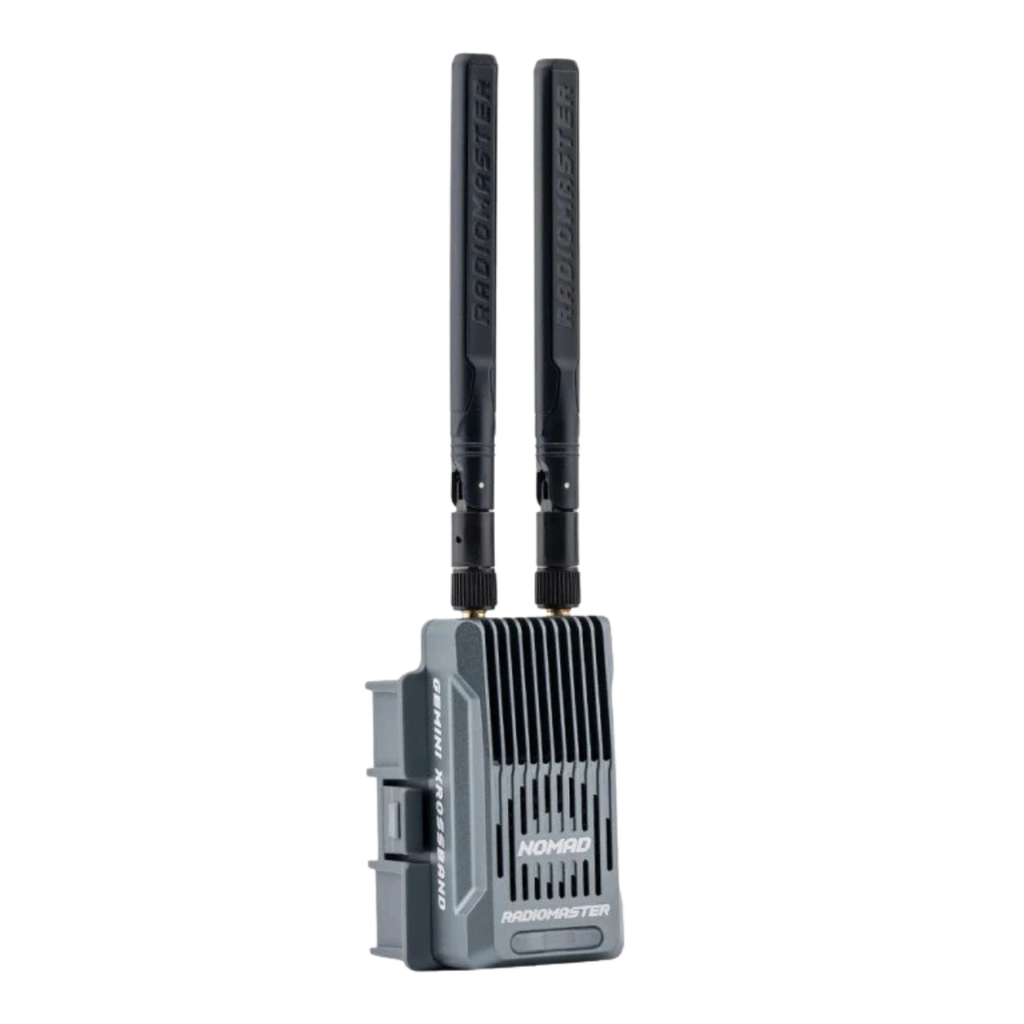

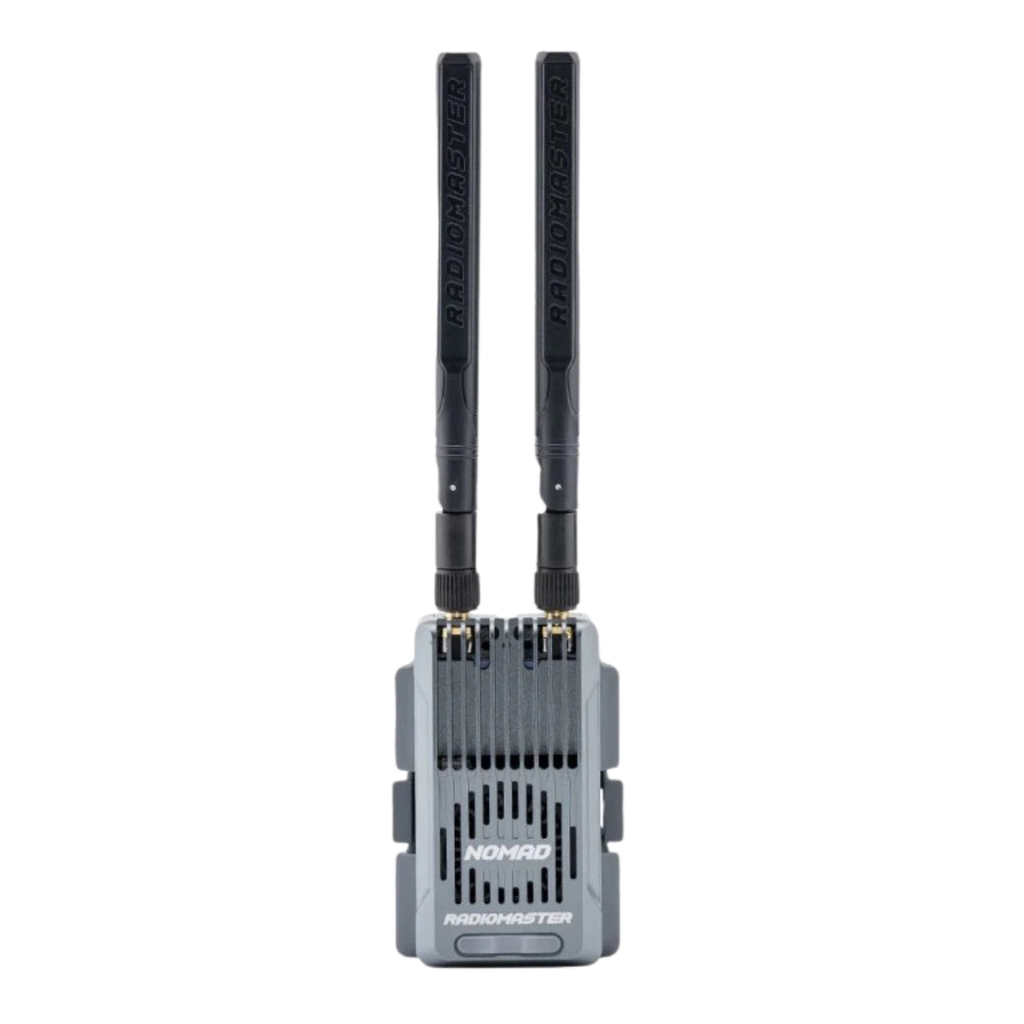

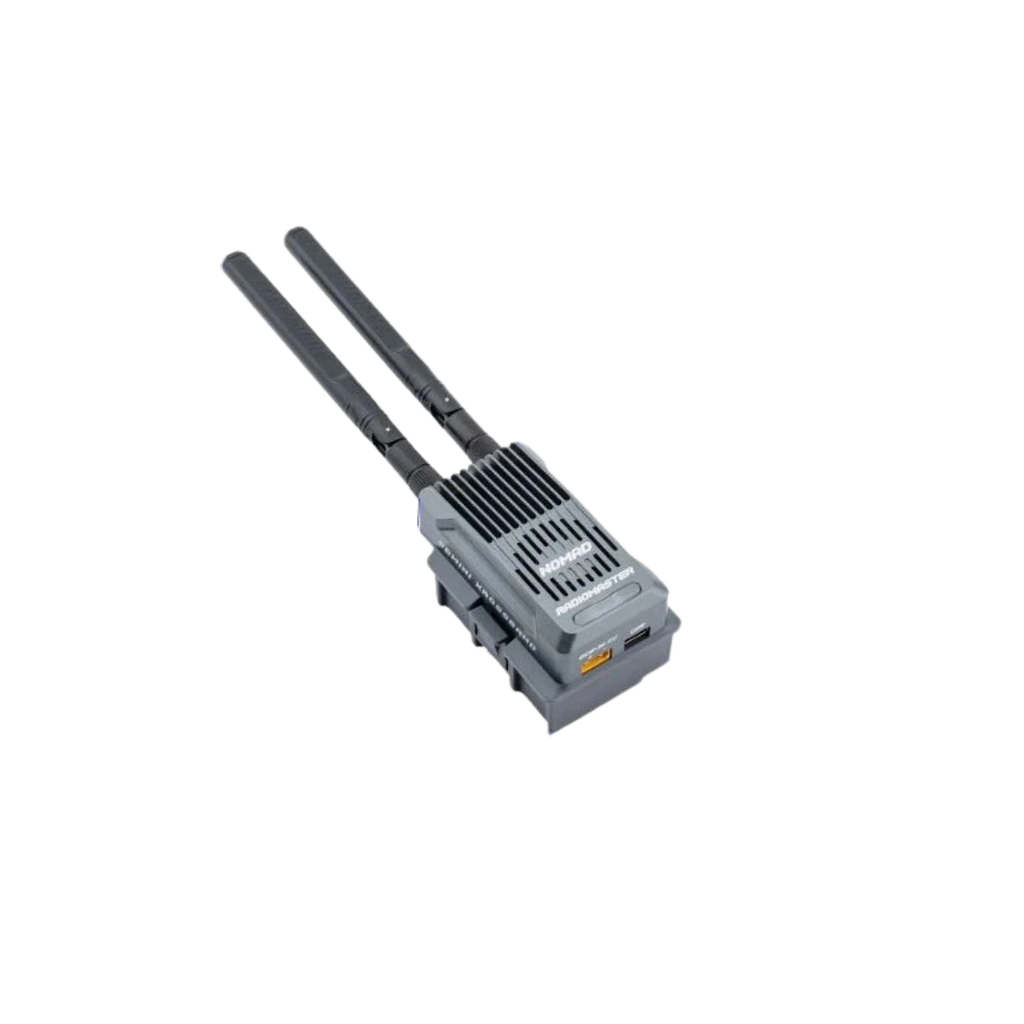

TX Module RadioMaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module
Regulatory Domain: ISM_2.4, FCC_915
MCU: ESP32(main), ESP32c3(aux, as ESP backpack)
RF chip: Semtech LR1121 x 2
RF: Dual 1000mW | Dual band Gemini ELRS
Frequency Range: 2400 MHz - 2479 MHz / 903MHz - 927MHz
Maximum packet rate: 500Hz (1000Hz coming soon in ExpressLRS V3.5)
Minimum receiver refresh rate: 50Hz
RF Output Power: 1000mW x 2

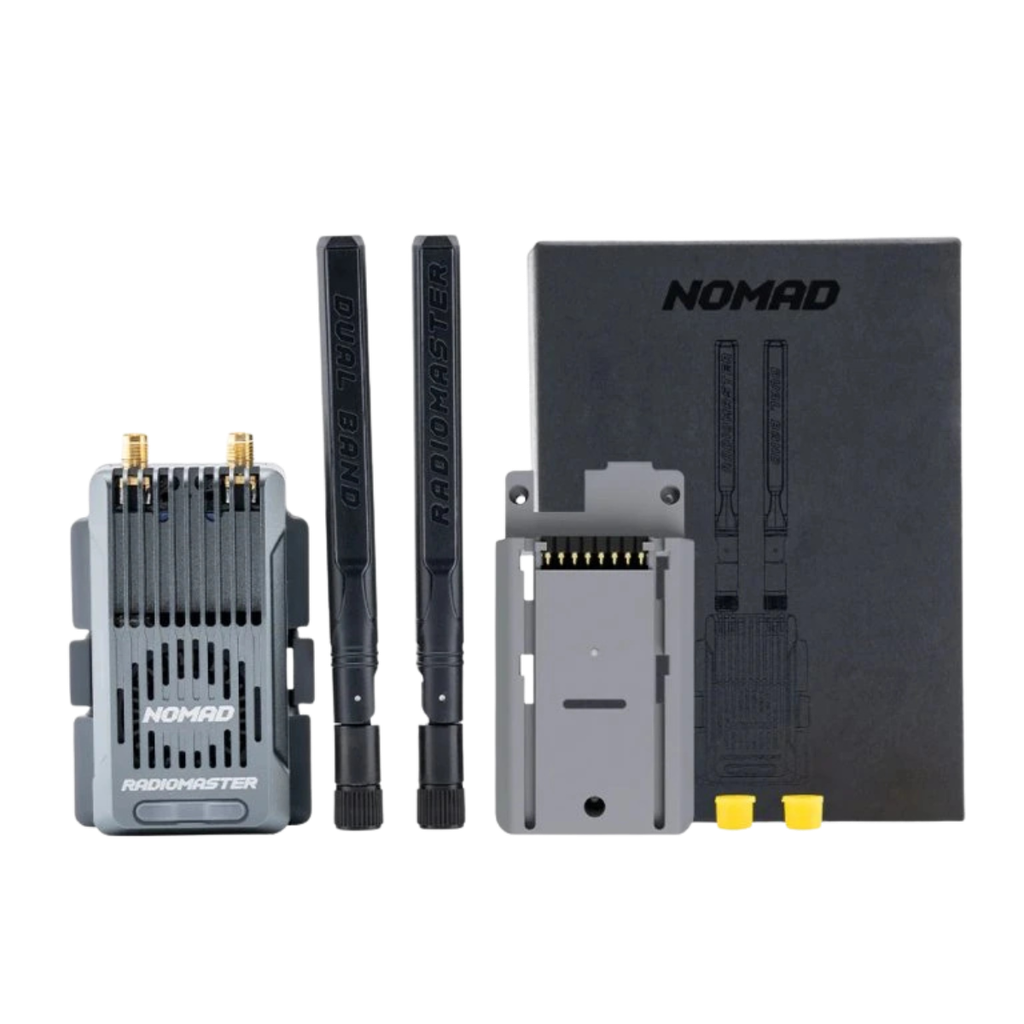

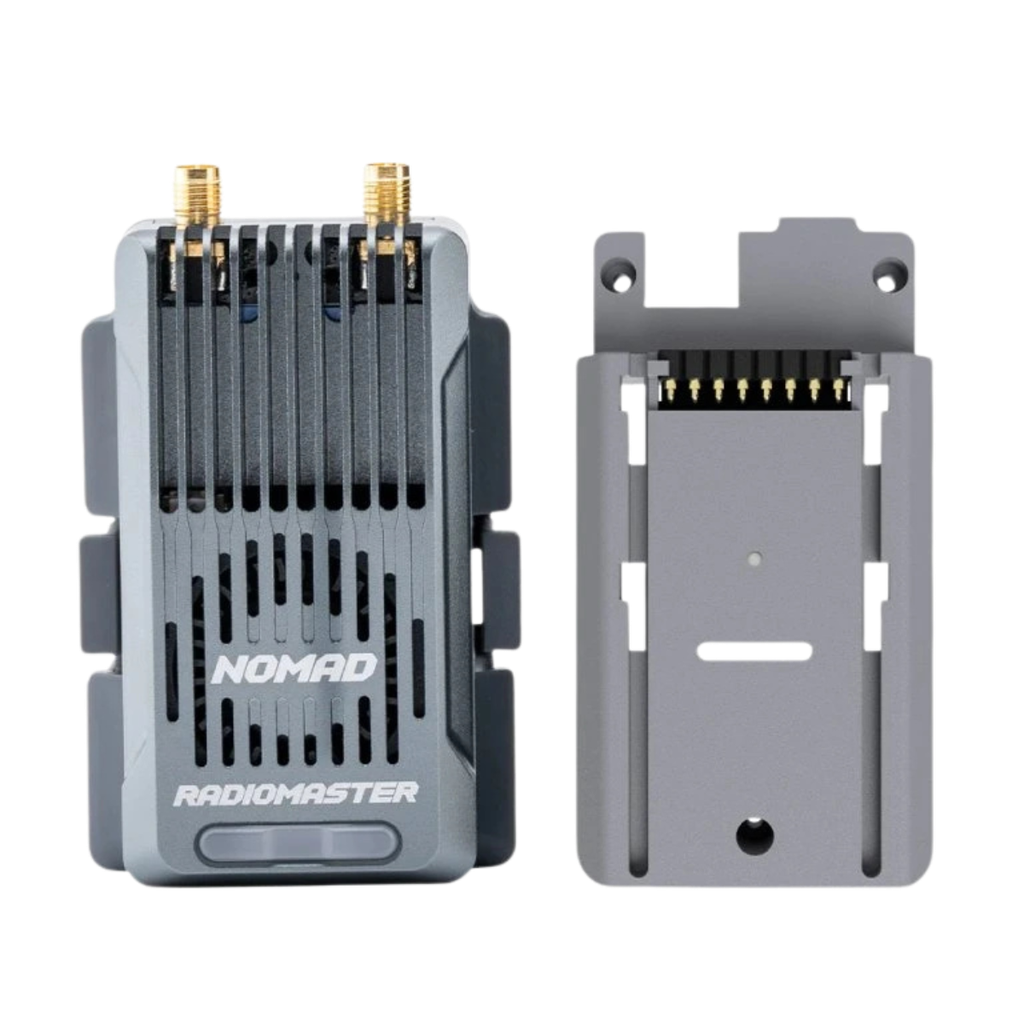

Module bay adapters: Micro standard 5pin socket & Nano standard 8pin socket
Wifi Support: Yes
Bluetooth support: Yes

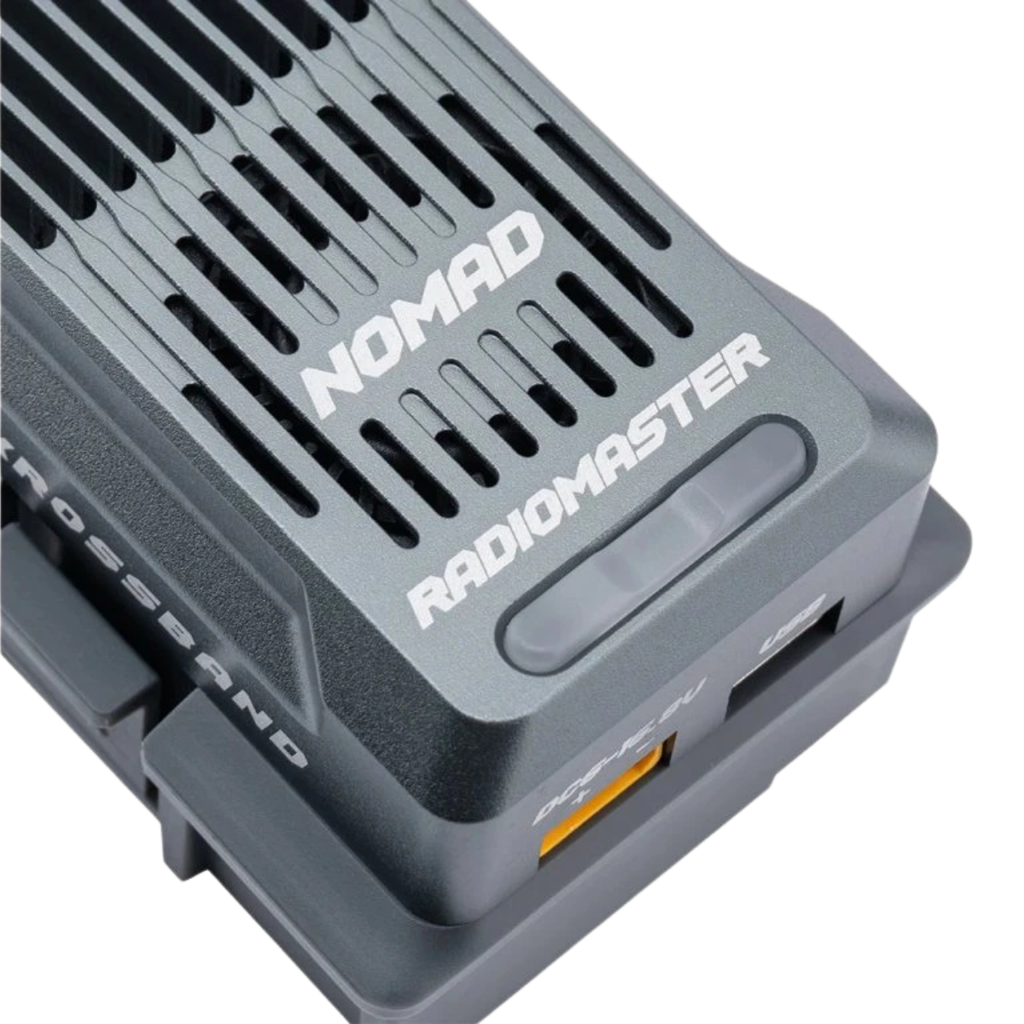

Built-in RGB light strip

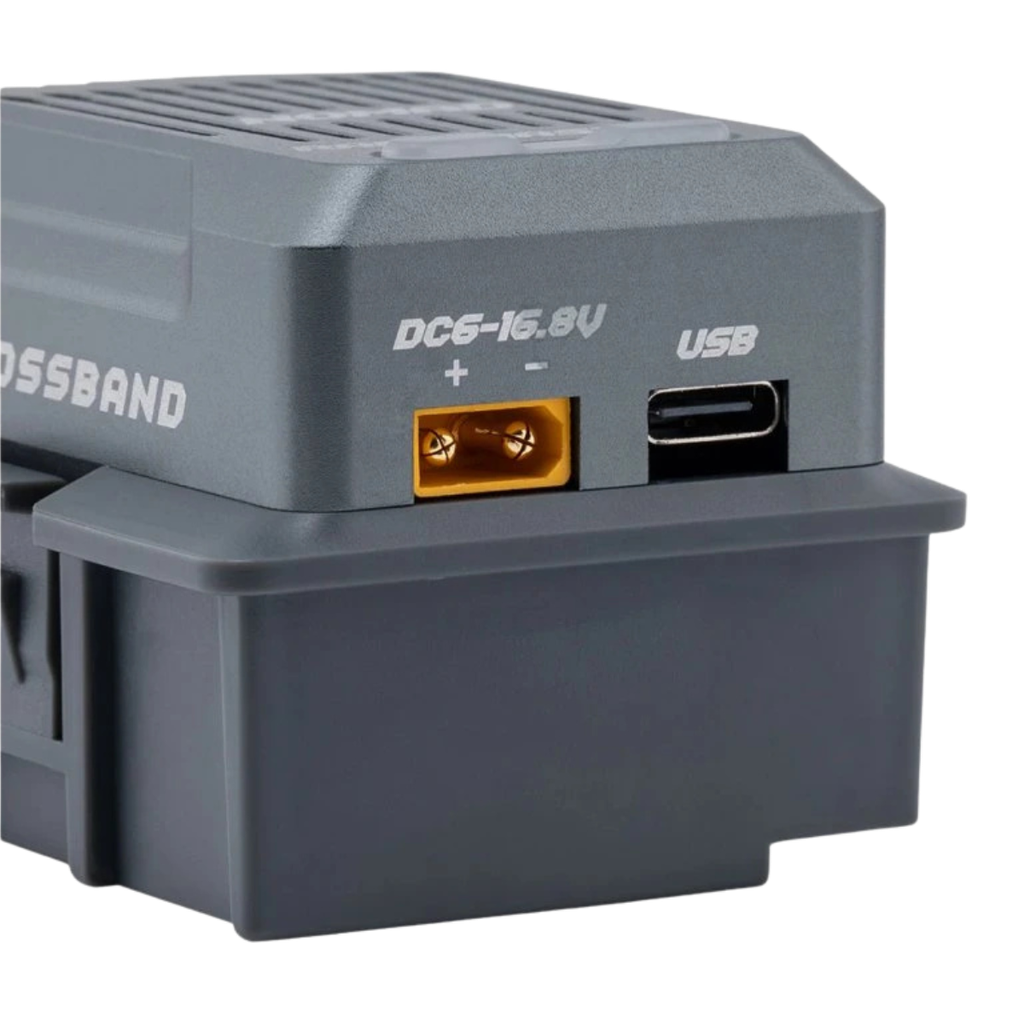

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 87.20g (with antenna) / 71.10g (without antenna)
Dimension: 80*45*40mm (without antenna)
| Protocol | ELRS 868/915MHz or ELRS 2.4GHz |
| Brand | RadioMaster |
