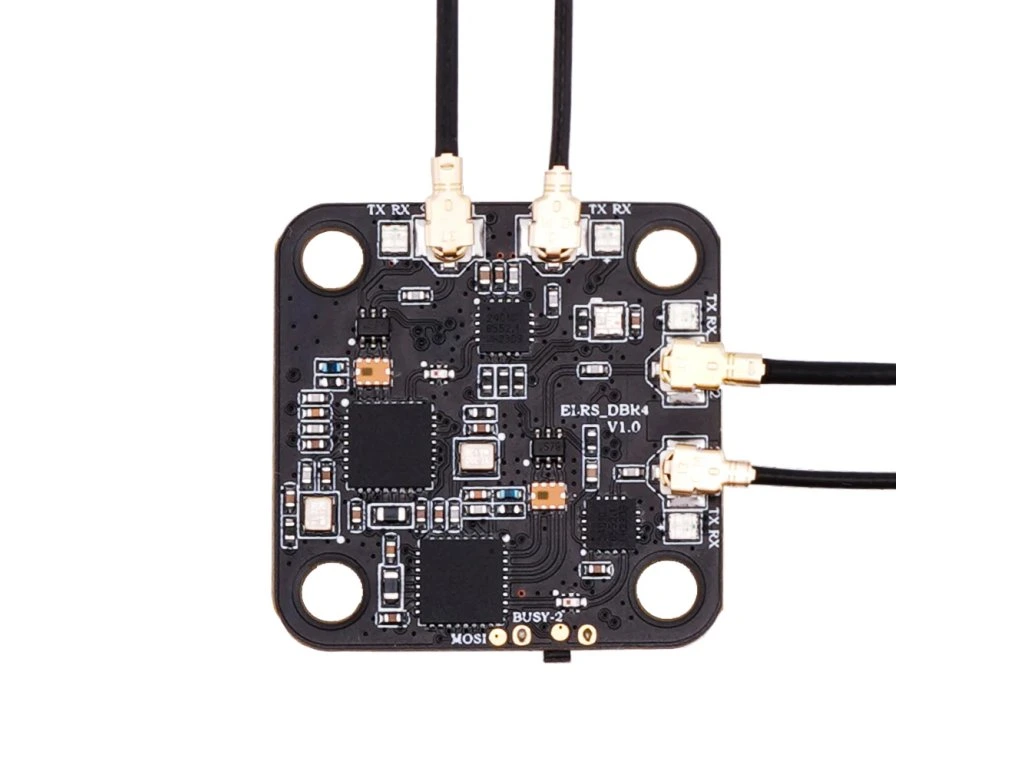

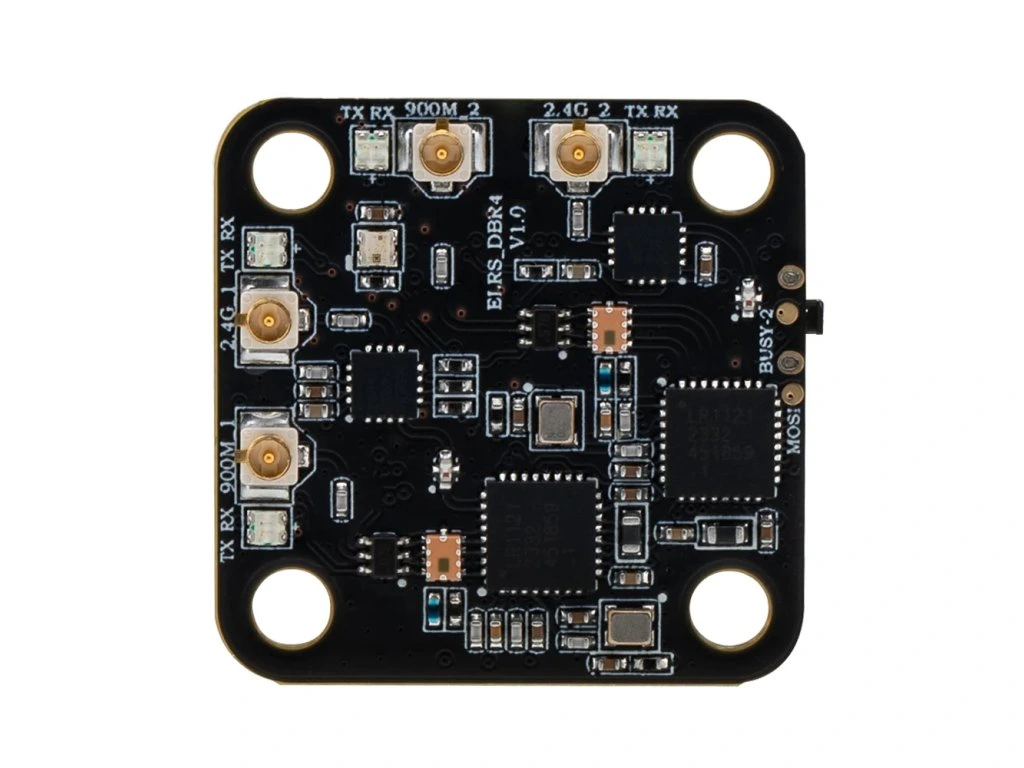

Receiver RadioMaster DBR4 Dual band Xross Gemini ELRS 2.4G/900M
Type: ISM_2.4, FCC_915
MCU: ESP32
RF chip: Semtech LR1121 x 2
Telemetry RF power: Max 100mW

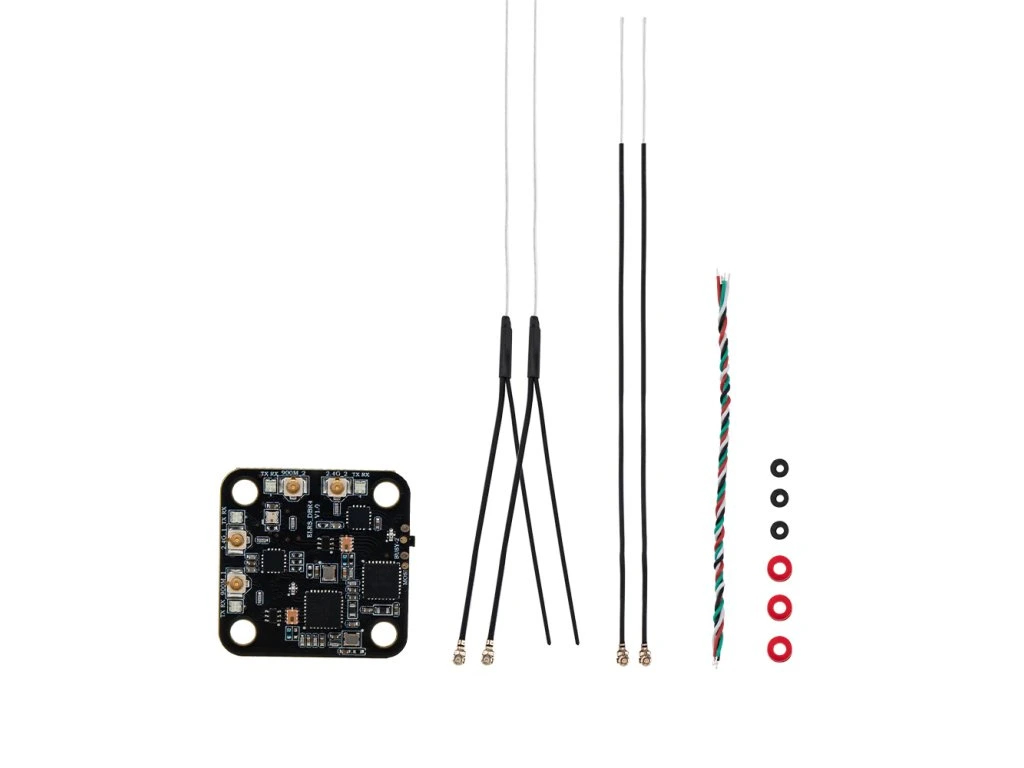

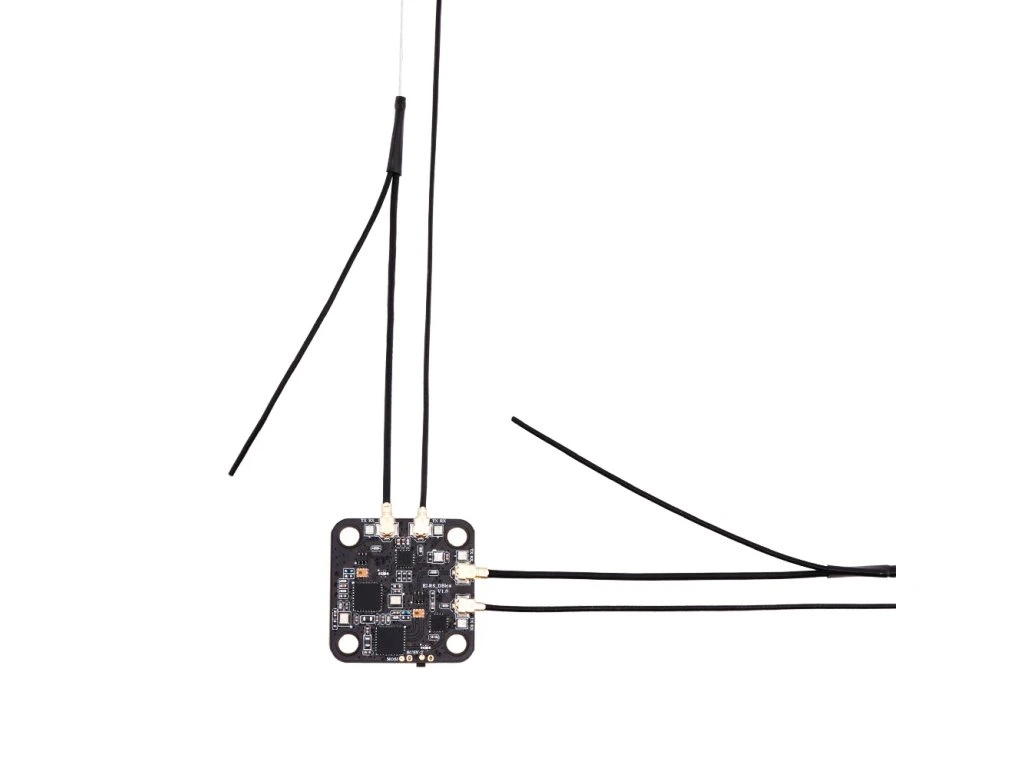

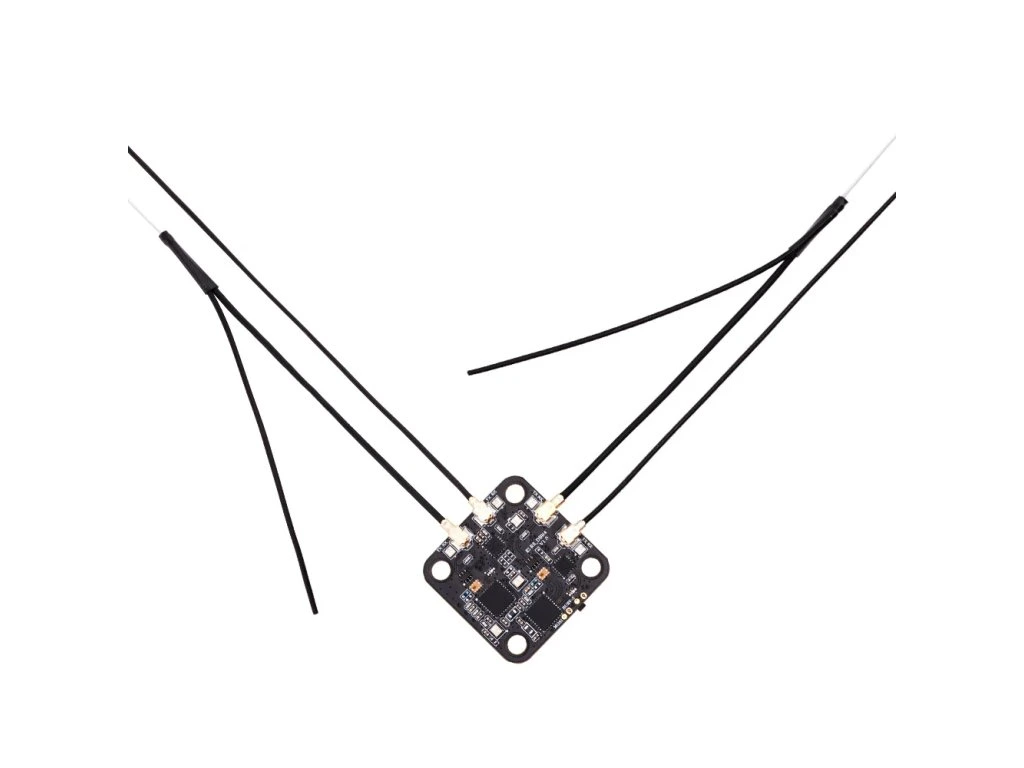

Antenna: 2 x 2.4GHz wires & 2 x 900MHz wires
Frequency Range: 2.404 - 2.479 GHz / 903.5 - 926.9 MHz
Maximum receive refresh rate: 500Hz (1000Hz coming soon in ExpressLRS V3.4)
Minimum receiver refresh rate: 50Hz
Working voltage: DC 4.5 - 8.4V
Weight: Without antennas 2.70g / With antennas 5.30g
Dimension: 27.20 *27.20mm
Firmware Version: ExpressLRS v3.3.2 pre-installed
Bus interface: CRSF
| Protocol | ELRS 868/915MHz or ELRS 2.4GHz |
| Brand | RadioMaster |
