Receiver RadioMaster RP4TD-M ExpressLRS 2.4G Race
Type: ISM

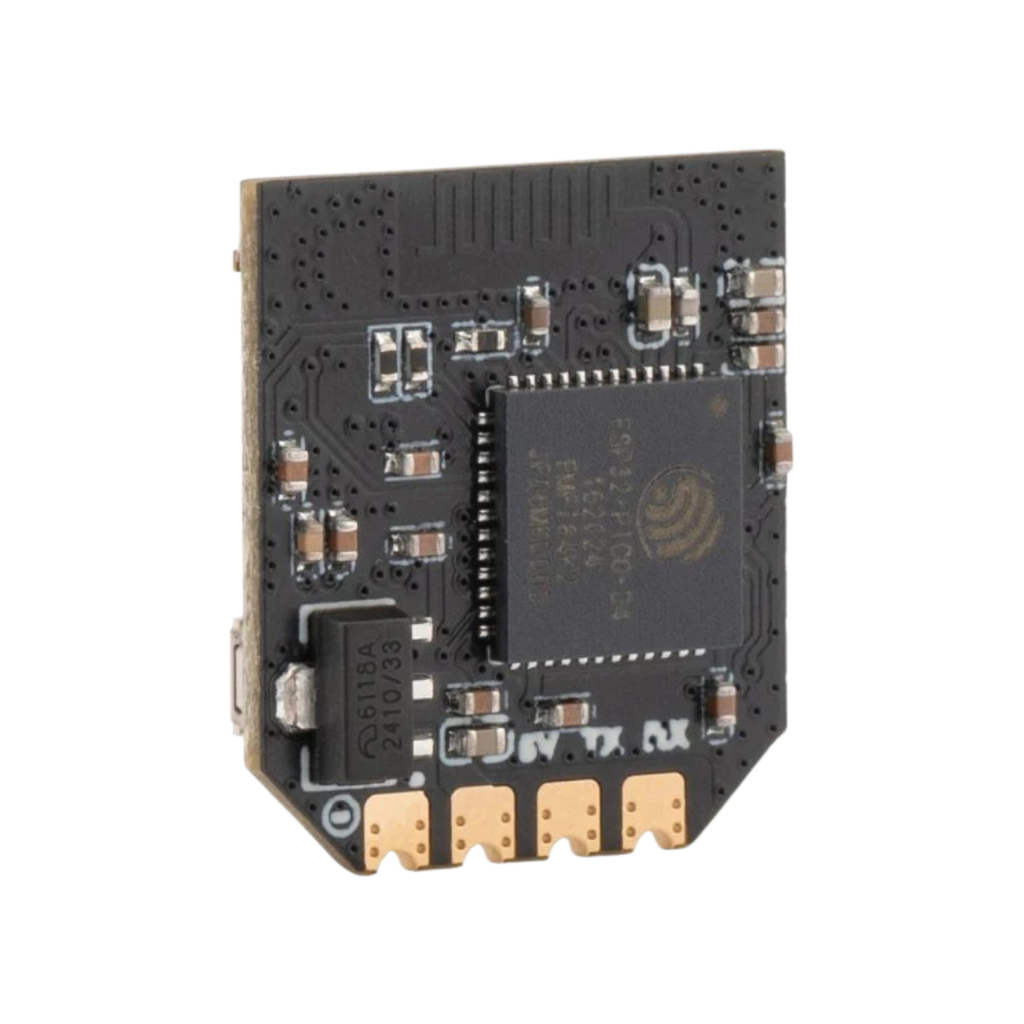

MCU: ESP32
RF Chip: SX1281 x 2

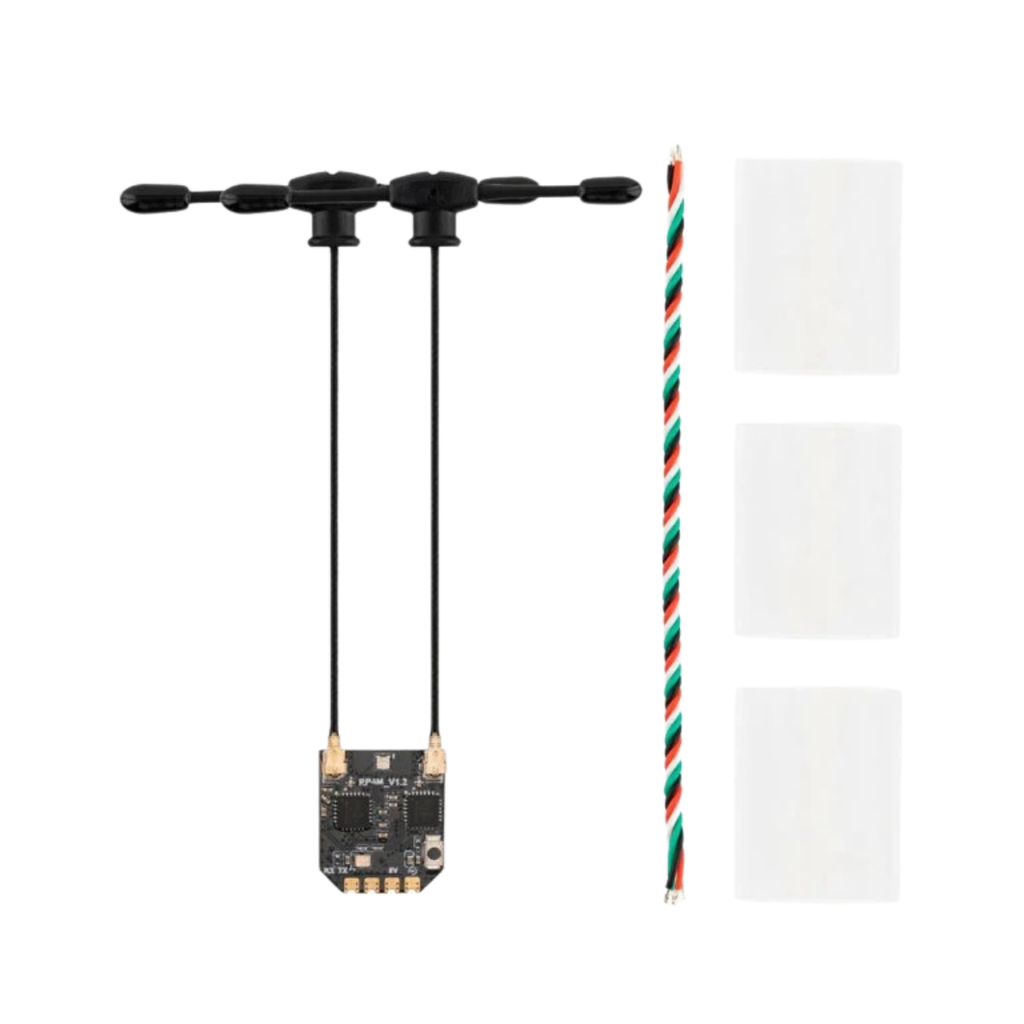

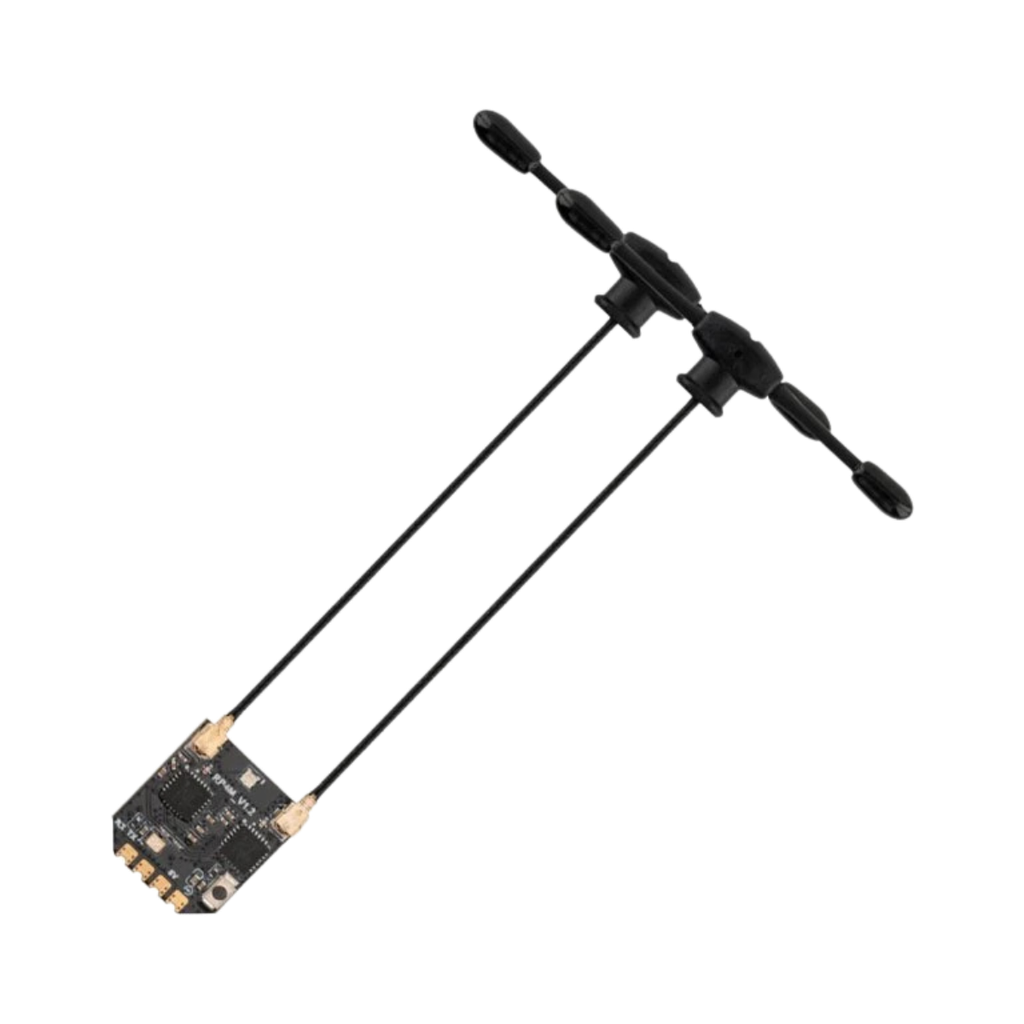

Antenna: 65mm 2.4GHz T Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2x 10mW
Working Voltage: DC 5.0V
Wifi Updates: Yes

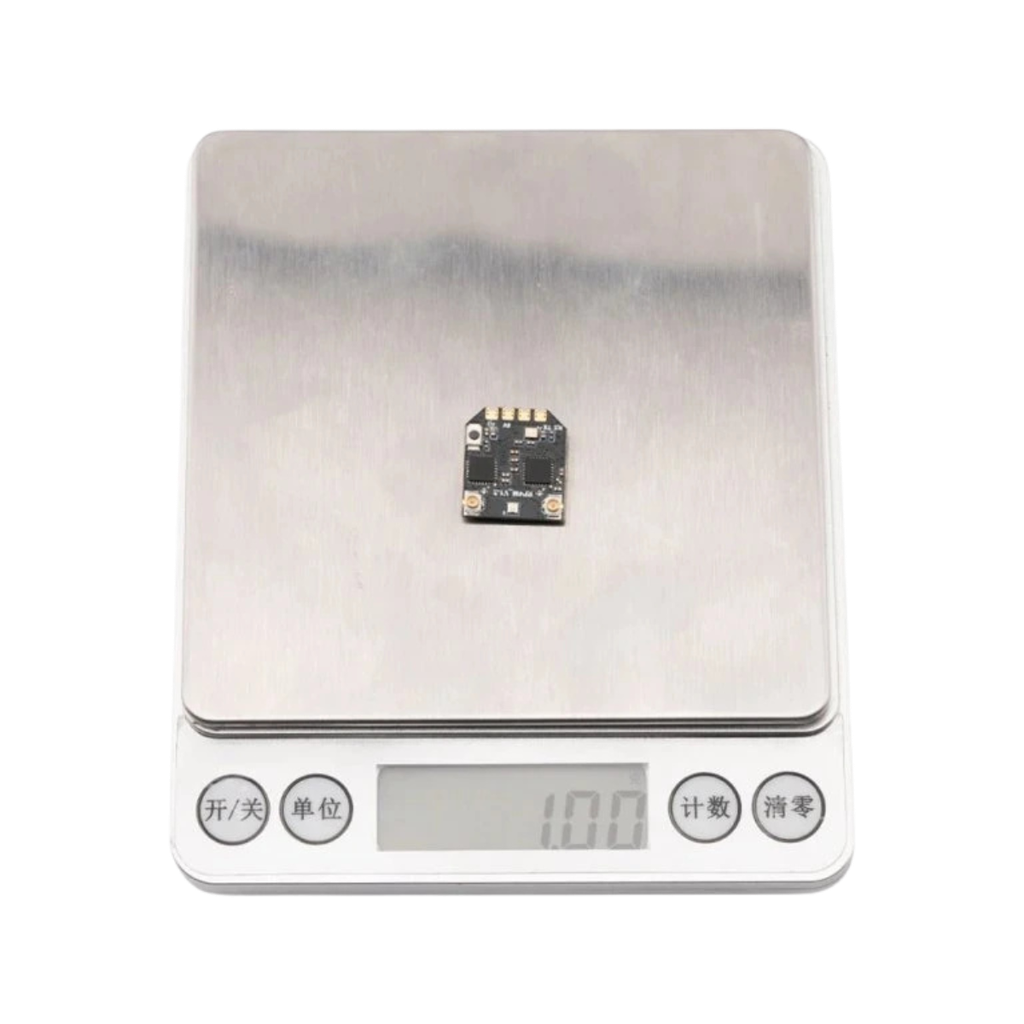

Weight: 1.00g [Without antennas] / 3.30g [With antennas]
Dimension: 18.10 x 16.0mm
Firmware Version: ExpressLRS V3.4.3 pre-installed
FW Target: RadioMaster RP4TD-M 2400 RX
Bus interface: CRSF
| Brand | RadioMaster |
| Protocol | ELRS 2.4GHz |
