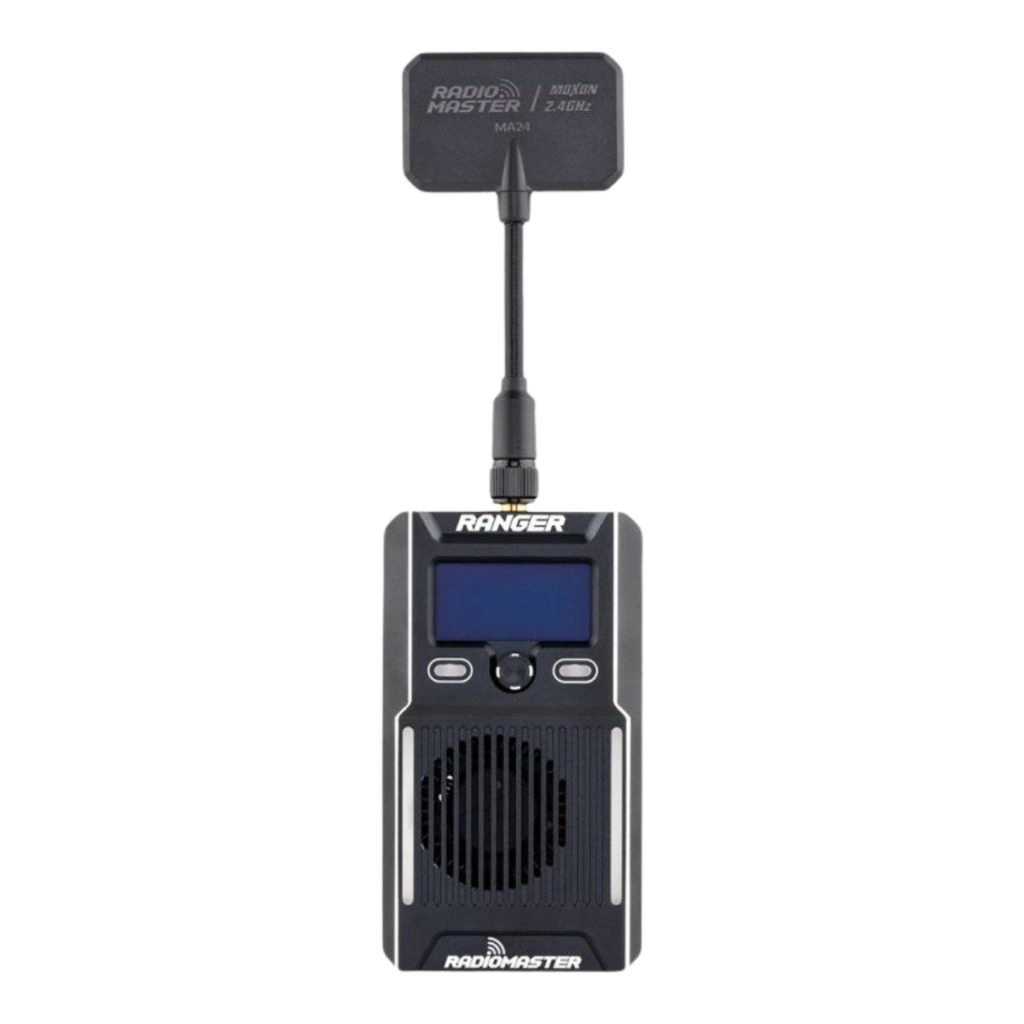

TX Module RadioMaster Ranger 2.4GHZ ExpressLRS LBT
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: Default 100mW
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included

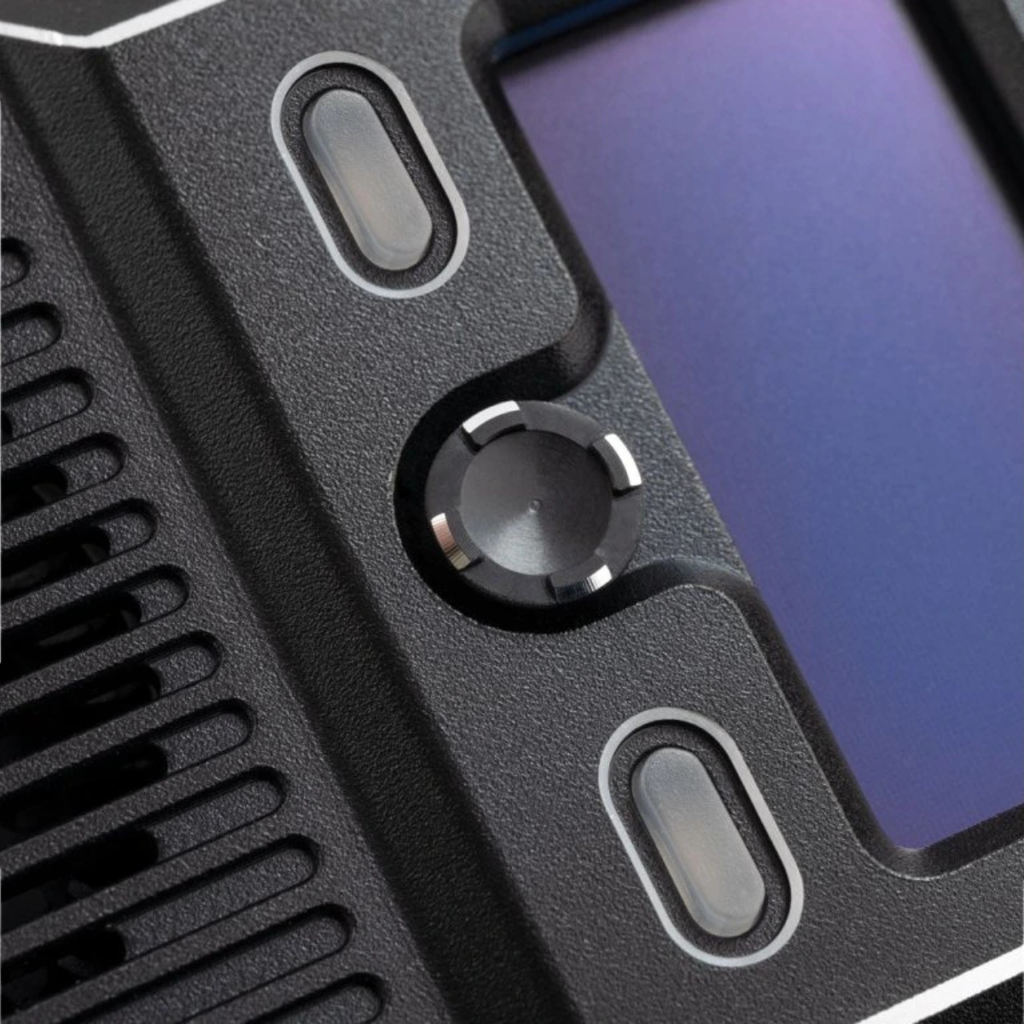

OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip

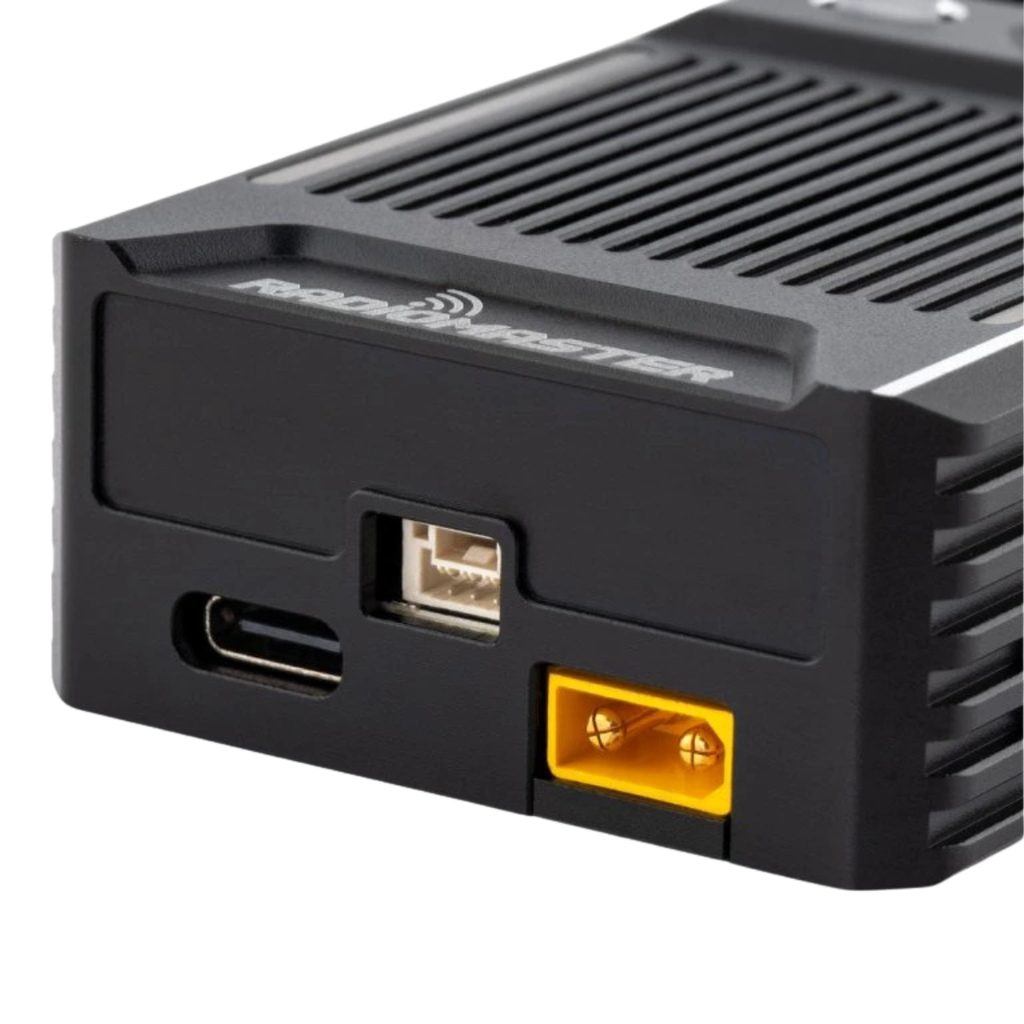

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95x51x25mm (without antenna)
| Brand | RadioMaster |
| Protocol | ELRS 2.4GHz |
