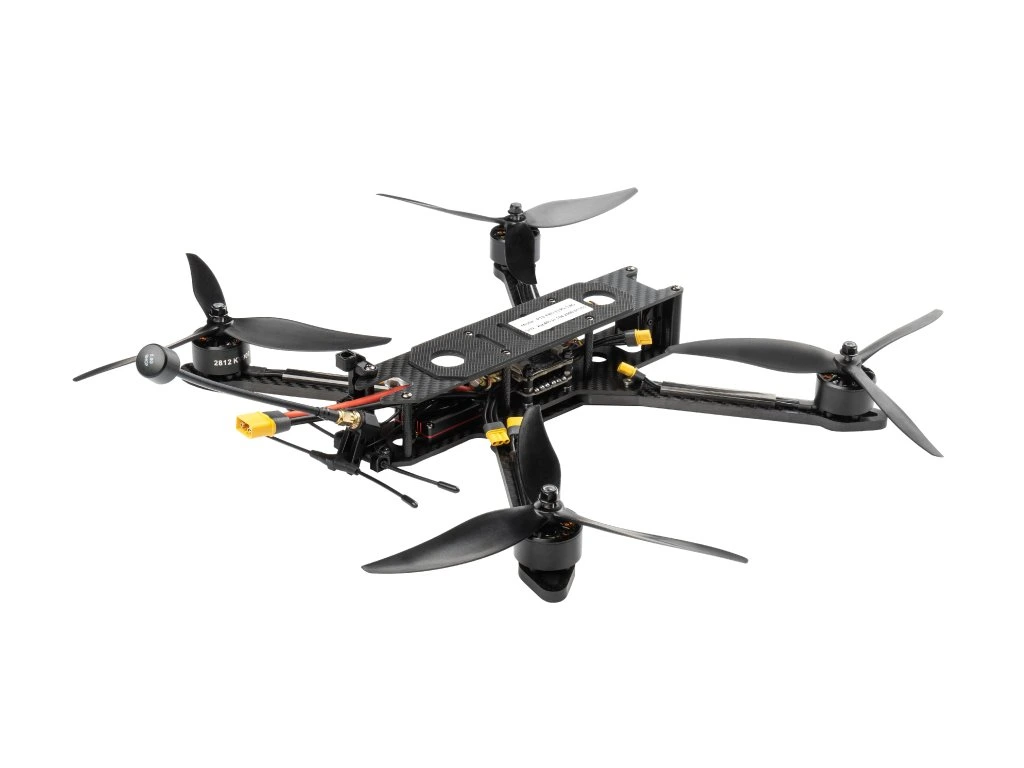

FPV drone 7" Starter DIY Kit
The set has been created in collaboration with the Estonian Aviation Academy

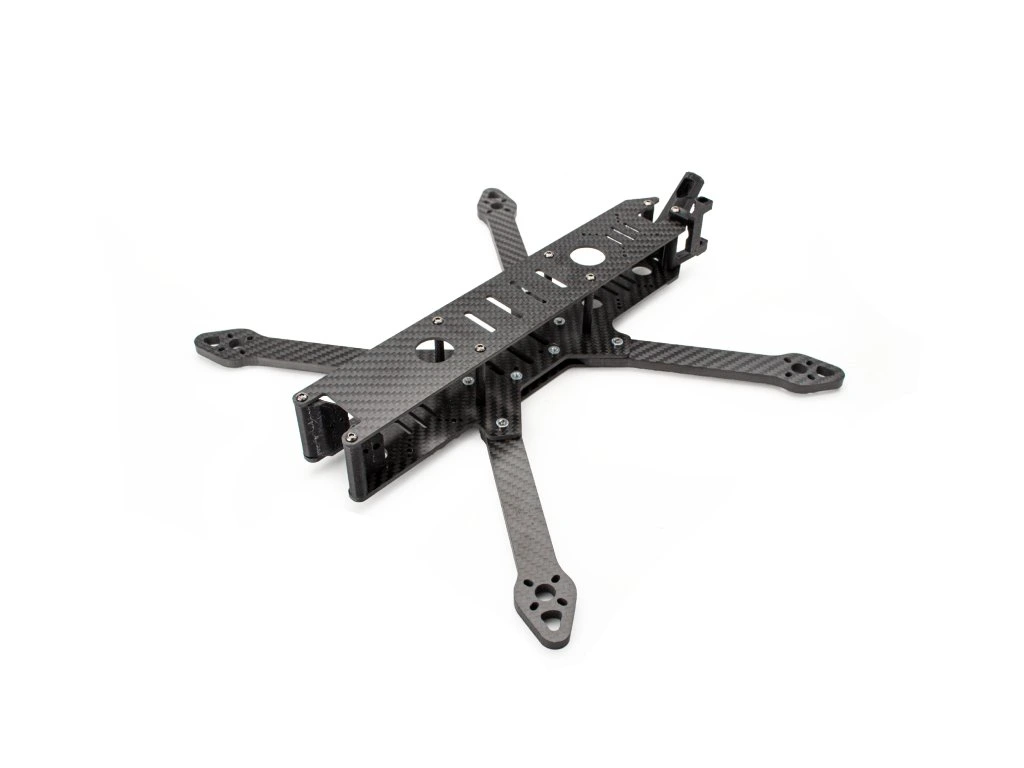

Frame: Pilotix PT7 V3
Wheelbase: 320mm
Arm thickness: 6mm
Top plate width: 45mm
Top plate length: 270mm
Top plate thickness: 2mm
Bottom plate width: 45mm
Bottom plate length: 270mm
Bottom plate thickness: 3mm
Material: Carbon fibre

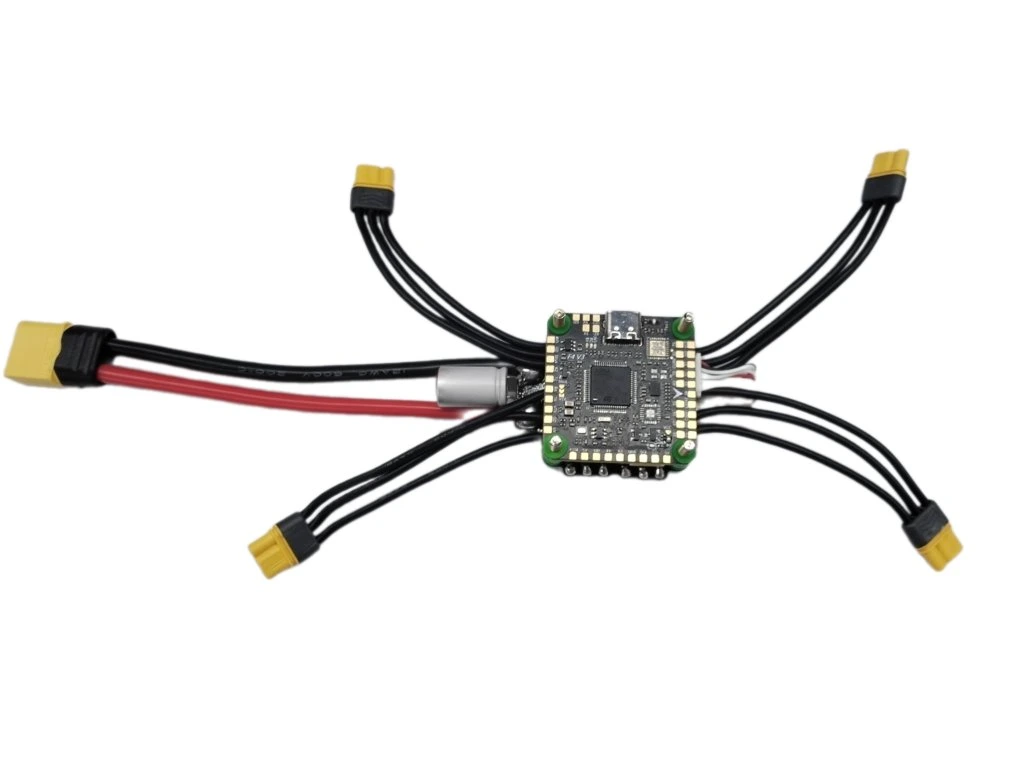

FC: F405 V3 Flight Control
ESC: 60A (burst 70A) - Bettle 3060 Electrical Regulation (ESC)

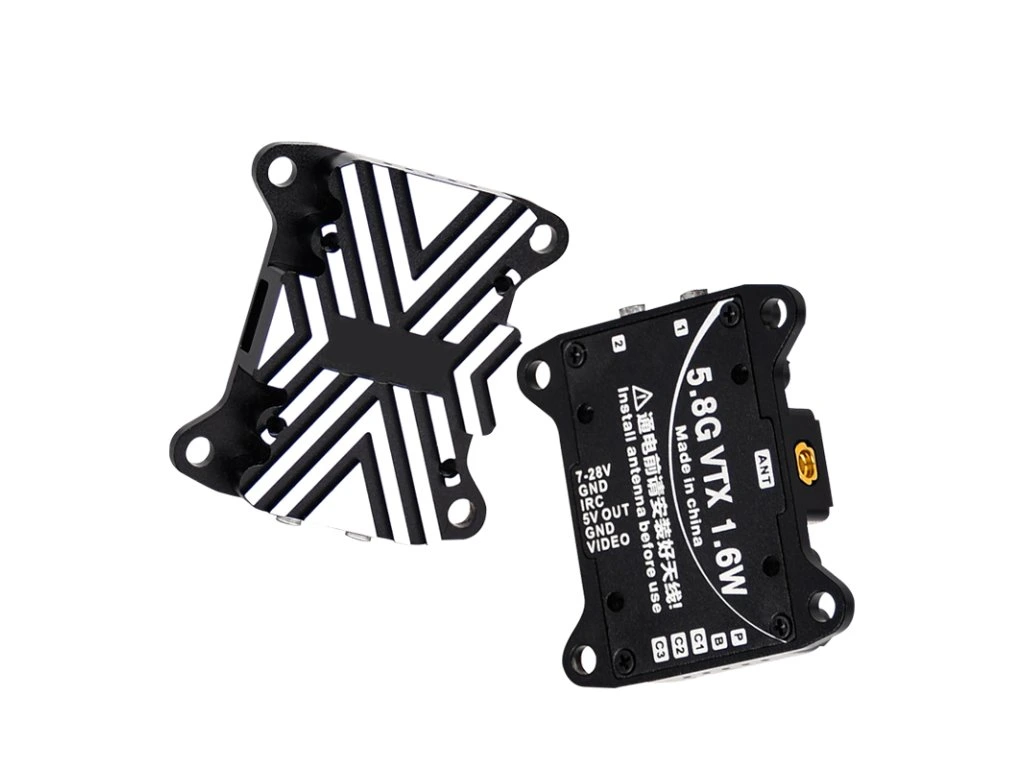

VTX: 5.8G 2.5W - Pilotix R1600

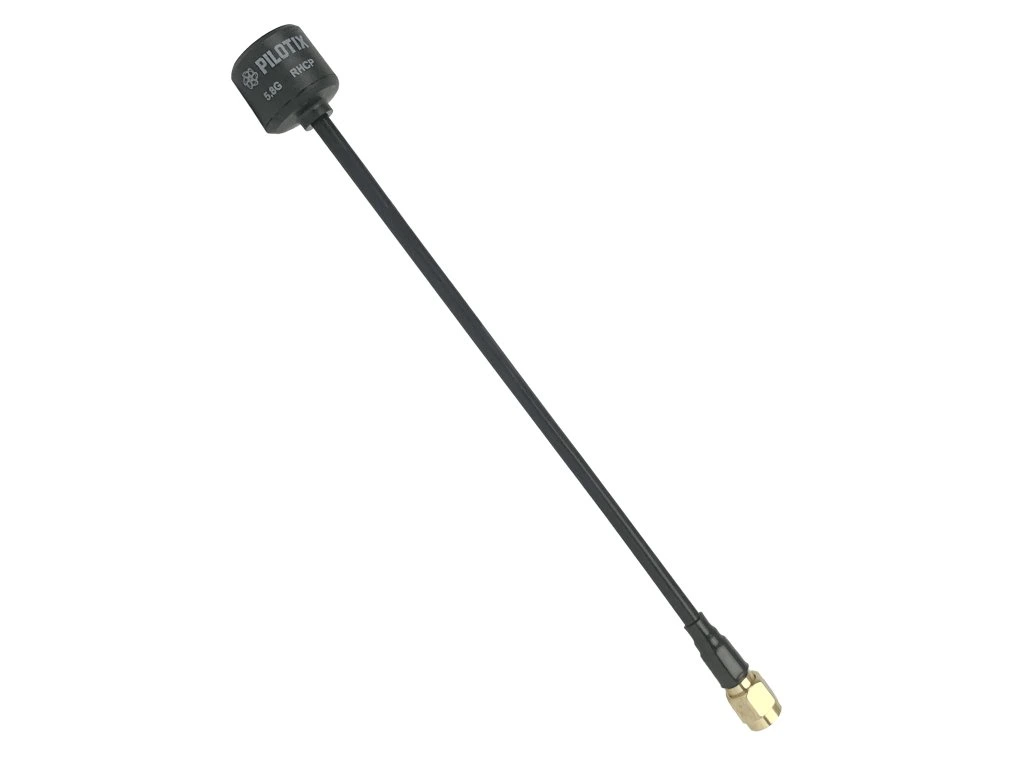

Antenna: Long 5.8G RHCP SMA

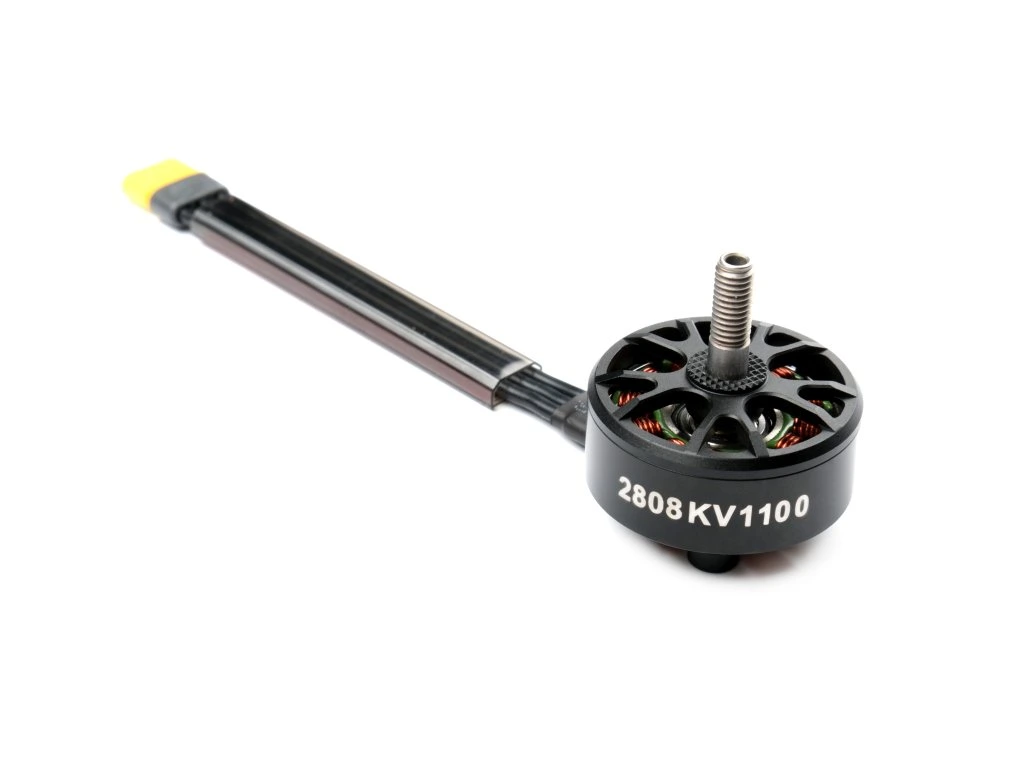

Motors: 2807-1300KV

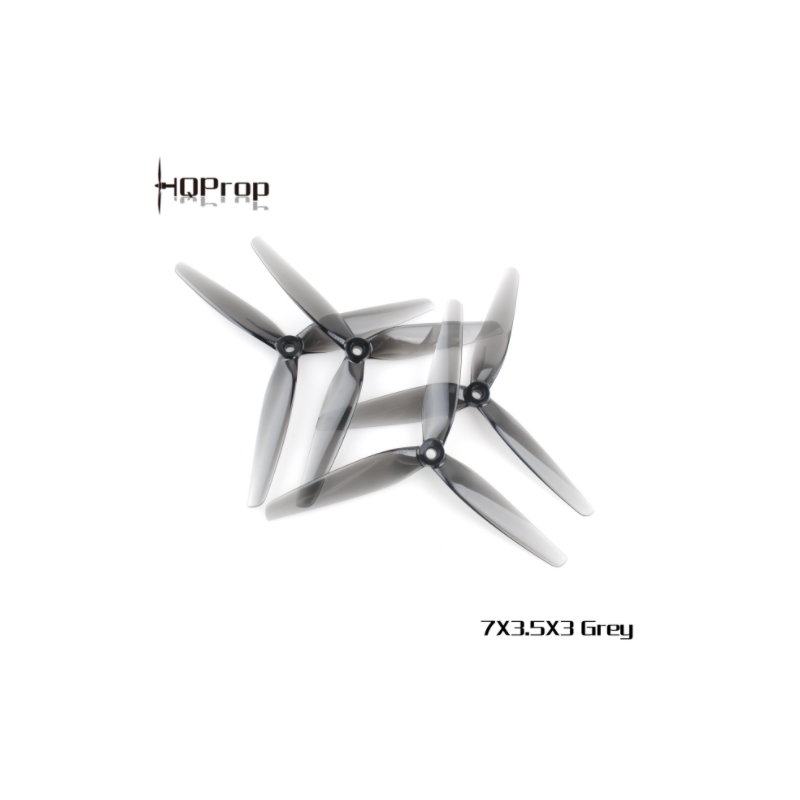

Propeller: HQProp 7X3.5X3

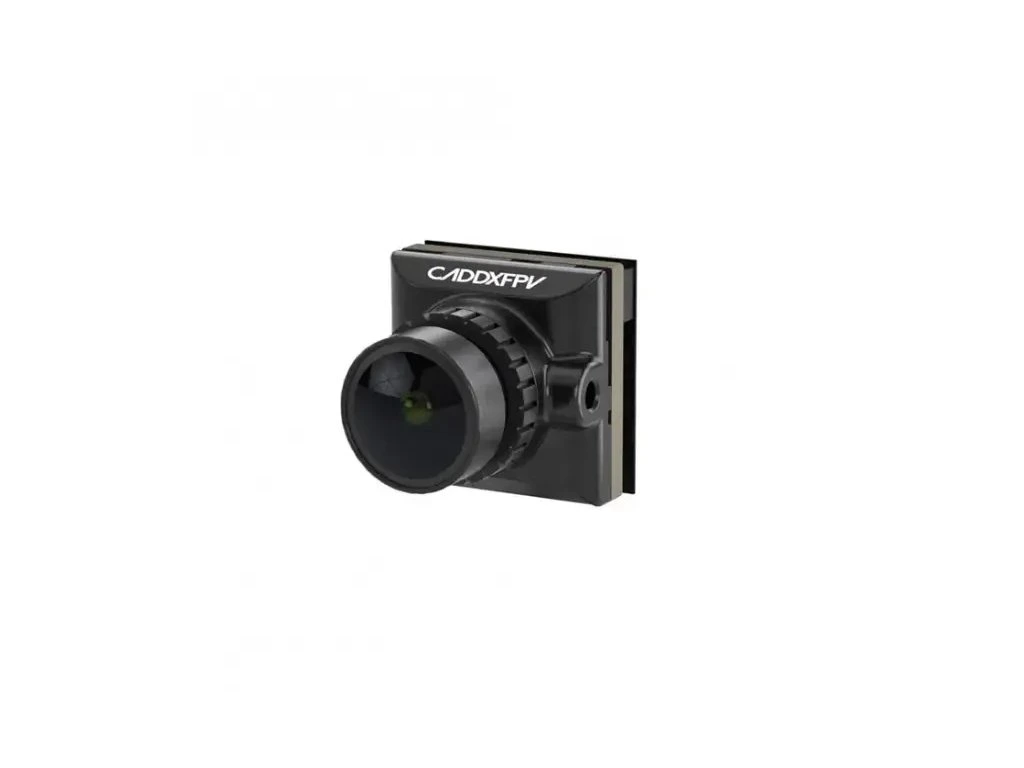

Camera: H1
Gimbal System: None

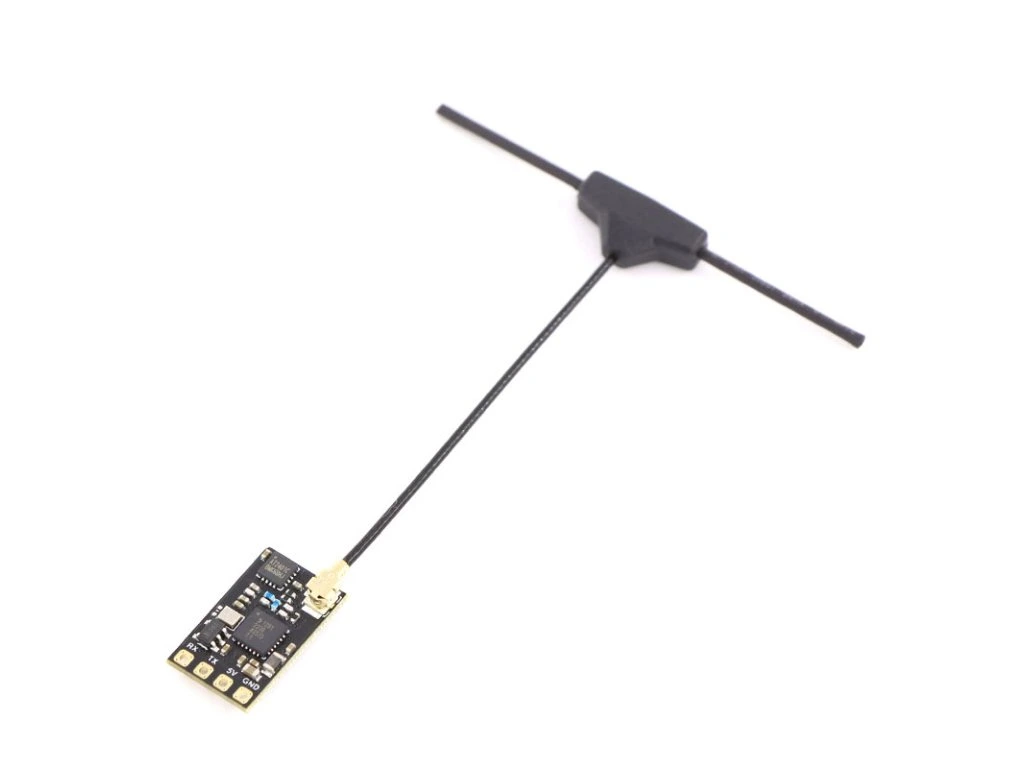

Receiver: ELRS 2,4G Nano w/ Antenna

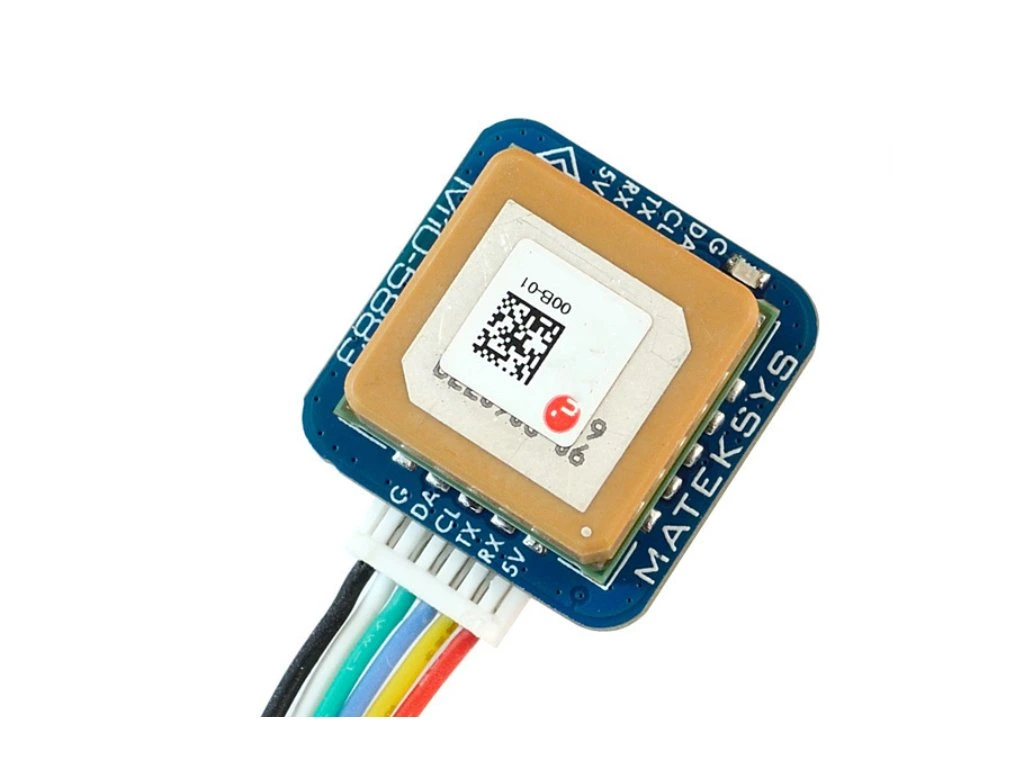

GPS: MATEKSYS M10Q-5883 with compass

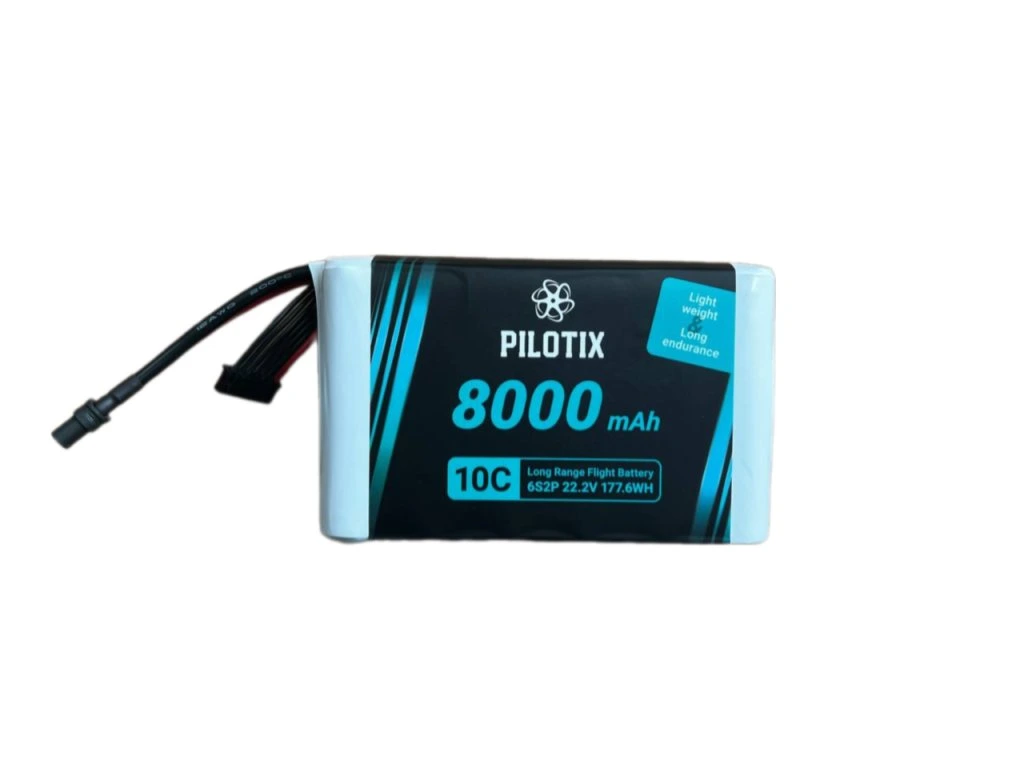

Battery: 6S 8000mAh Li-ion 10C
Flight time with 8000mAh battery:
35 minutes (no payload)
16 minutes (2.5kg payload)
22 minutes (2kg payload)
MAX Speed: 150km/h
Maximum flight altitude (MSL): 6000m
Maximum rising speed: 15m/s
Stable Working Temperature Range: -20℃ - 50℃
Payload: 2000-2500g
NB! This is a DIY (Do It Yourself) Kit that is delivered unassembled.
| Size | 7-inch |
| Protocol | ELRS 868/915MHz |
| Signal Type | Analog |
