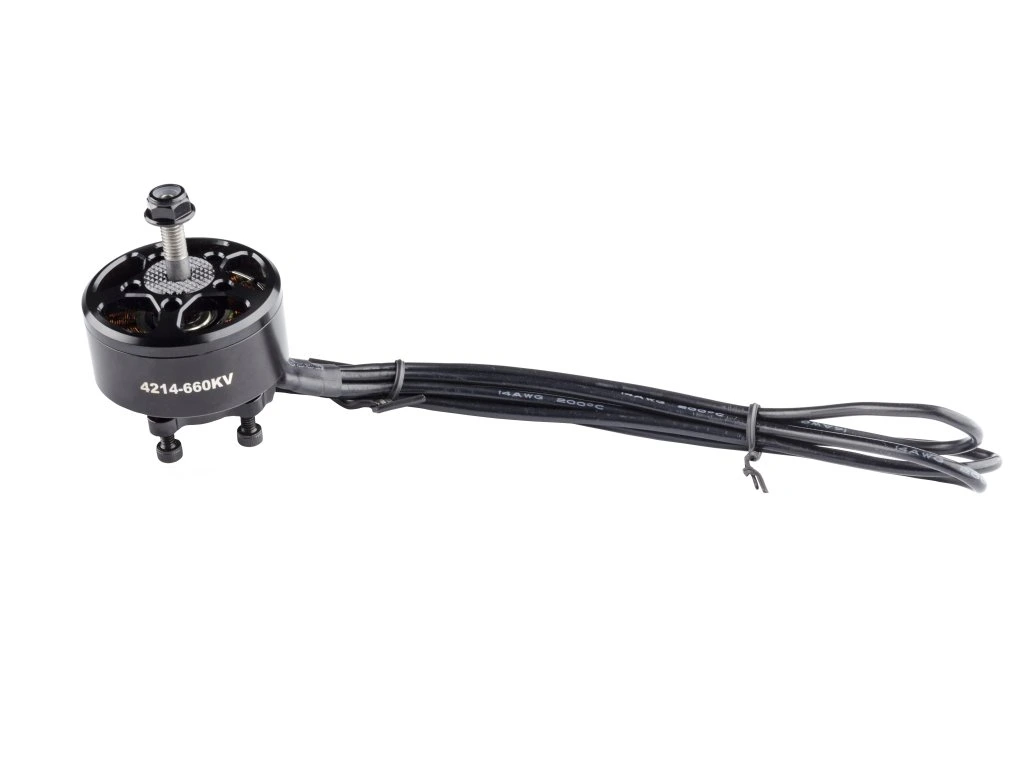

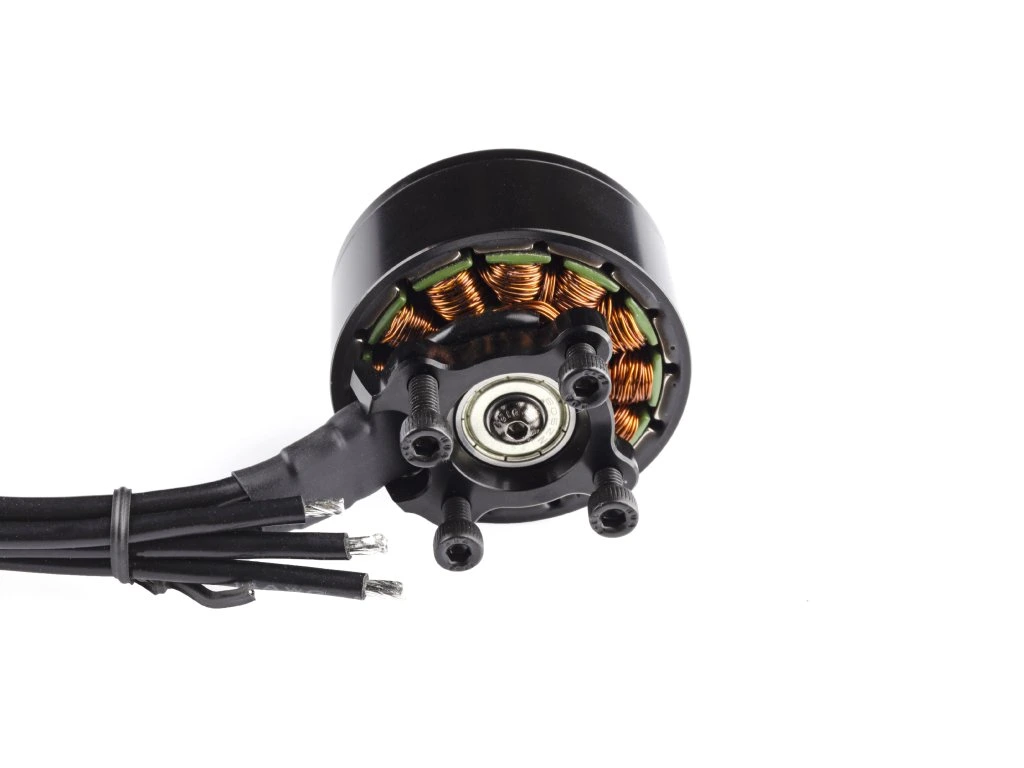

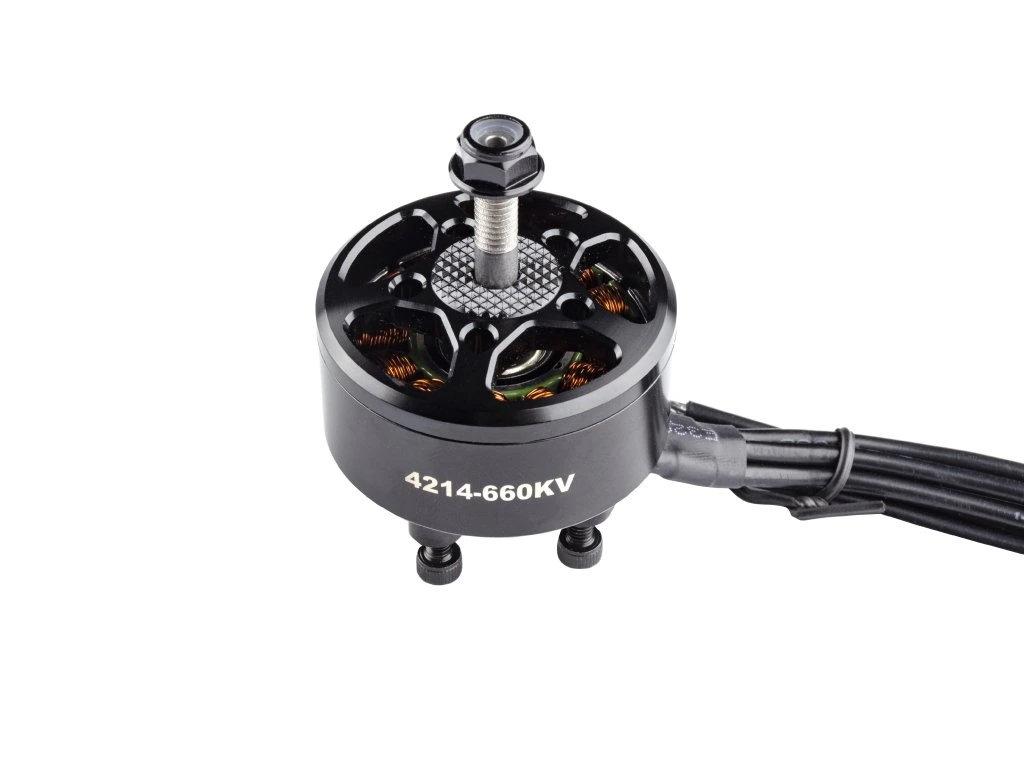

Motor Pilotix 4214-660KV

https://front42.com/web/image/product.template/246/image_1920?unique=b6cff14

Motor Basic Parameters:

- Model: F4214
- Slot & Pole: 12N14P
- Motor Size: Φ49 x H43.5mm
- Magnet Temperature Resistance: 120℃
- Enamelled Wire Temperature Resistance: 180℃
- Isolation Test: 500V
- Motor Mounting Dimensions: 4×M4 @ D30mm

Motor Technical Parameters:

- Battery Compatibility: 8S LiPo
- No-load Current: ≤1.5A
- Resistance: 23.41mΩ ±3%
- Wire Size: 14AWG
- Wire Length: 300mm ±3mm
- Dynamic Balance: ≤20mg
- Weight (With Wire): 124.9g

70.00 € 70.0 EUR 70.00 €

Not Available For Sale

(0.00 € / Units)

  • Brand
  • Motor KV
  • Power supply
  • Shaft diameter
  • Motor size
  • Motor type
  • Max thrust
  • Max power

This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders
Brand Pilotix
Motor KV 660KV
Power supply 8S
Shaft diameter 6mm
Motor size 4214
Motor type Brushless
Max thrust 5531g
Max power 1765.1W
