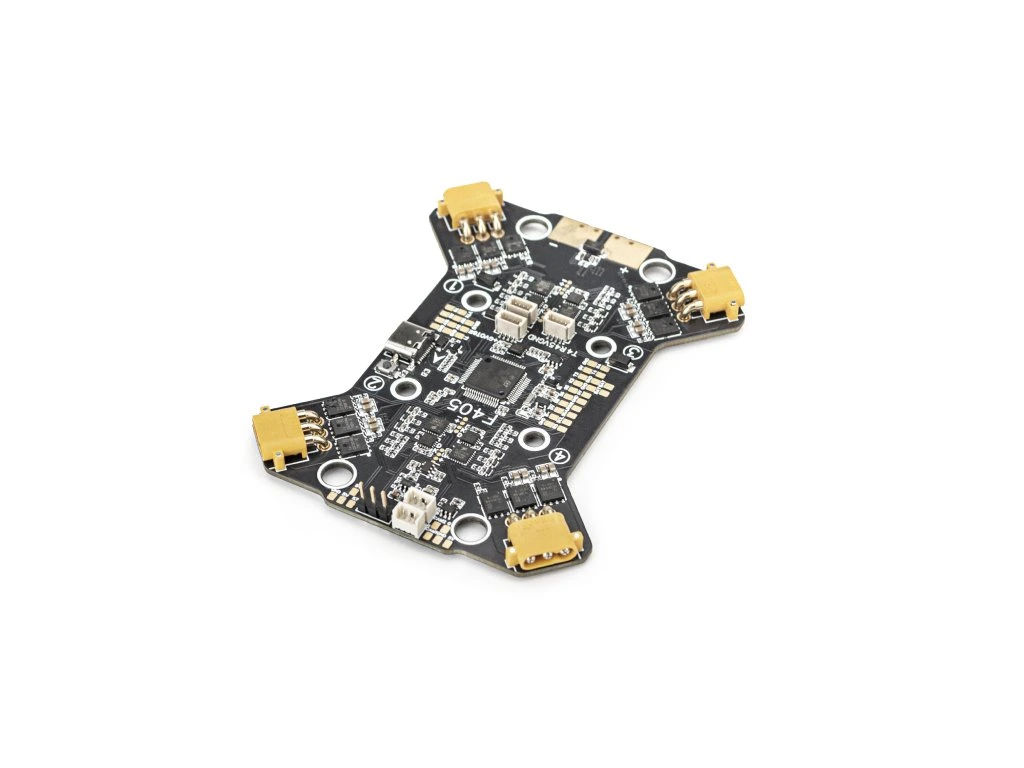

AIO Pilotix F405 65A V1
MCU: STM32F405
OSD: AT7456E
Barometer: SPL06
Blackbox: 16M Memory
UARTs: 5 Sets
ESC Signal: 8 Sets
BEC 5V: 2.2A
BEC 12V: 2.2A
TVS Protection: Yes
Software: Betaflight
CURR: Yes
Current: 65A
Peak Current: 75A
ESC Firmware: BLHeli_S/Bluejay
Protocol: PWM/Oneshot/DShot 150/300/600/MultiShot
Size: 79x100mm
| Brand | Pilotix |
| Mounting size | 30.5x30.5mm |
| Power supply | 3-6S |
| Processor type | F405 |
| IMU gyroscope | ICM42688P |
