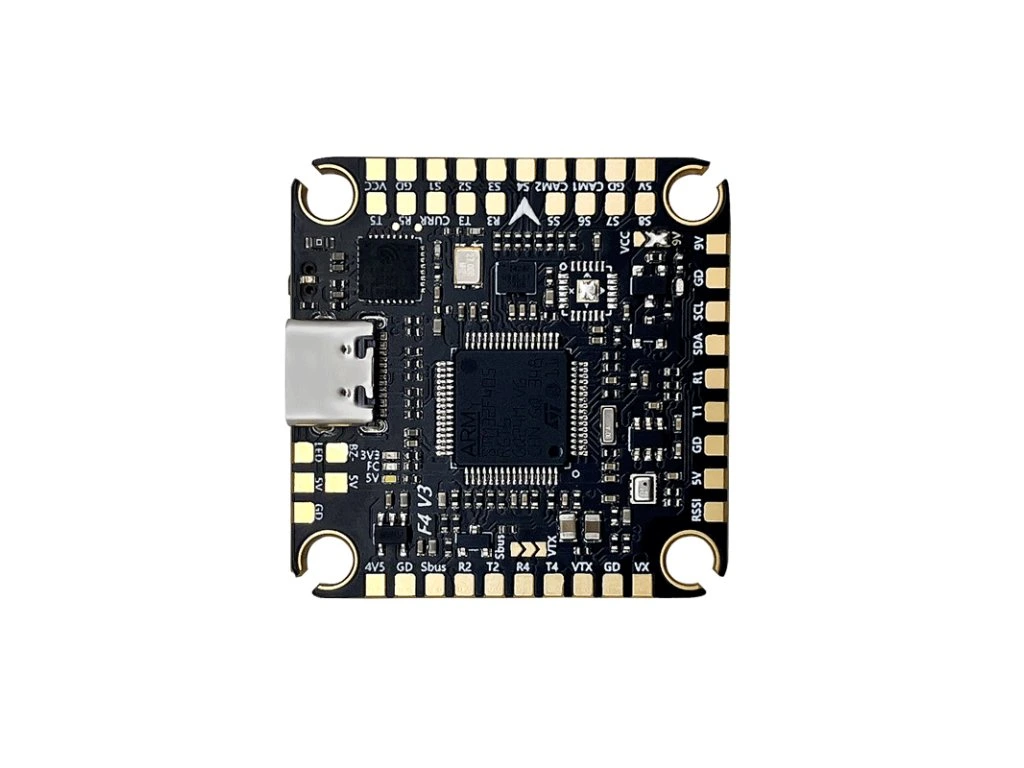

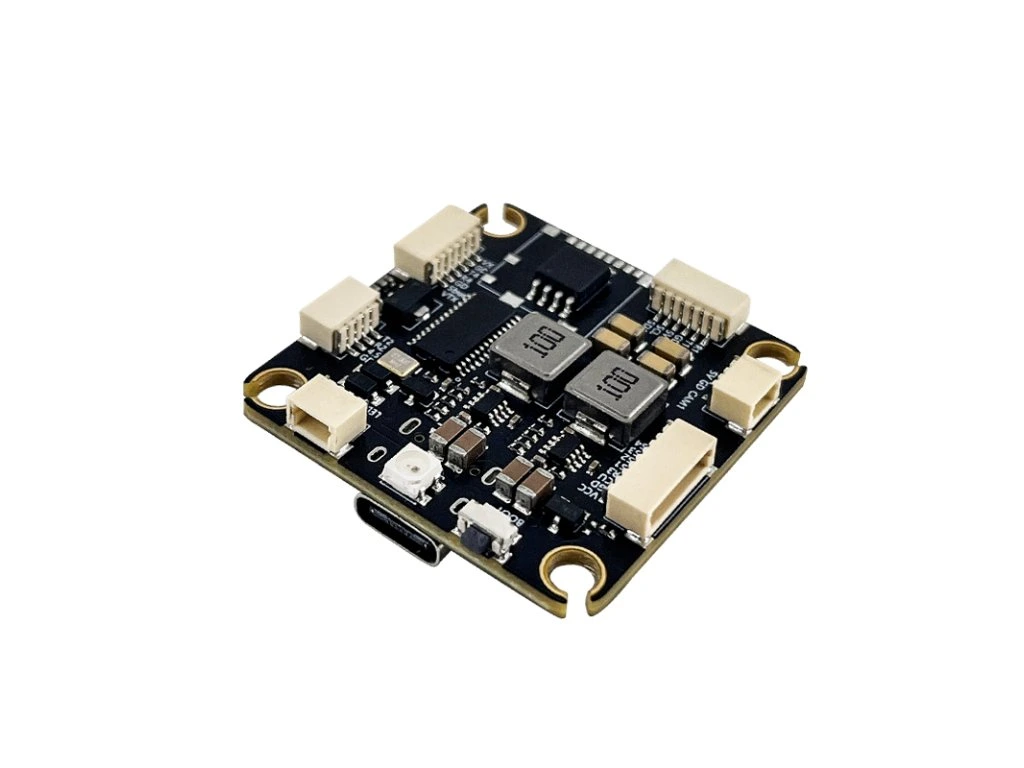

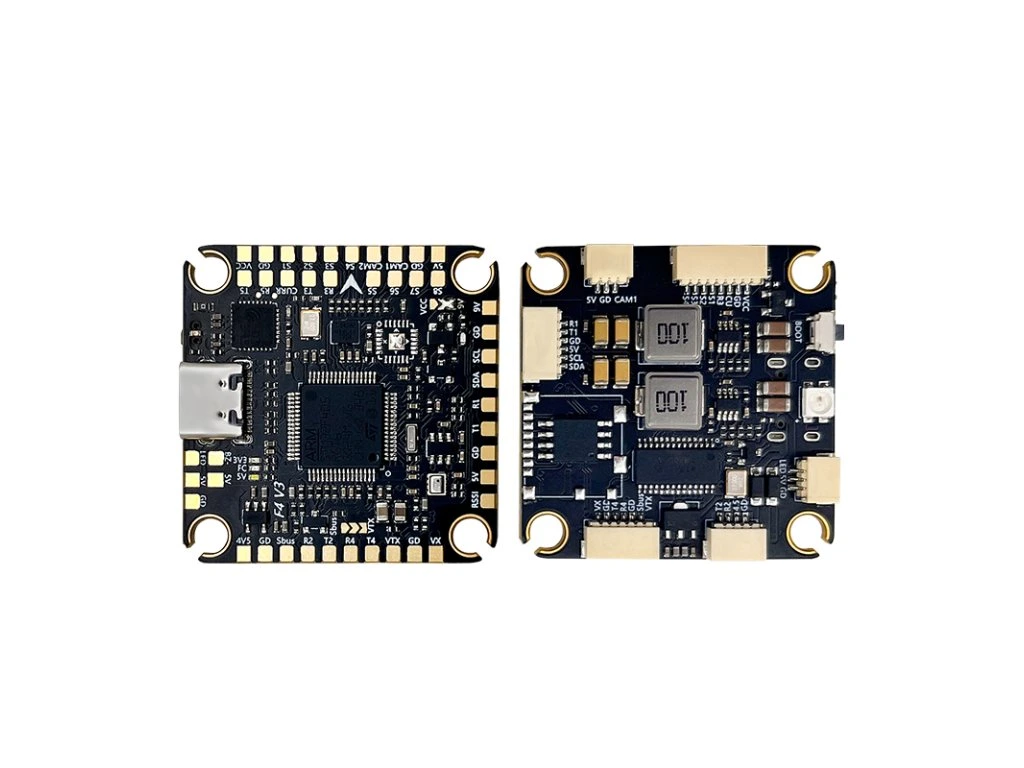

Flight controller Pilotix F405 V3 ICM42688
Barometer: SPL06, providing altitude data for better control during flight.
OSD: On-screen display supported, allowing real-time flight data overlay.
Black Box: 16MB onboard storage and microSD support for flight data logging.
Motor Output: 8 channels, supporting up to 8 motors.
LED Light Strip & Buzzer Support: Allows visual and audio feedback during flight.
Receiver Protocols: Compatible with a wide range of protocols including ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire, and DSMX.
Ports: 5-way universal serial port for connectivity flexibility.
Power Output: 5V/2.5A and 9V/3A power supplies for external devices like cameras or VTX (video transmitters).
DJI/Vista Digital: Supports DJI/Vista FPV systems for high-quality digital video transmission.
Camera Switching & Jumper Options: Provides flexibility in connecting and switching between SBUS and VTX, or 9V and VCC power supplies.
Weight & Dimensions: 9.6 grams, with an external size of 36mmx36mm and 30.5mmx30.5mm installation hole spacing.
Firmware: Compatible with F405V3/F405V3SD firmware.
| Brand | Pilotix |
| Mounting size | 30.5x30.5mm |
| Power supply | 3-6S |
| Continuous current | 60A |
| Processor type | F405 |
| IMU gyroscope | ICM42688 |
| MCU controller | STM32F405RGT6 |
| USB port type | Type-C |
