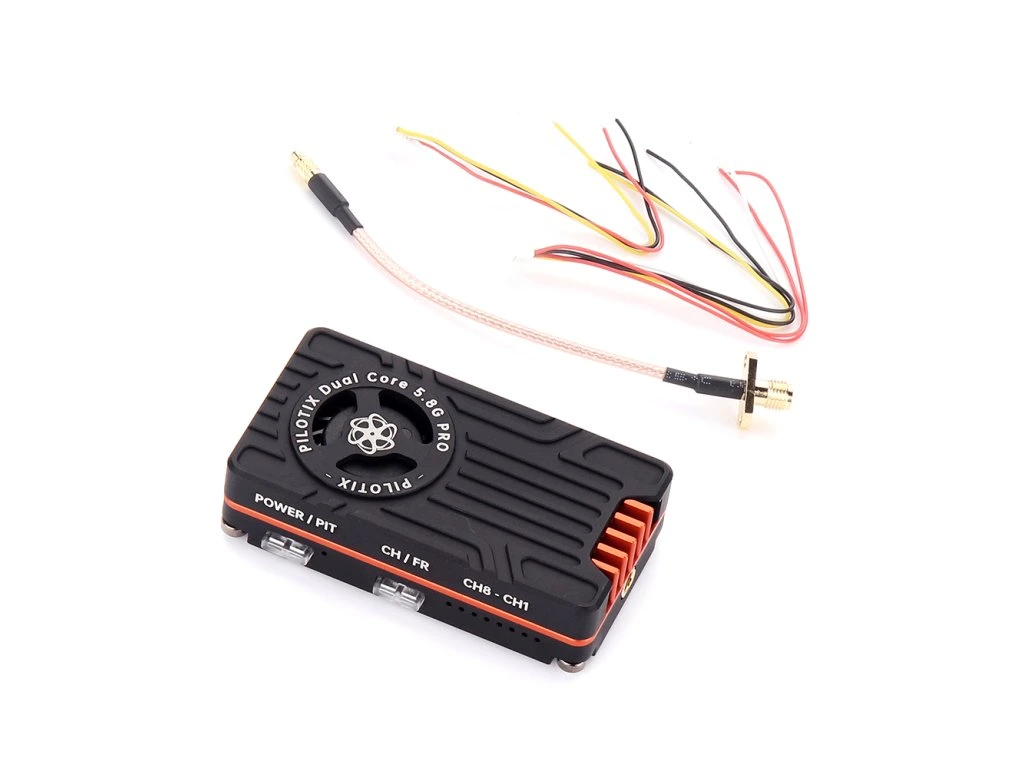

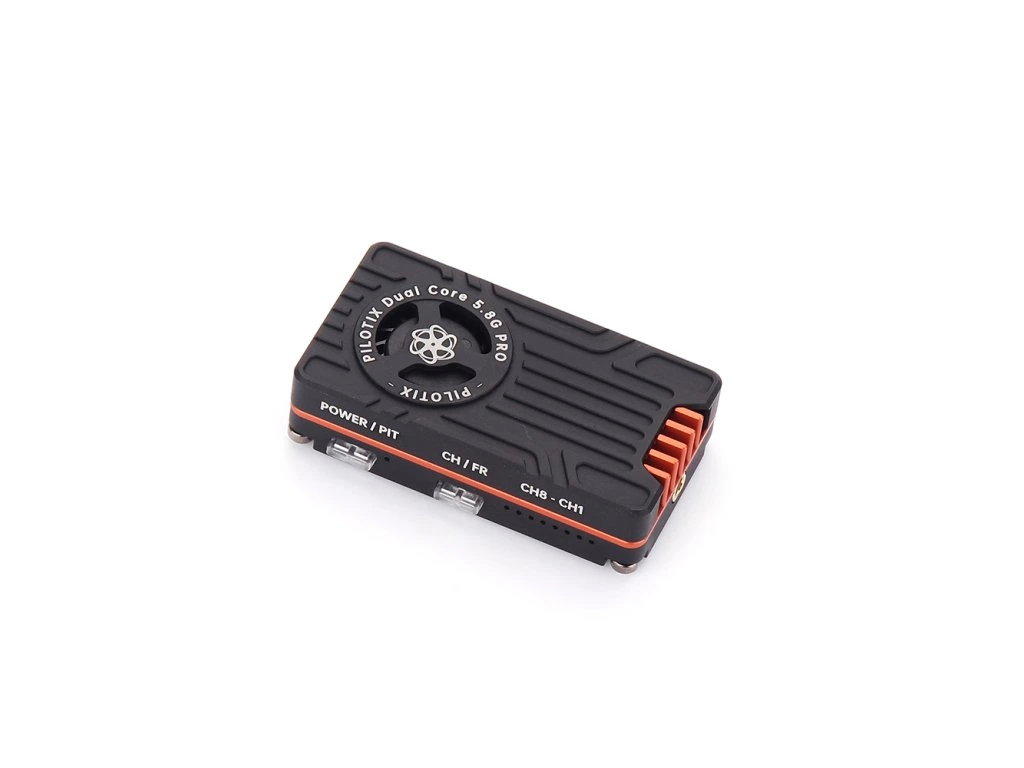

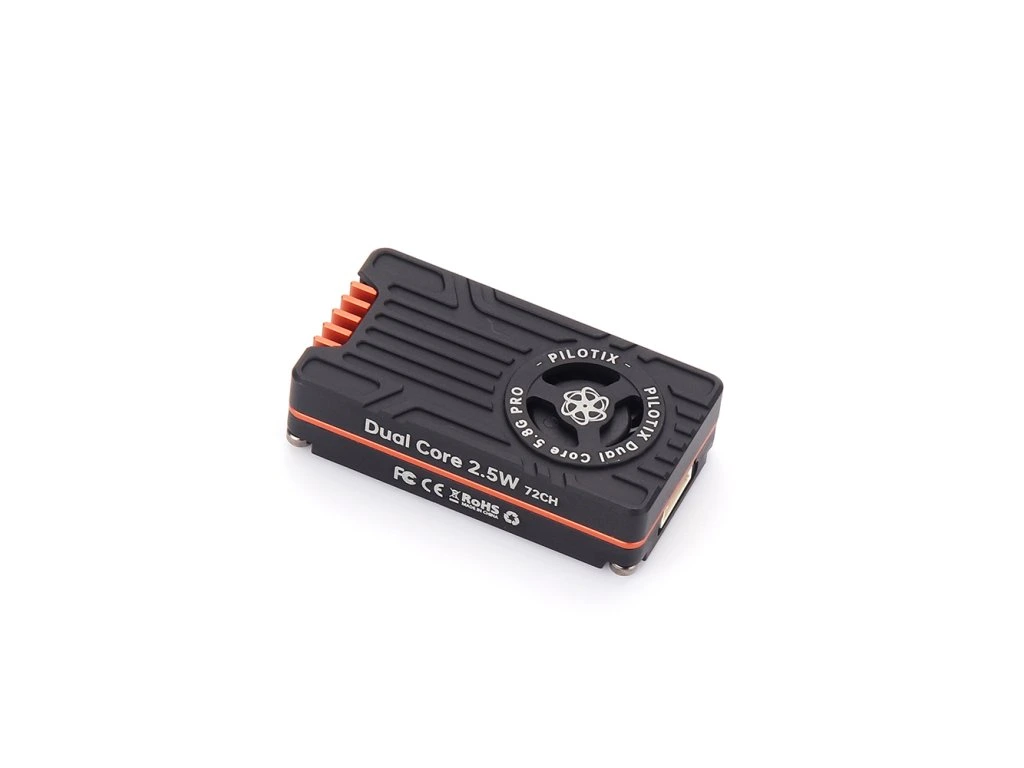

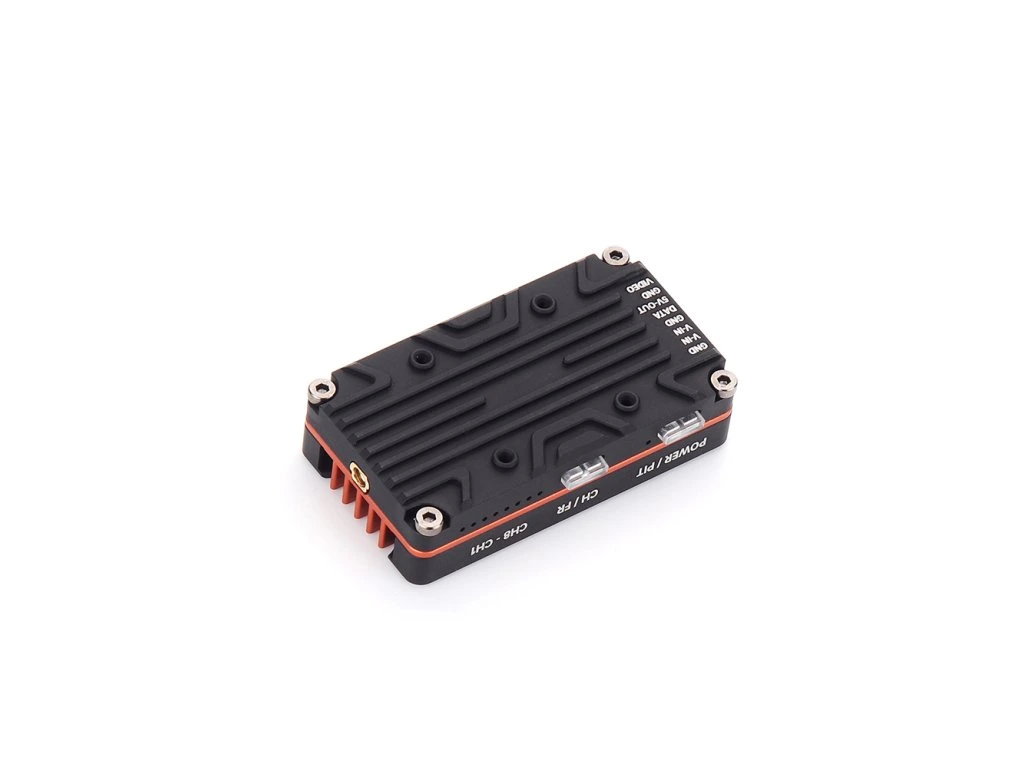

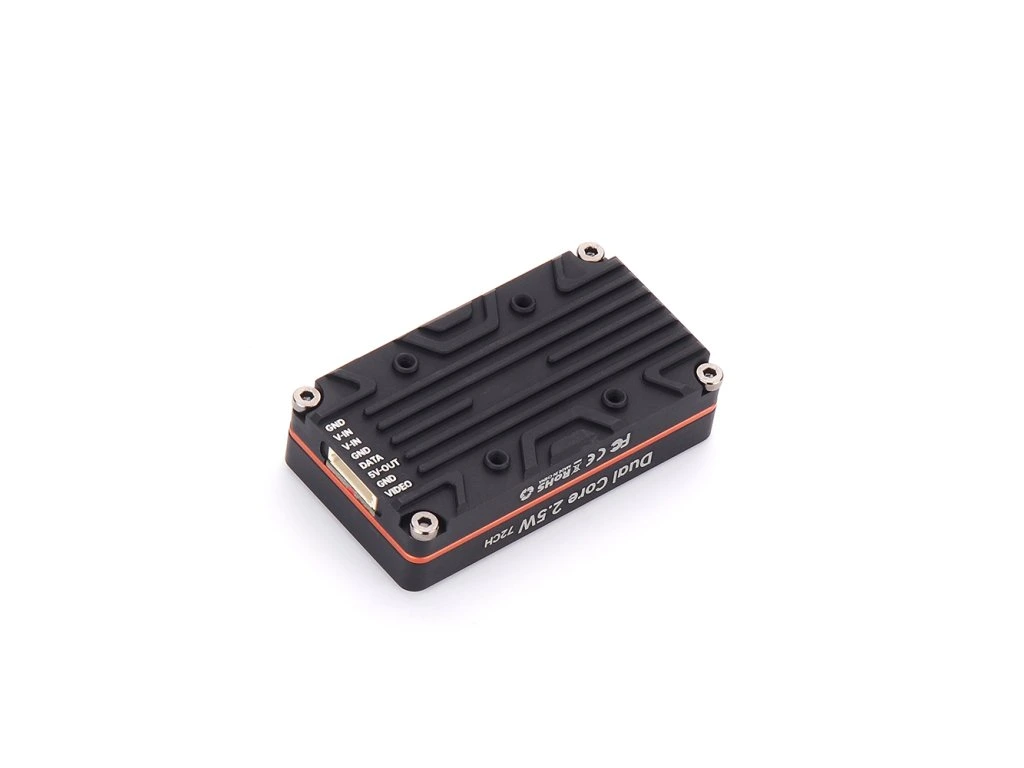

R2500 SE 4.9-5.8G 56CH 2500mW
Working Voltage: DC7-36V
Working Current:
- 680mA (12V/1000mW)
- 1400mA (12V/2500mW)
Operating temperature: -10~60°C
RF Impedance: 50Ω
Video Input Impedance: 75Ω
Antenna interface: MMCX
Input video amplitude: CVBS 0.8-1.2VP-P
Protocol: IRC
Number of Channels: 72CH (A-B-E-F-R-L-O-U-H-X)
Output Power: PIT-25mW-1000mW-2000mW-2500mW
Size: 53x29.4x14.4mm
Weight: 30g
100% original guarantee
Return within 30days
Free delivery on all orders
| Brand | Pilotix |
| Frequency | 5.8GHz |
| Mounting size | 20x20mm |
| TV system | PAL/NTSC |
