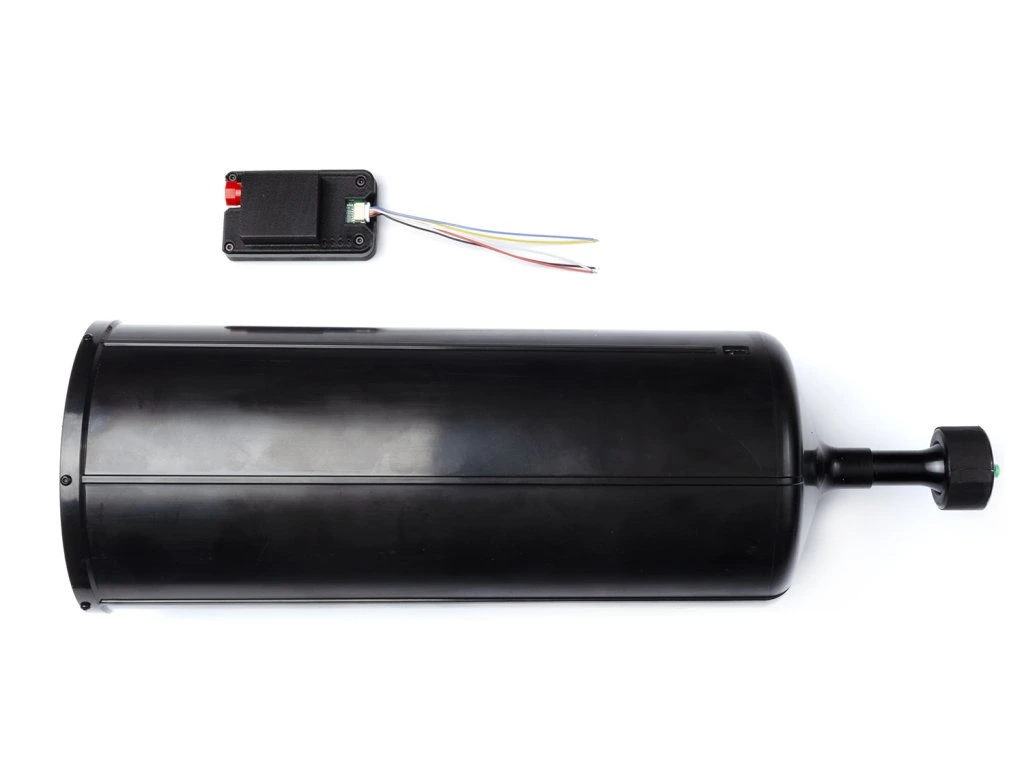

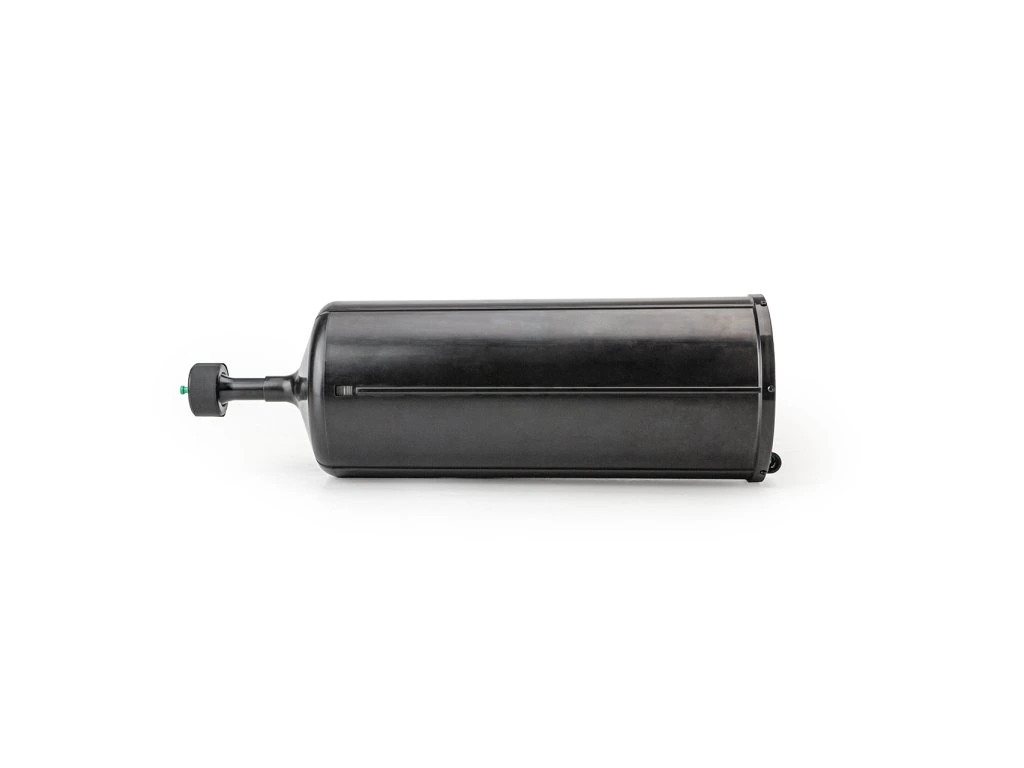

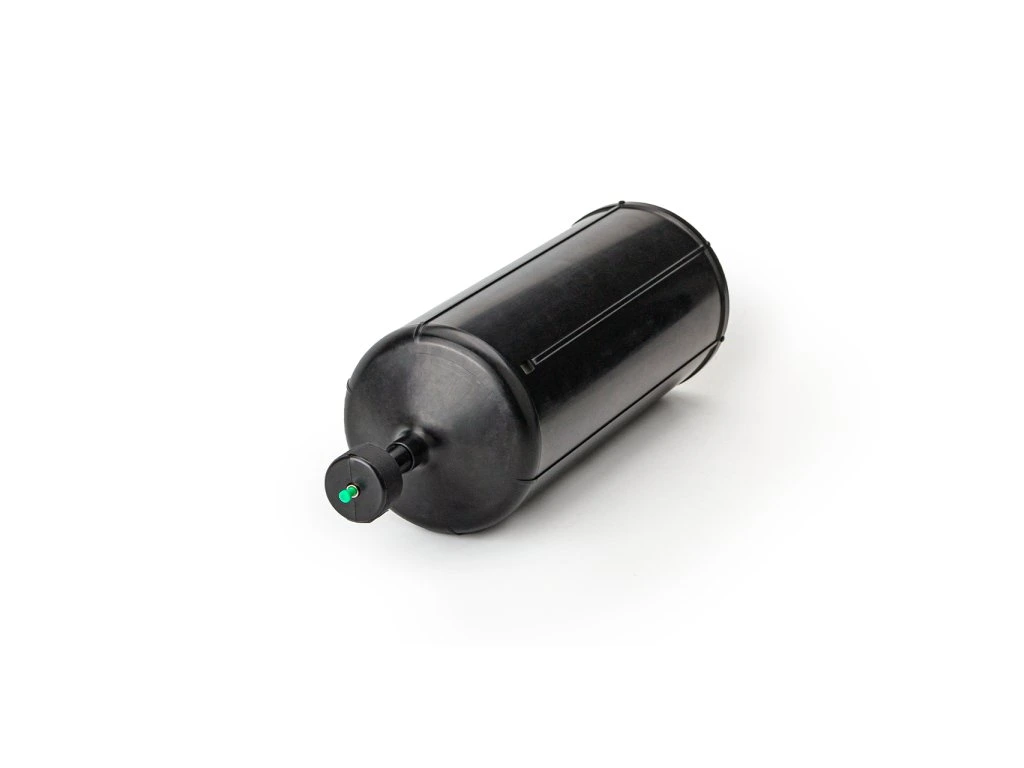

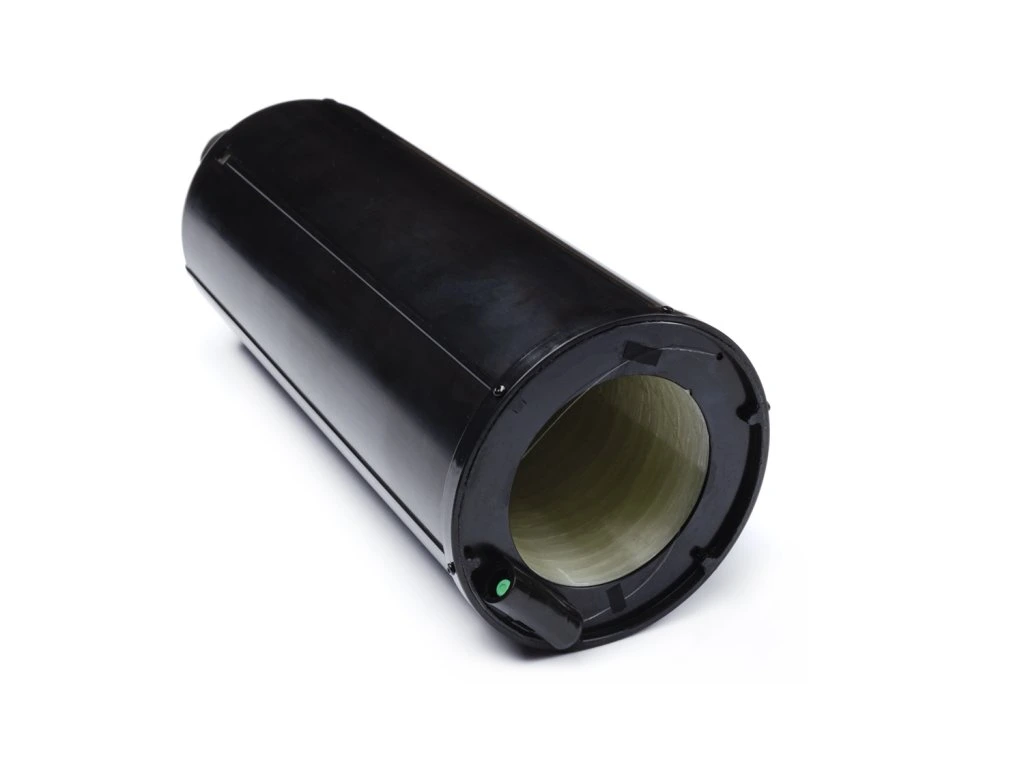

Module Pilotix With 15km Optic Fiber Roll SE
Model: 15km Optic Fiber Roll SE
Length: 15.3km
Fiber Diameter: 0.25mm
Decay:
- 1310nm ≤0.35dB/km
- 1550nm ≤0.21dB/km
Weight: 1403g ± 15g
Size: D 110mm x L 351mm

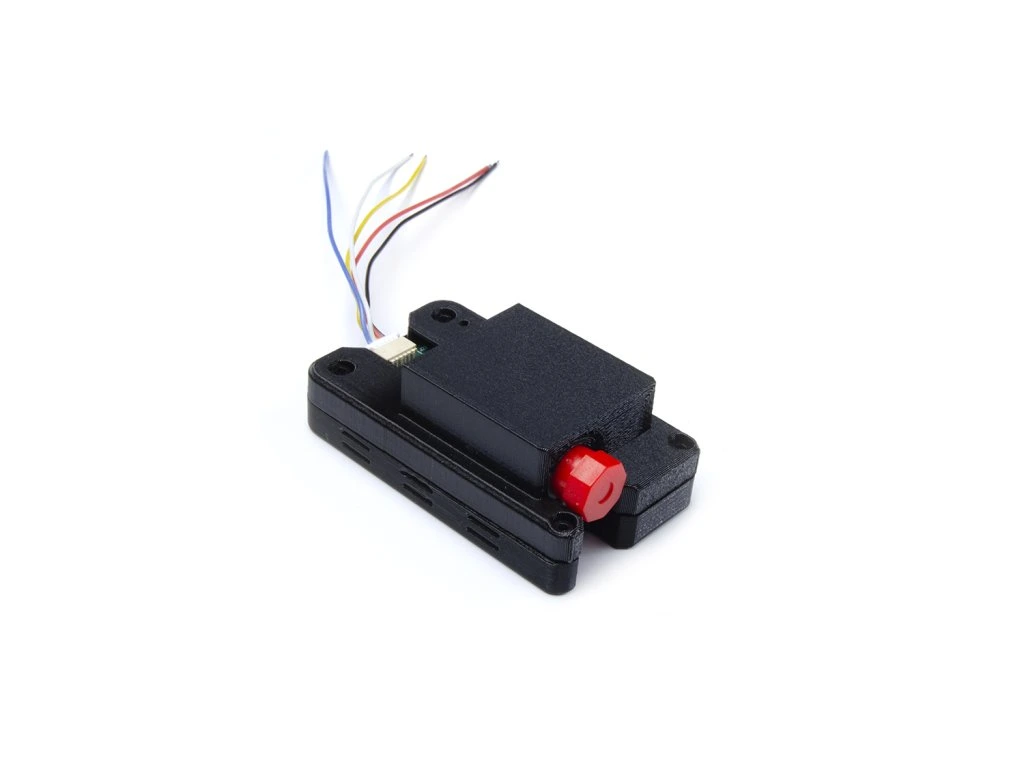

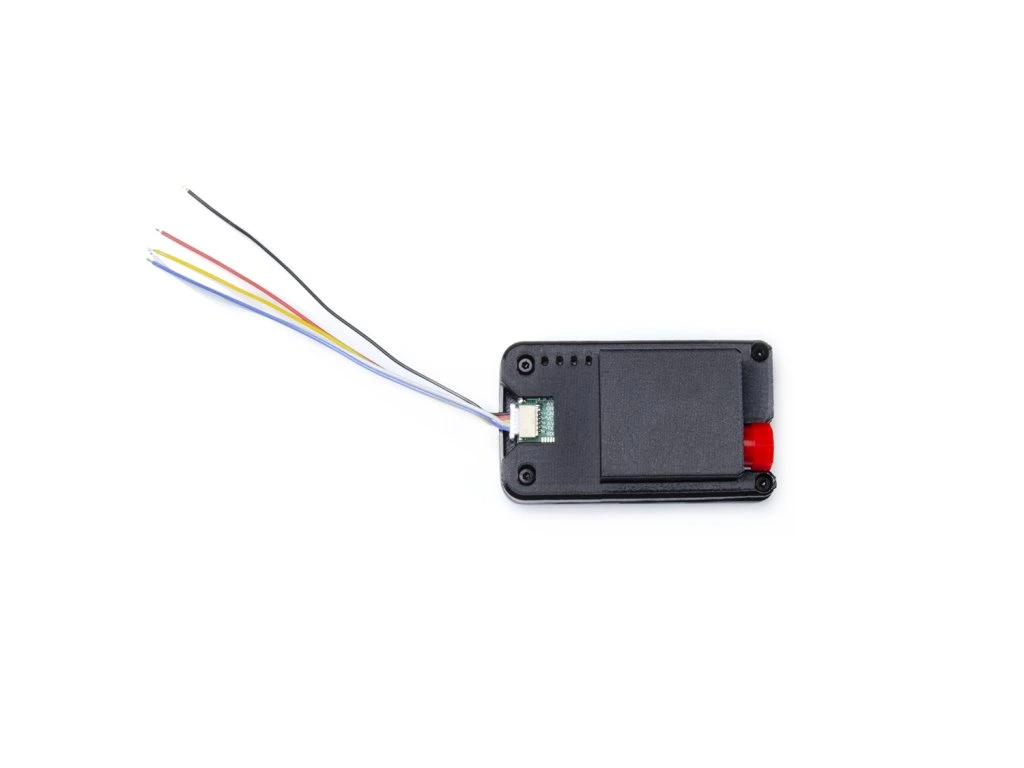

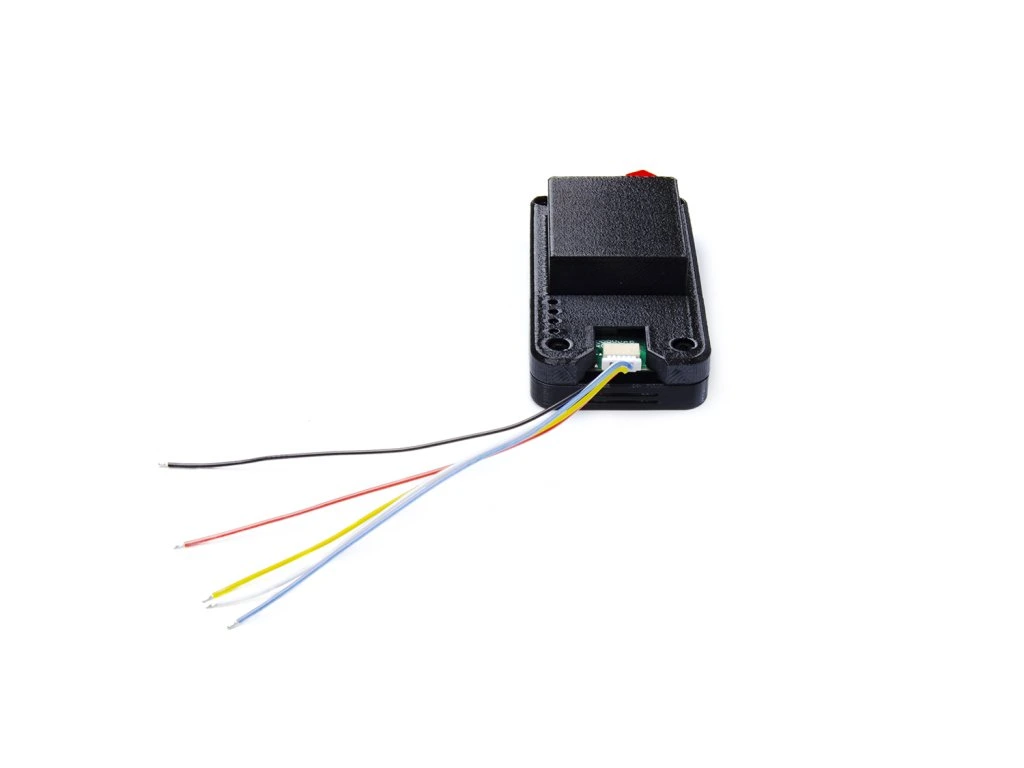

Fiber Optic Digitizing Module
Device Name: Sky End SE
Power Supply: 5.5V~26V
Body size: 63x37x23mm
Body weight: 31±2g
Fiber Optic Interface: FC Interface
Fiber Type: Single Mode - Single Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data format: TTL/SBUS
Speed: 0~1Mbps
Wavelength single mode: 1310 (9/125μm) +1550
Transmission distance: single-mode fiber up to 20km
| Brand | Pilotix |
