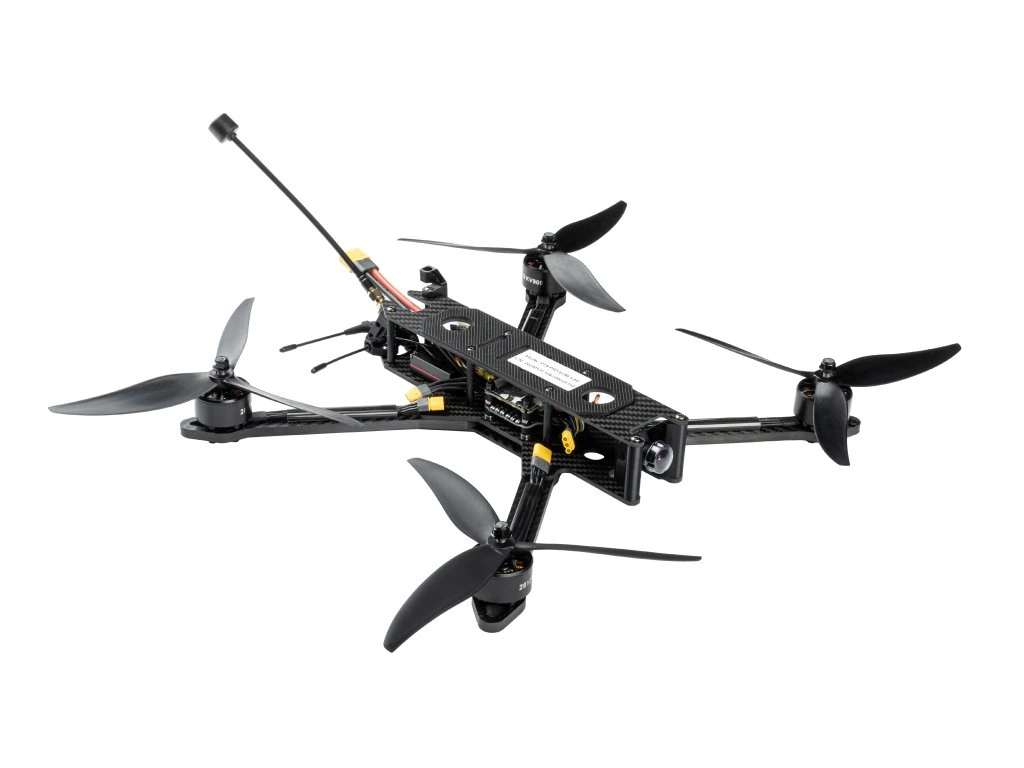

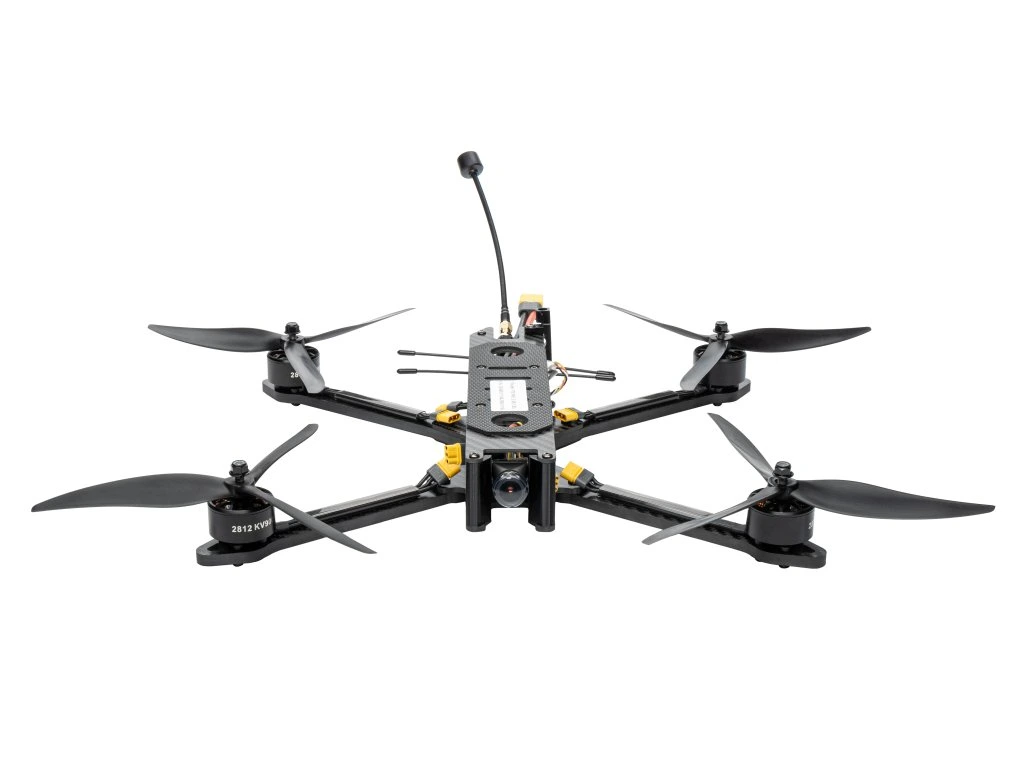

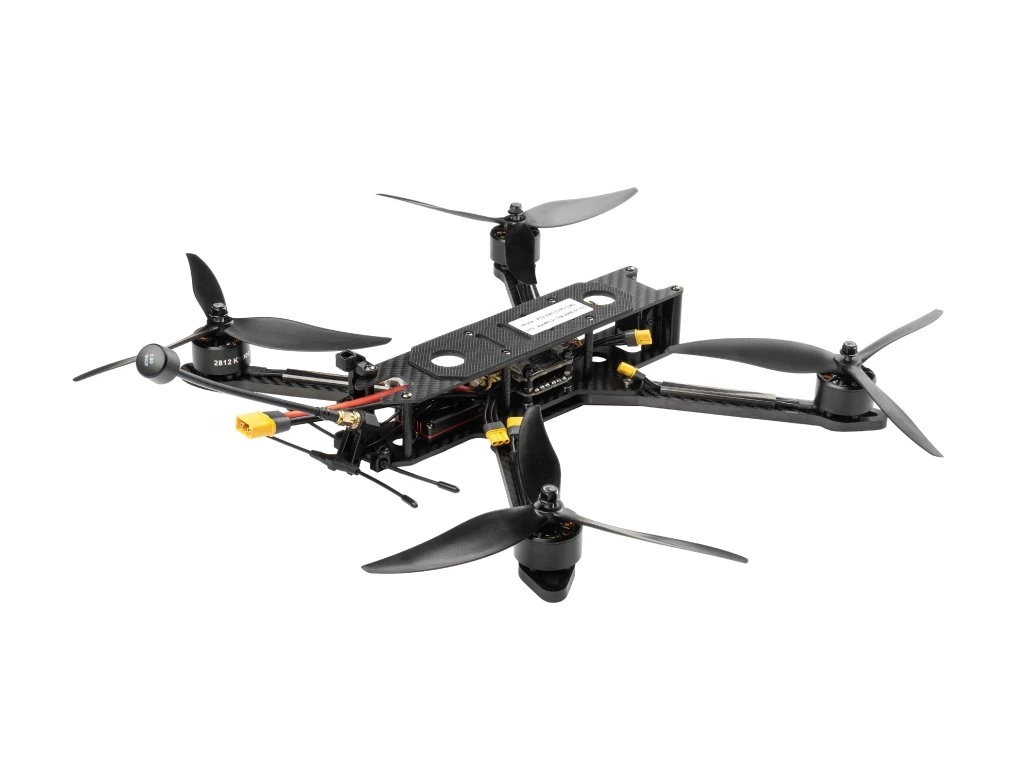

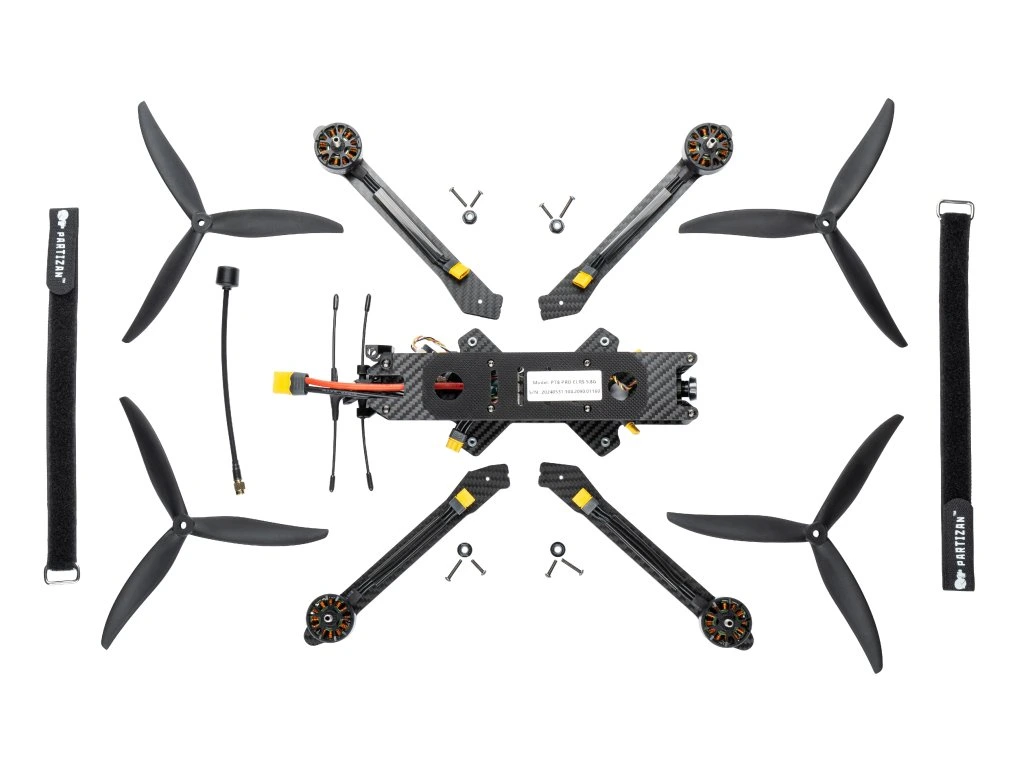

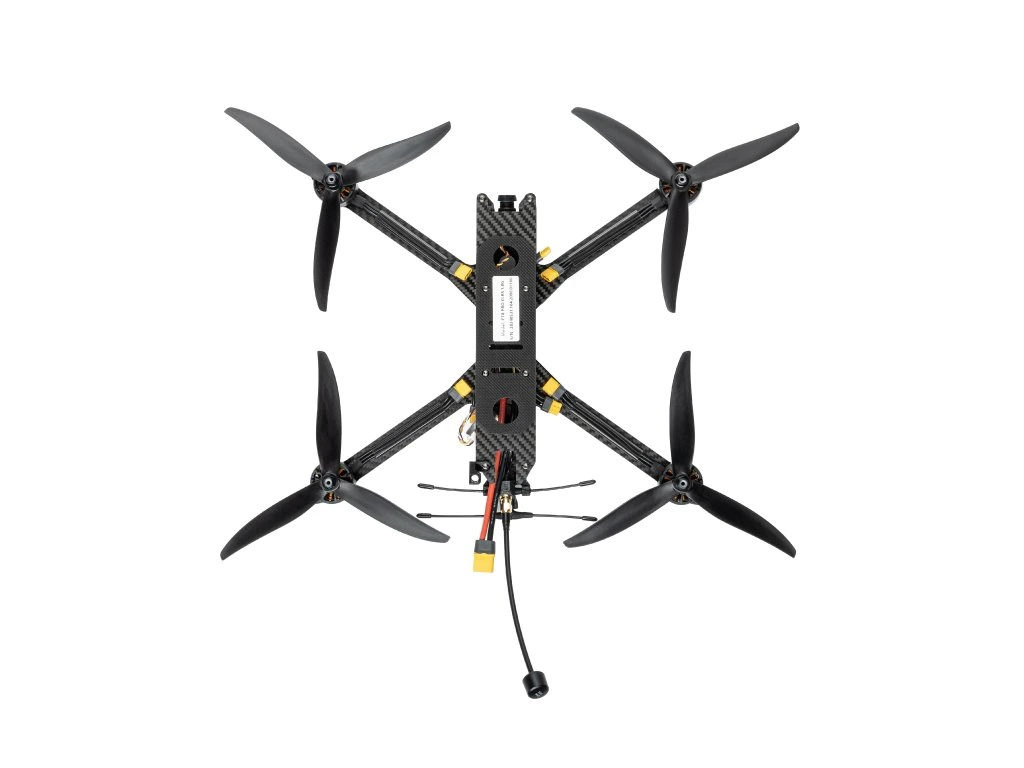

FPV Drone Partizan PT8 PRO ELRS 5.8G 2.5W
Dimensions: 317x270x50mm
Weight: 700g
Wheelbase: 358mm
Arm thickness: 6mm
Bottom/top plate thickness: 2mm
FC: Partizan F405 ICM42688P gyro
Firmware: Betaflight 4.4.3
ESC: Partizan BLS 60A 4IN1 ESC
VTX: 5.8G 2.5W
VTX antenna: Partizan 160mm RHCP SMA antenna
Motor: Partizan 2812 900kv(6S)
Propeller: GEMFAN 8060-3
Camera: Caddx Ratel 2 Pro
Gimbal System: none
Receiver: ELRS 915Mhz Diversity RX
GPS: none
Recommended Battery: 6S 8000Mah Lipo
Flight time with 8000mah battery:
- 35 minutes (no payload)
- 16 minutes (2.5kg payload)
- 22 minutes (2kg payload)
MAX Speed: 150km/h
Maximum flight altitude (MSL): 6000m
Maximum rising speed: 15m/s
Stable Working Temperature Range: -20℃ - 50℃
Payload: 2000-2500g
| Brand | Partizan |
| Protocol | ELRS 868/915MHz |
| Size | 8-inch |
| Drone type | Long Range |
| Drone power | 6S |
| Signal Type | Analog |
