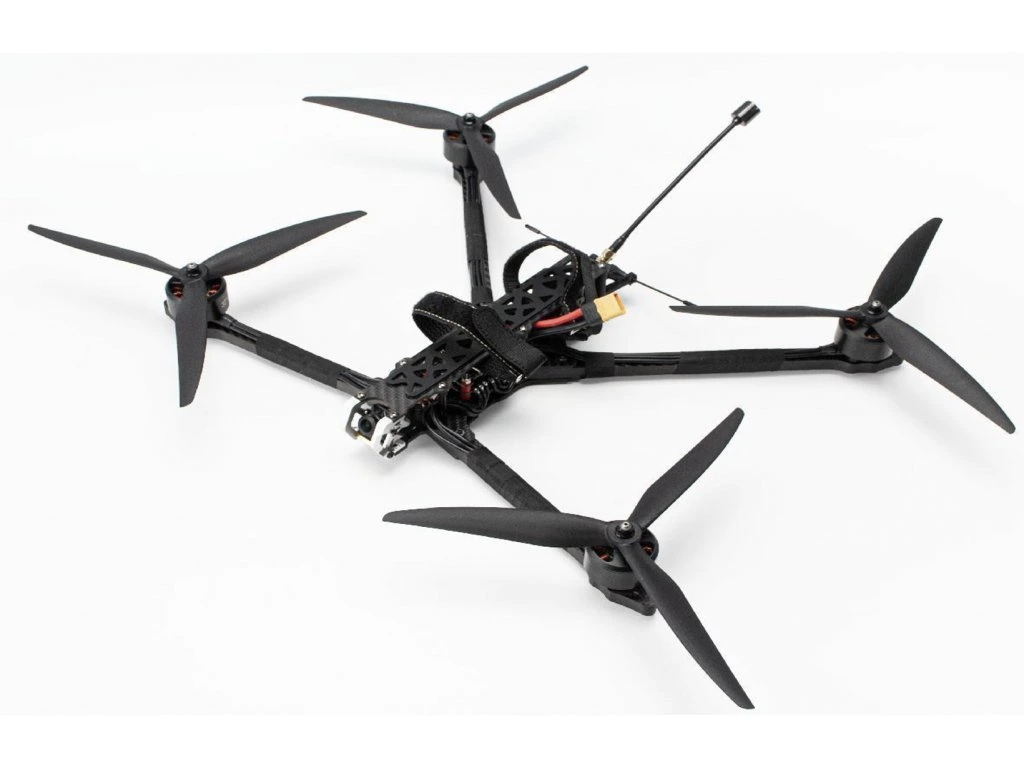

FPV Drone Partizan Rocky10 Pro ELRS Ratel Pro 5.8G 3.0W (+SERVO)
Frame: 10” Partizan DC Foldable Frame
Dimensions: 400x315x60mm
Weight: 840g
Arm plate thickness: 10mm
Bottom/top plate thickness: 3mm
FC: Partizan F405 V2 MPU6500 Gyro
Firmware: Betaflight 4.4.2
ESC: Partizan BLheli-S 60A continue, 70A burst
VTX: 5.8G 3.0W
VTX antenna: Ultra Long 5.8G RHCP SMA 160mm
Motor: Partizan 3214 720kv
Propeller: GEMFAN 1050-3
Camera: Caddx Ratel PRO 1500tvl
Gimbal System: 9g Servo tilt gimbal
Receiver: ELRS 915MHz
Recommended Battery: 6S 8000Mah Lipo, 21700 6S 8000mah
Flight time with 8000mah battery:
- 40 minutes (no payload)
- 22 minutes (1.2kg payload)
- 16 minutes (2kg payload)
- 10 minutes (3kg payload)
MAX Speed: 140km/h
Stable Working Temperature Range: -10° to 40° C (14° to 104° F)
Payload: up to 3.0kg
| Brand | Partizan |
| Protocol | ELRS 868/915MHz |
| Size | 10-inch |
| Drone type | Long Range |
| Drone power | 6S |
| Signal Type | Analog |
| Wheelbase | 426mm |
