FPV Drone Partizan PT7 TBS 5.8G 2.5W
Dimensions: 265x230mm
Weight: 196g
Arm thickness: 6mm
Top plate: 2.0mm
Bottom plate: 3.0mm
Stack: F405 (F4 FC + 60A ESC 4in1)
VTX: 5.8G 2.5W VTX

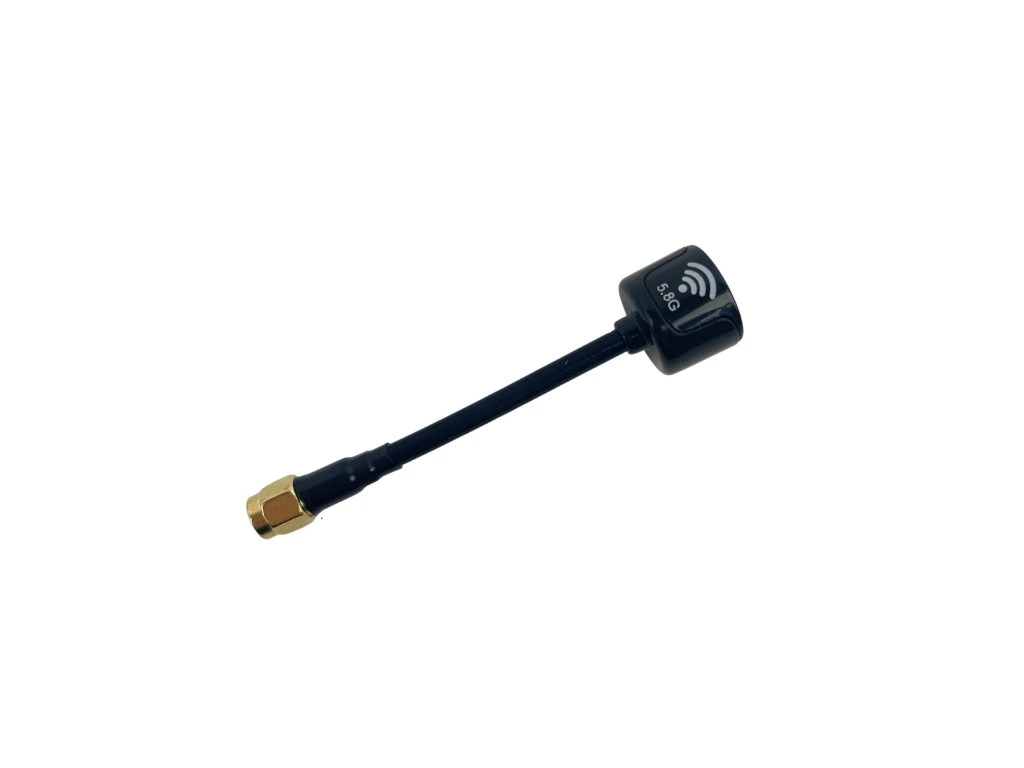

VTX antenna: Ultra Long 5.8G RHCP SMA 160mm

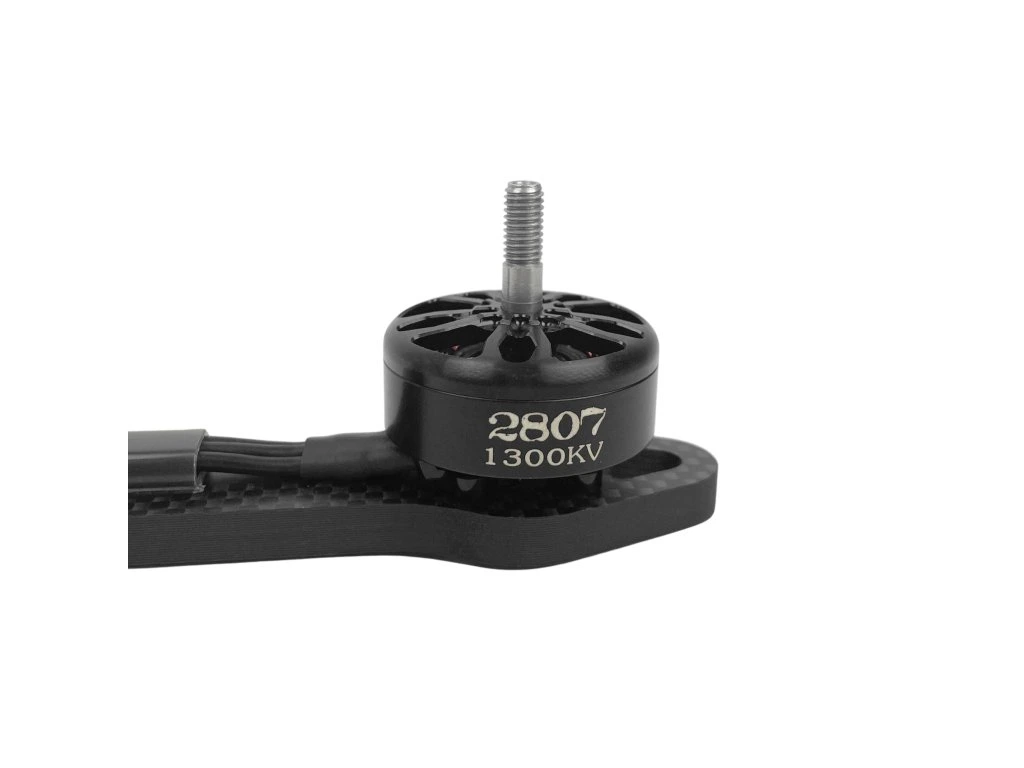

Motors: 2807 1300KV

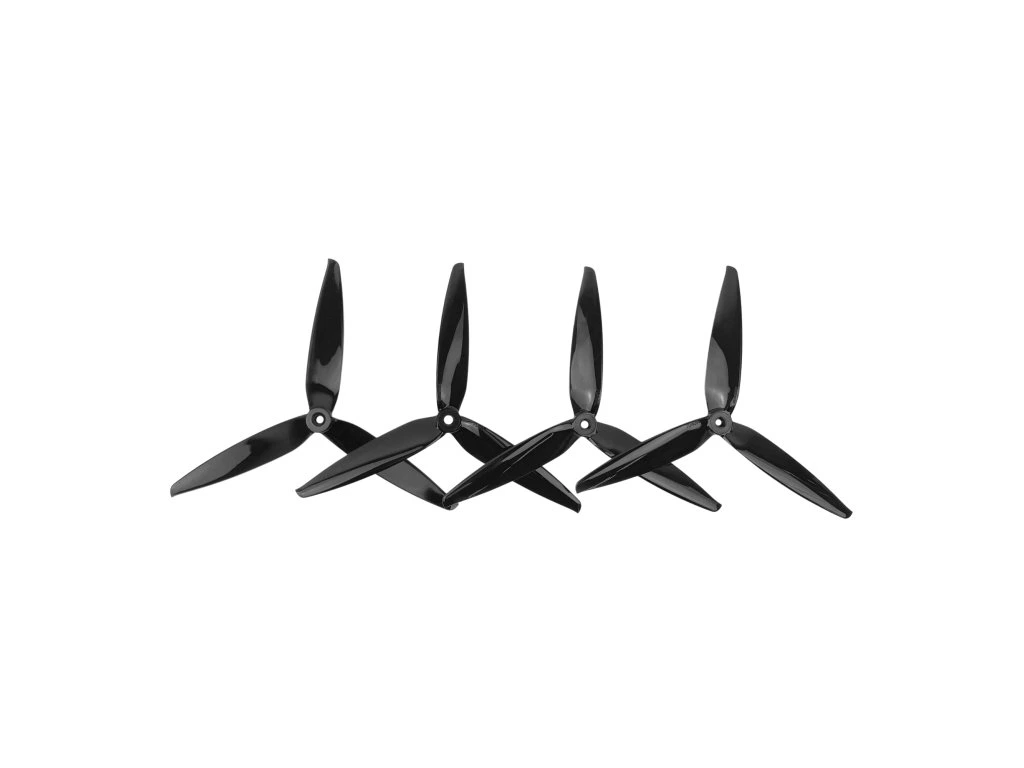

Propeller: Gemfan 7040-3
Camera: Caddx Ratel 2
Gimbal System: None
Receiver: TBS XF Nano SE 915MHz RX
GPS: None
Recommended Battery: 6S-6000MAH 60C
Flight time with 8000mah battery:
- 22min (no load)
- 16min (Payload 0.5kg)
- 11min (Payload 1.5kg)
MAX Speed: 139 km/h
Maximum flight altitude (MSL): 1500m
Maximum rising speed: 5m/s
Stable Working Temperature Range: -10°－50°
Payload: up to 1.5kg
| Brand | Partizan |
| Size | 7-inch |
| Drone type | Long Range |
| Signal Type | Analog |
