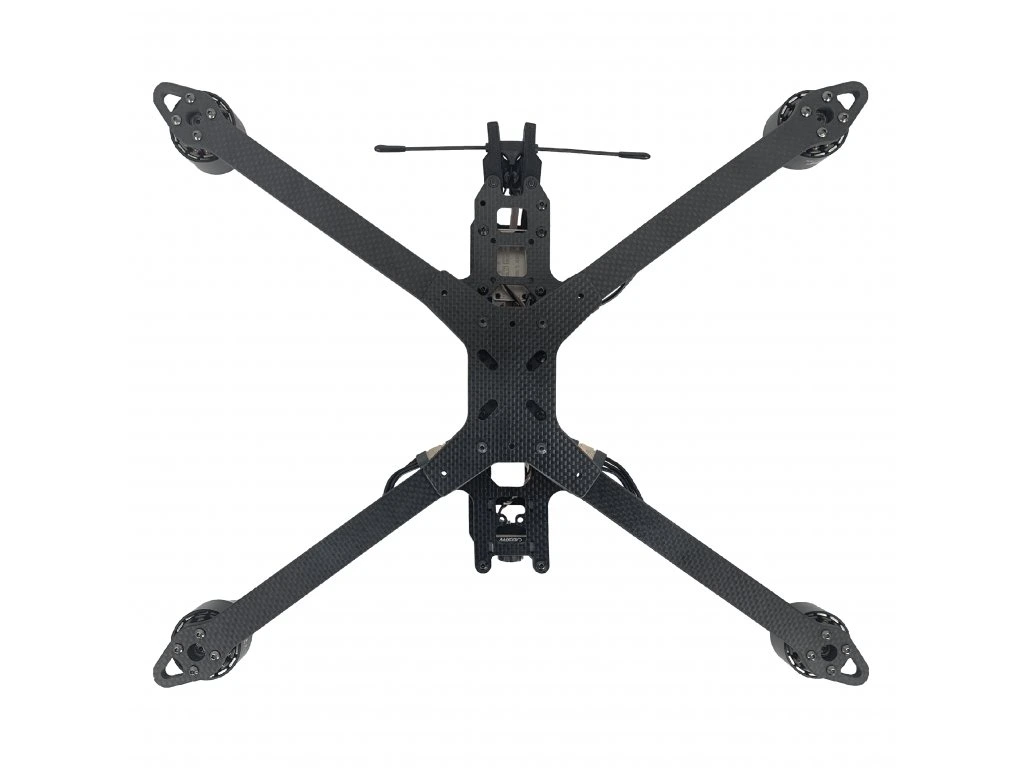

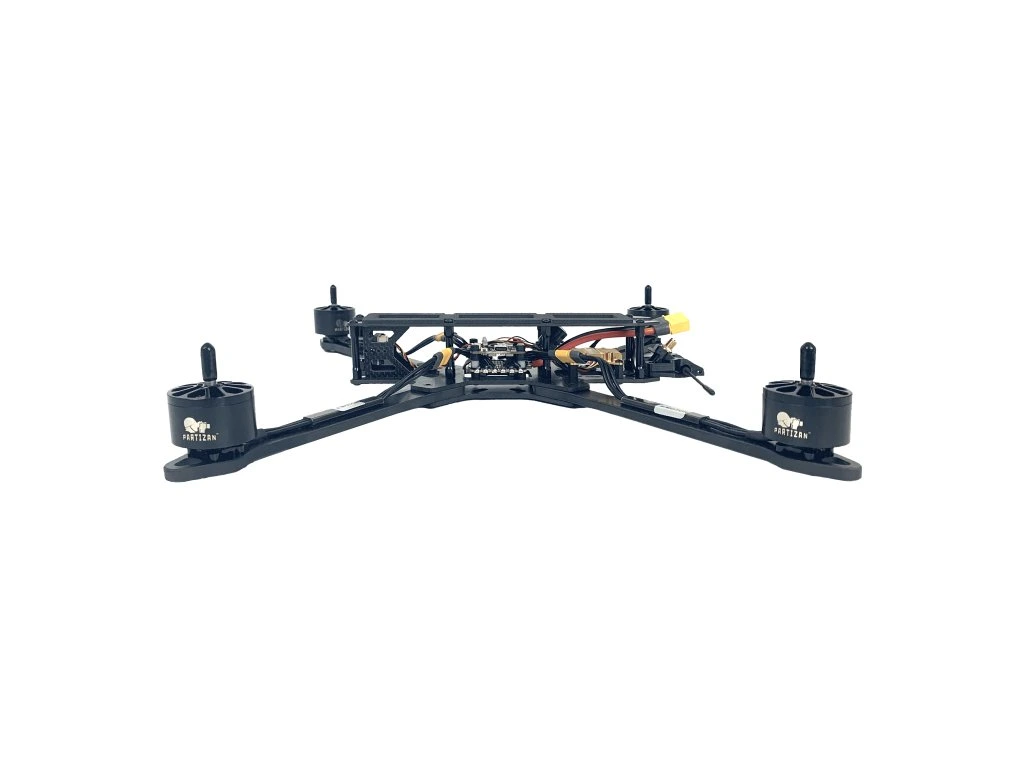

FPV Drone Partizan PT10 TBS 5.8G 2.5W
Dimensions: 374x309x50mm
Weight: 750g
Arm thickness: 6mm
Bottom/top plate thickness: 2mm
Stack: F405 (F4 FC + 60A ESC 4in1)
VTX: 5.8G 2.5W
VTX antenna: Ultra Long 5.8G RHCP SMA 160mm
Motors: Partizan 3115 900kv
Propellers: Gemfan 1050-3
Camera: Caddx Ratel PRO 1500tvl
Gimbal System: None
Receiver: TBS Crossfire
GPS: None
Recommended Battery: 6S 8000Mah Lipo
Flight time with 8000mah battery:
- 38 minutes(no payload)
- 20 minutes(2.5kg payload)
- 15 minutes(3.5kg payload)
MAX Speed: 145km/h
Maximum flight altitude (MSL): 6000m
Maximum rising speed: 15m/s
Stable Working Temperature Range: -20℃~50℃, -4 ° F to 122 °
Payload: up to 3.0kg
| Brand | Partizan |
| Protocol | ELRS 868/915MHz |
| Size | 10-inch |
| Drone type | Long Range |
| Signal Type | Analog |
| Wheelbase | 428mm |
